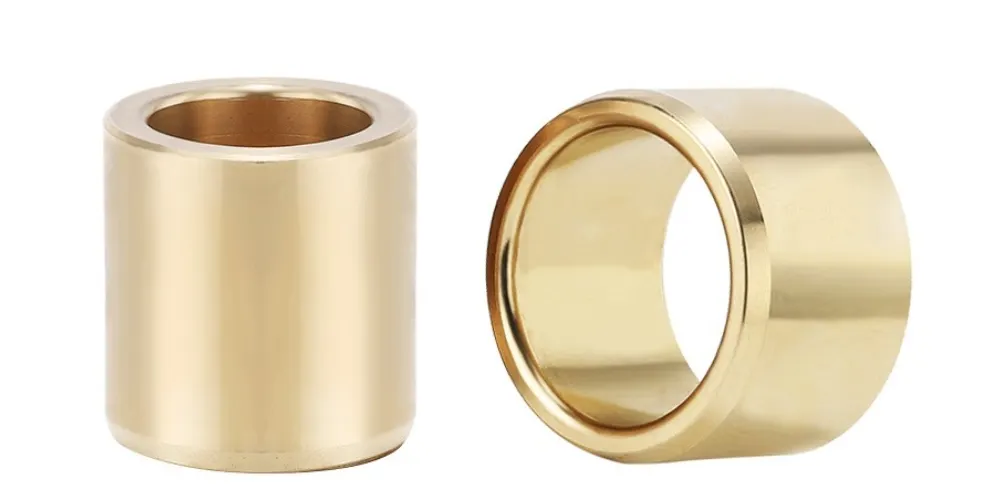

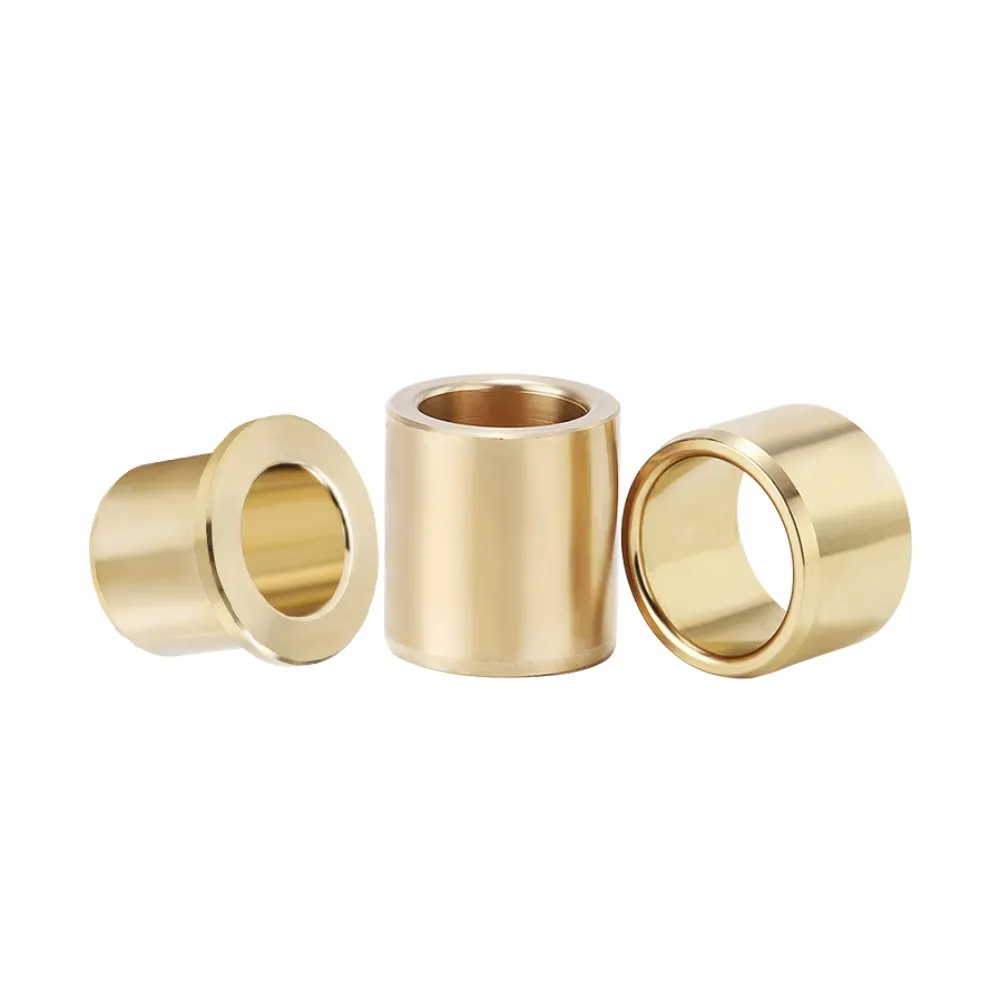

Bronze Guide Bushing
Bronze Guide Bushing is a durable copper alloy component designed for stable sliding motion in mechanical systems. It supports precise alignment while minimizing friction between moving parts. Built for demanding conditions, it performs reliably under continuous load, offering consistent operation, reduced wear, and efficient functionality in industrial machinery and mold applications requiring long-term service stability.
- Material Stability: Maintains structure under pressure
- Smooth Operation: Supports steady sliding motion
- Corrosion Resistance: Performs in harsh environments
- Extended Durability: Ensures long-term usage life
Product Description
Introduction
Bronze Guide Bushing is a high-performance copper alloy component designed to provide smooth and stable sliding guidance in mold systems and industrial machinery. It ensures accurate alignment of moving parts while reducing friction during continuous operation. With its excellent self-lubricating capability, it performs reliably in applications that require long service life and consistent mechanical precision.
Manufactured from premium bronze or copper alloy materials, Bronze Guide Bushing offers excellent wear resistance, anti-seizure properties, and strong load-bearing capacity. Some versions incorporate graphite plugs or solid lubricants to enhance self-lubrication and reduce the need for frequent maintenance. Advanced casting technology combined with precision CNC machining ensures accurate dimensions, smooth surface quality, and stable performance even under heavy-duty working conditions.
Bronze Guide Bushing is widely used in stamping dies, injection molds, heavy machinery, automotive systems, and industrial automation equipment. It is suitable for both standard and customized engineering designs, offering flexible options in size, structure, and lubrication type. Its durability and low-friction performance make it an ideal choice for improving operational efficiency, reducing wear, and ensuring reliable long-term performance in demanding industrial environments.
Specifications
| Item | Description |
|---|---|
| Product Name | Bronze Guide Bushing |
| Material | Bronze / Copper Alloy |
| Type | Self-Lubricating / Graphite Embedded Optional |
| Hardness | HB 60–100 (varies by alloy) |
| Tolerance | ±0.01 mm / Precision Grade Available |
| Inner Diameter | Standard or Customized |
| Outer Diameter | Standard or Customized |
| Length | Customized |
| Surface Finish | Precision Machined / Polished |
| Lubrication | Oil / Graphite / Self-lubricating |
| Manufacturing Process | Casting + CNC Machining + Finishing |
| Customization | OEM / ODM Available |
Three Key Customization Aspects, Tailored to Your Needs
Matching different customization methods to meet various requirements.
Precision Manufacturing, Excellent Quality
Self-Lubricating Function
Bronze Guide Bushing contains natural lubrication properties or graphite inserts, allowing continuous operation without frequent external oiling, reducing maintenance workload and ensuring stable performance in long-term industrial use.
Anti-Seizure Capability
The copper alloy structure prevents metal bonding under high load and friction conditions, ensuring smooth sliding movement and reducing the risk of component locking during operation.
Strong Heat Dissipation
Bronze material provides excellent thermal conductivity, quickly dispersing heat generated during motion, helping maintain stable working conditions and preventing thermal deformation in high-speed applications.
High Load Adaptability
It supports heavy mechanical pressure while maintaining structural integrity, making it suitable for demanding stamping, molding, and industrial machinery environments requiring continuous operation.
Refined Service, Shortened Delivery Time
From design review to delivery, we provide dedicated one-on-one follow-up throughout the entire process.
Consultation → Provide Drawings → Design Review & Quotation → Order Processing → Quality Inspection → On-time Delivery → After-sales Follow-up
Our Advantages
Backed by over 25 years of engineering experience, our team offers comprehensive services—from customized mold design and precision machining to full-scale production—supported by a robust quality assurance system and proactive customer service. Certified under ISO9001, ISO14001, and IATF 16949, we continually strive for excellence in quality, innovation, and customer satisfaction.
Over 100,000 units in stock, with 2-hour shipment for standard products.
Implementing a three-stage inspection system—initial material check, in-process inspection, and final inspection.
Large inventory and quick turnaround, ensuring on-time delivery with 100% product inspection.
Application Range
The preferred choice across various industries.
FAQ
1. What is a Bronze Guide Bushing used for?
It is used in mechanical systems and molds to provide smooth sliding guidance and stable alignment between moving components.
2. Why choose bronze material for guide bushings?
Bronze offers excellent wear resistance, low friction, and good self-lubricating properties, making it ideal for continuous operation.
3. Does Bronze Guide Bushing require lubrication?
Many types are self-lubricating, but additional lubrication can be used depending on load and operating conditions.
4. Where is Bronze Guide Bushing commonly applied?
It is widely used in stamping dies, injection molds, heavy machinery, and industrial automation systems.
5. Can Bronze Guide Bushing be customized?
Yes, it can be customized in size, structure, and lubrication type to meet specific engineering requirements.
