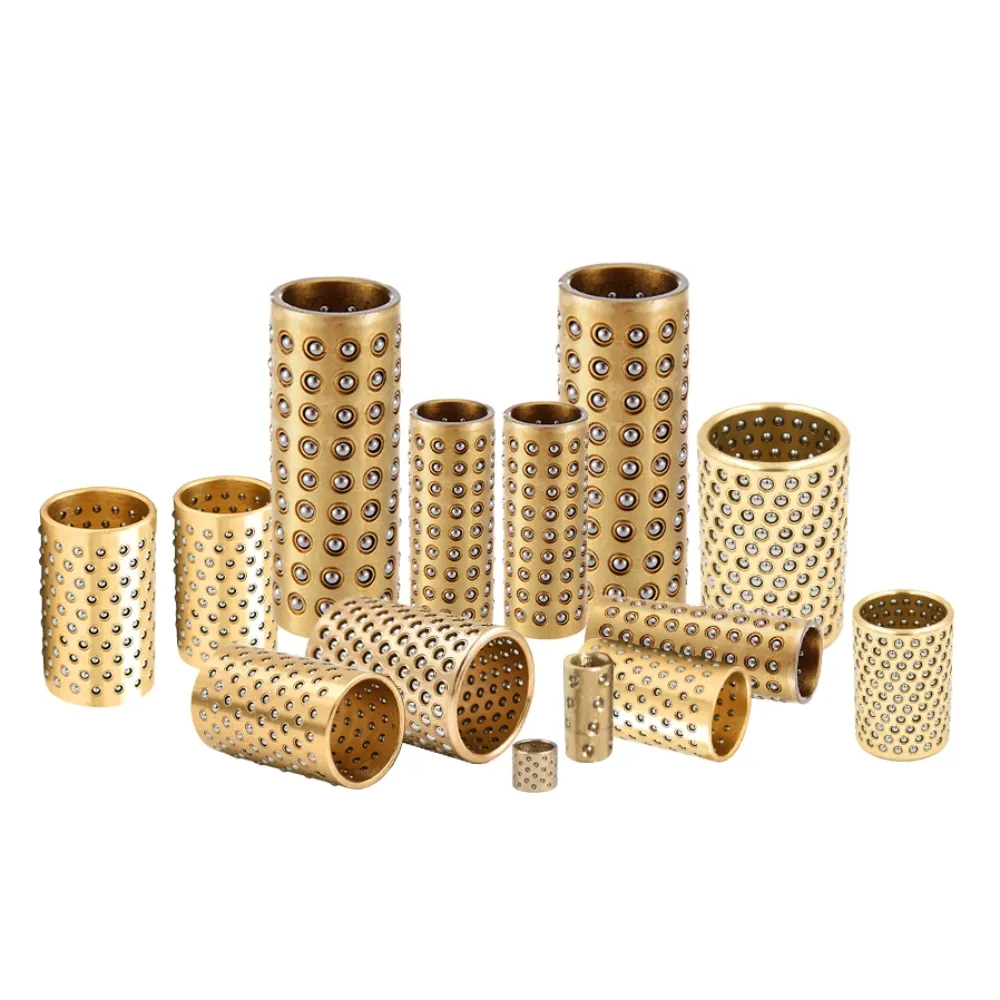

Bronze Retainer Ball Bushing
Bronze Retainer Ball Bushing combines a bronze cage structure with precision bearing balls to achieve efficient linear guidance. It promotes smooth travel, controlled positioning, and reliable motion transmission within mold and automation systems. Designed for precision applications, it helps optimize movement quality, supports continuous operation, and delivers dependable performance in demanding industrial environments.
- Load Balance: Distributes force evenly across balls
- High Responsiveness: Improves motion reaction speed
- Assembly Precision: Ensures accurate component fitting
- Thermal Stability: Maintains performance under heat conditions
Product Description
Introduction

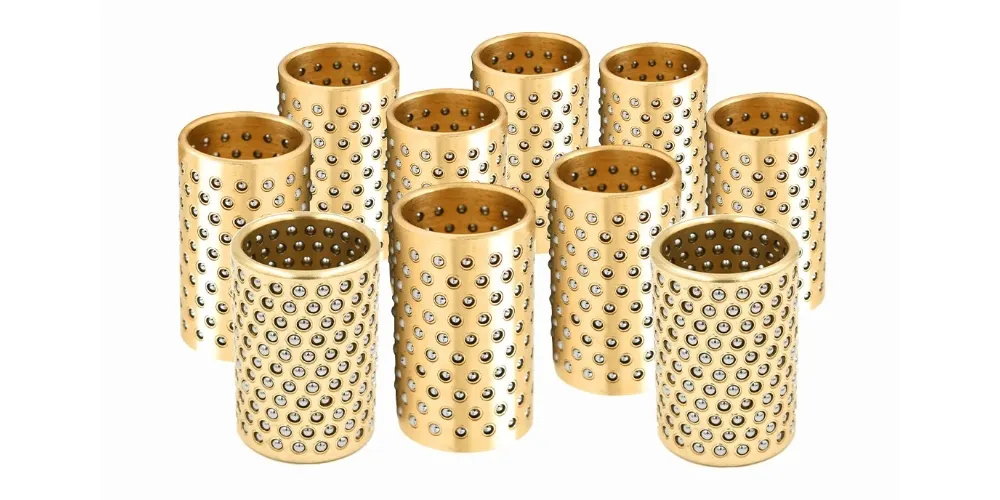

Bronze Retainer Ball Bushing is a high-precision rolling guide component designed to provide smooth linear motion and accurate alignment in mold systems and industrial machinery. It uses a bronze retainer to securely position precision steel balls, allowing stable rolling movement between guide components. This design reduces friction, improves motion accuracy, and ensures reliable performance in high-speed production environments.
Manufactured from high-quality bronze alloy and hardened bearing steel, Bronze Retainer Ball Bushing offers excellent wear resistance, high load capacity, and long service life. Advanced CNC machining, precision grinding, and strict assembly processes ensure tight dimensional tolerances and smooth ball circulation. The rolling ball structure minimizes sliding resistance, enabling efficient motion control and stable operation even under continuous heavy-duty conditions.

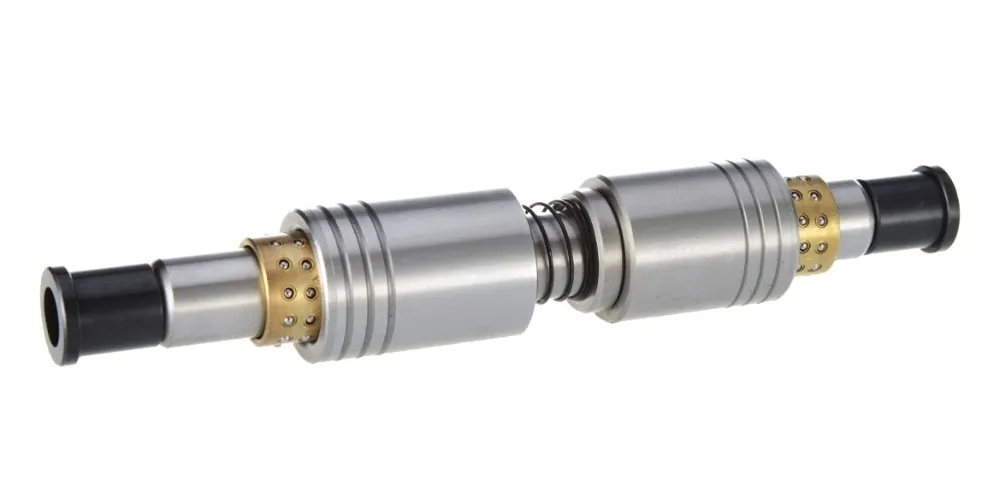

Bronze Retainer Ball Bushing is widely used in stamping dies, injection molds, progressive die systems, automotive manufacturing, electronics production, and industrial automation equipment. It supports both standard and customized designs, including flexible options in size, lubrication method, and structural configuration. Its combination of low friction, high precision, and durable performance makes it an ideal solution for demanding applications requiring consistent alignment, smooth movement, and long-term operational stability in modern industrial environments.
Specifications
| Item | Description |
|---|---|
| Product Name | Bronze Retainer Ball Bushing |
| Structure Type | Bronze Retainer with Steel Balls |
| Material | Bronze Alloy + Bearing Steel |
| Ball Material | Hardened Bearing Steel |
| Hardness | HRC 58–62 |
| Tolerance | ±0.002 mm |
| Inner Diameter | Standard or Customized |
| Outer Diameter | Standard or Customized |
| Length | Customized |
| Surface Finish | Precision Ground |
| Lubrication | Grease / Oil Optional |
| Manufacturing Process | CNC Machining + Grinding + Precision Assembly |
| Customization | OEM / ODM Available |
Three Key Customization Aspects, Tailored to Your Needs
Matching different customization methods to meet various requirements.
Precision Manufacturing, Excellent Quality
Rolling Contact Technology
Bronze Retainer Ball Bushing utilizes precision steel balls to create rolling contact instead of sliding contact, significantly improving movement efficiency and supporting highly responsive linear motion in precision applications.

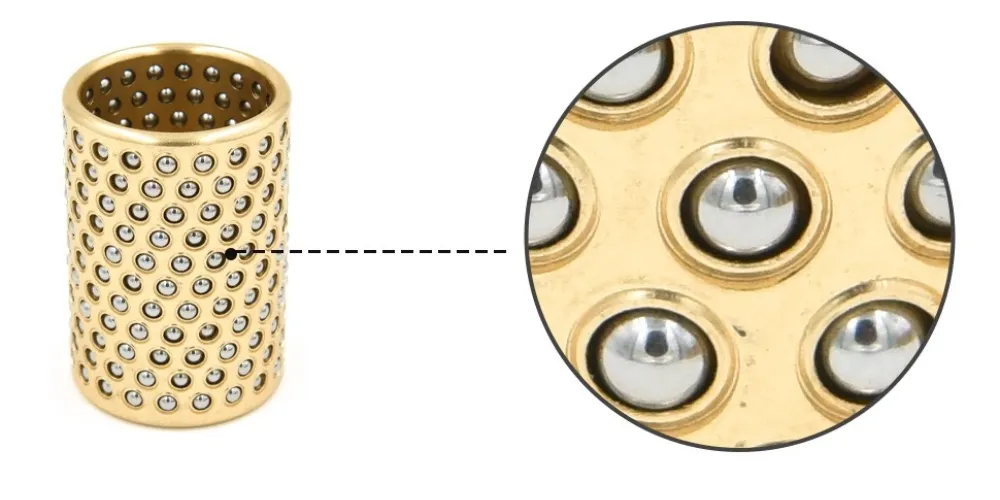

Accurate Ball Retention
The bronze retainer securely separates and guides each ball, ensuring uniform load distribution and maintaining smooth circulation throughout repeated operating cycles.
Reduced Operating Noise
Its rolling mechanism minimizes vibration and mechanical noise during movement, making it suitable for equipment that requires quieter and more controlled operation.
Consistent Motion Performance
The optimized internal structure promotes uniform travel characteristics, helping maintain predictable movement behavior and reliable guiding accuracy during continuous production processes.
Refined Service, Shortened Delivery Time
From design review to delivery, we provide dedicated one-on-one follow-up throughout the entire process.
Consultation → Provide Drawings → Design Review & Quotation → Order Processing → Quality Inspection → On-time Delivery → After-sales Follow-up
Our Advantages
Backed by over 25 years of engineering experience, our team offers comprehensive services—from customized mold design and precision machining to full-scale production—supported by a robust quality assurance system and proactive customer service. Certified under ISO9001, ISO14001, and IATF 16949, we continually strive for excellence in quality, innovation, and customer satisfaction.
Over 100,000 units in stock, with 2-hour shipment for standard products.
Implementing a three-stage inspection system—initial material check, in-process inspection, and final inspection.
Large inventory and quick turnaround, ensuring on-time delivery with 100% product inspection.
Application Range
The preferred choice across various industries.
FAQ
1. What is a Bronze Retainer Ball Bushing used for?
It is used in mold systems and industrial machinery to provide low-friction rolling guidance and precise linear motion.
2. How does a Bronze Retainer Ball Bushing work?
It uses steel balls held by a bronze retainer to convert sliding friction into rolling motion, improving efficiency and accuracy.
3. What materials are used in Bronze Retainer Ball Bushing?
It is typically made from bronze alloy retainers and hardened steel balls for durability and wear resistance.
4. Where is Bronze Retainer Ball Bushing commonly applied?
It is widely used in stamping dies, injection molds, automation equipment, and precision mechanical systems.
5. Can Bronze Retainer Ball Bushing be customized?
Yes, it can be customized in size, structure, lubrication type, and tolerance based on specific application requirements.
