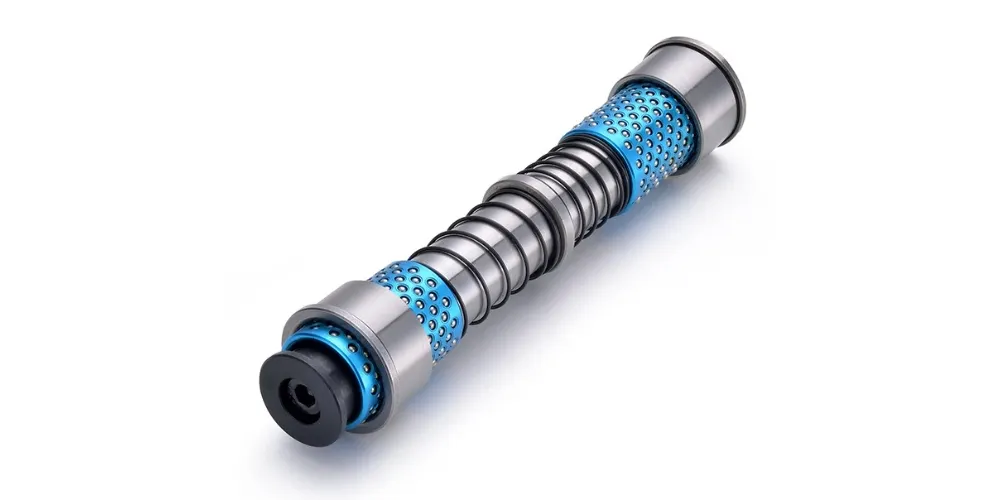

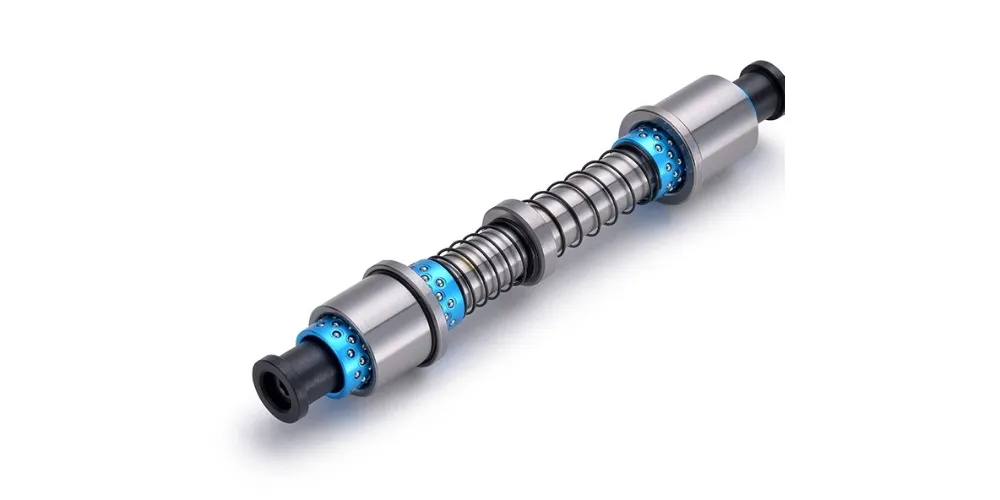

Cross Ball Guide Pillar
Cross Ball Guide Pillar is designed for precision die systems that require smooth rolling guidance and accurate plate movement. Its ball-guided structure reduces sliding resistance, allowing faster and more stable operation during repeated stamping cycles. Manufactured from hardened bearing steel with precision-ground surfaces, it offers excellent strength, wear resistance, and dimensional reliability. This component is suitable for high-speed tooling, progressive dies, and precision mold assemblies where low friction, stable guidance, and long service life are required.
- Rolling Contact Reduces Motion Resistance: Improves smoother die movement.
- High Speed Die Guidance Support: Fits rapid stamping production.
- Stable Accuracy Over Long Runs: Maintains dependable positioning performance.
- Custom Sizes For Tooling Needs: Matches different die requirements.
Product Description
Introduction
Cross Ball Guide Pillar is a precision guiding component used in stamping dies, progressive dies, punch dies, and high-accuracy mold guiding systems. Designed with a ball-guided structure, it helps provide smooth linear movement, accurate die plate alignment, and stable operation during repeated production cycles. Compared with conventional sliding guide systems, the ball guidance design helps reduce friction and supports faster, more responsive tooling movement.
Manufactured from high-quality bearing steel such as SUJ2 or GCr15, the Cross Ball Guide Pillar is processed through precision machining, heat treatment, grinding, and polishing. These production steps help achieve high hardness, excellent dimensional accuracy, smooth surface quality, and strong wear resistance. The product is suitable for standard die structures, and non-standard sizes can be produced according to customer drawings or specific tooling requirements.
Cross Ball Guide Pillars are widely used in precision stamping dies, electronic component molds, automotive hardware tooling, metal forming dies, progressive die assemblies, and custom mold systems. They are especially suitable for applications requiring low-friction motion, high positioning accuracy, and long-term operational stability. With standard stock options and OEM customization support, they provide a reliable guiding solution for demanding industrial die and mold
Specifications
| Parameter | Specification |
|---|---|
| Product Name | Cross Ball Guide Pillar |
| Material | SUJ2 / GCr15 Bearing Steel |
| Surface Finish | Precision Ground & Polished |
| Hardness | HRC 58-62 |
| Diameter Range | Ø8 mm – Ø60 mm |
| Length Range | 40 mm – 500 mm |
| Guiding Type | Ball Bearing Guidance |
| Structure Type | Cross Ball Guide Design |
| Straightness | ≤0.005 mm/100 mm |
| Surface Treatment | Hard Chrome Optional |
| Installation Type | Press Fit / Custom Mounting |
| Precision Grade | High Precision |
| Operating Condition | Continuous Stamping Operation |
| Service Life | Long-Term Industrial Use |
| Customization | Standard Stock / OEM Drawing Available |
Three Key Customization Aspects, Tailored to Your Needs
Matching different customization methods to meet various requirements.
Precision Manufacturing, Excellent Quality
Ball-Assisted Movement Stability
The rolling contact structure helps maintain stable movement under rapid die operation, reducing sliding resistance and supporting smoother response during precision stamping work cycles consistently.
Improved High-Speed Response
Designed for fast production environments, it supports quick die plate movement while helping maintain reliable guidance accuracy during frequent opening and closing actions in operation.
Lower Operating Heat Generation
Rolling ball contact helps reduce frictional heat during continuous motion, supporting more stable performance and protecting related tooling components from excessive temperature stress over time.
Better Long-Term Guiding Precision
Precision matching between balls, guide pillar, and retainer helps maintain accurate travel paths, reducing deviation and supporting dependable results across extended production runs and schedules.
Refined Service, Shortened Delivery Time
From design review to delivery, we provide dedicated one-on-one follow-up throughout the entire process.
Consultation → Provide Drawings → Design Review & Quotation → Order Processing → Quality Inspection → On-time Delivery → After-sales Follow-up
Our Advantages
Backed by over 25 years of engineering experience, our team offers comprehensive services—from customized mold design and precision machining to full-scale production—supported by a robust quality assurance system and proactive customer service. Certified under ISO9001, ISO14001, and IATF 16949, we continually strive for excellence in quality, innovation, and customer satisfaction.
Over 100,000 units in stock, with 2-hour shipment for standard products.
Implementing a three-stage inspection system—initial material check, in-process inspection, and final inspection.
Large inventory and quick turnaround, ensuring on-time delivery with 100% product inspection.
Application Range
The preferred choice across various industries.
FAQ
What is a Cross Ball Guide Pillar?
A Cross Ball Guide Pillar is a precision guiding component used in stamping dies, progressive dies, and punch dies. It uses ball-guided movement to support accurate die plate alignment and smooth operation.
What is the function of a Cross Ball Guide Pillar?
Its main function is to provide low-friction guidance between moving die components, helping improve movement accuracy, reduce resistance, and maintain stable positioning during stamping cycles.
What materials are commonly used for Cross Ball Guide Pillars?
Cross Ball Guide Pillars are commonly made from SUJ2 or GCr15 bearing steel, offering high hardness, strong wear resistance, and reliable durability for long-term tooling use.
Can Cross Ball Guide Pillars be customized?
Yes. Custom diameters, lengths, tolerances, surface treatments, and special structures can be produced according to customer drawings or specific die design requirements.
Where are Cross Ball Guide Pillars commonly used?
They are widely used in precision stamping dies, progressive dies, punch dies, electronic component tooling, automotive hardware molds, and high-speed industrial die systems.
