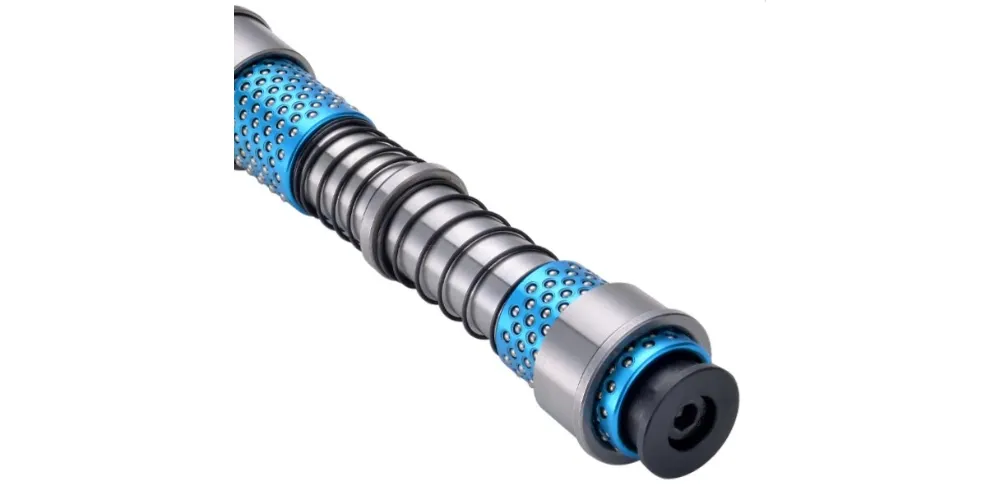

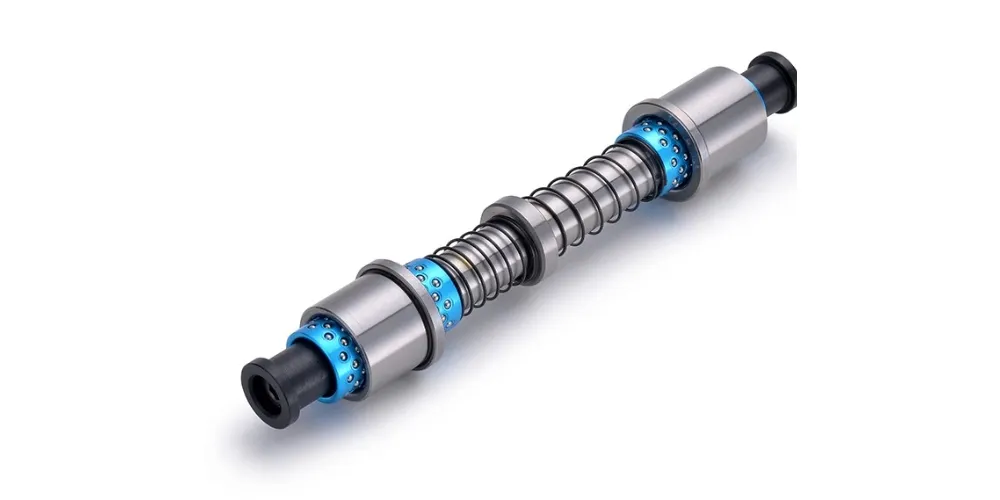

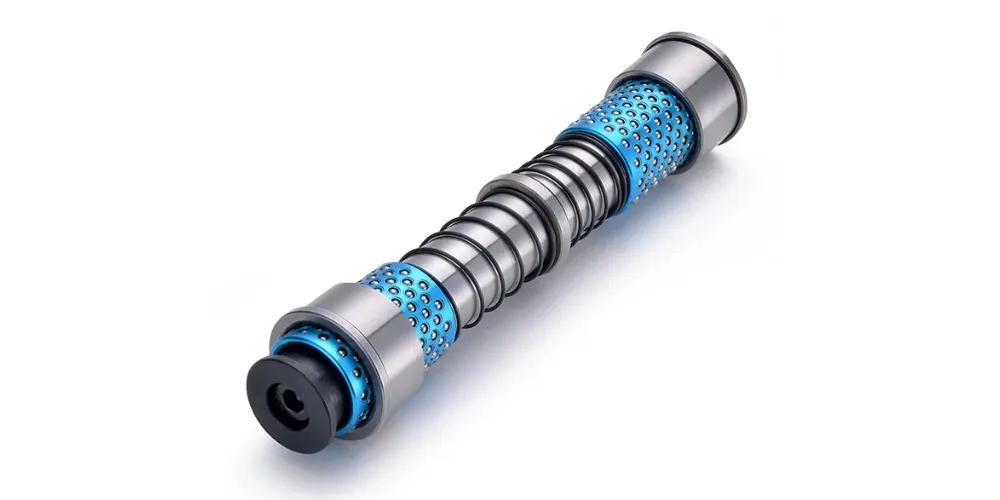

Cross Guide Pillar
Cross Guide Pillar is developed for accurate guiding and positioning in stamping dies, punch tools, and precision mold assemblies. Its cross-type structure supports stable die plate movement while helping reduce deviation during repeated operation. Made from hardened bearing steel and finished with precision grinding, it provides dependable strength, surface smoothness, and wear resistance. This component is suitable for standard and customized tooling systems that require reliable alignment, efficient maintenance, and consistent performance in long-term industrial production.
- Balanced Force Distribution: Reduces uneven stress during die operation.
- Quick Replacement And Setup: Saves maintenance time for tooling systems.
- Stable Fit In Die Plates: Improves assembly accuracy and working reliability.
- Works With Custom Tooling: Supports special mold design requirements.
Product Description
Introduction
Cross Guide Pillar is a precision guiding component used in stamping dies, punch dies, progressive dies, and mold guiding systems. It is designed to provide accurate positioning and stable movement between die plates during repeated production cycles. The cross-style guide structure helps improve alignment reliability, reduce movement deviation, and support consistent tooling performance in precision metal forming and mold applications.
Manufactured from high-quality bearing steel such as SUJ2 or GCr15, the Cross Guide Pillar is processed through CNC machining, heat treatment, precision grinding, and polishing. These processes help achieve high hardness, excellent dimensional stability, smooth surface quality, and strong wear resistance. The component is suitable for standard mold structures, while special sizes and non-standard designs can also be produced according to customer drawings or tooling requirements.
Cross Guide Pillars are widely used in automotive hardware dies, electronic component stamping dies, precision punch tools, progressive die assemblies, industrial forming molds, and customized mold systems. They are suitable for applications requiring accurate guidance, compact installation, stable plate movement, and long service life. With standard stock options and OEM customization support, they provide reliable guiding solutions for high-precision industrial tooling production.
Specifications
| Parameter | Specification |
|---|---|
| Product Name | Cross Guide Pillar |
| Material | SUJ2 / GCr15 Bearing Steel |
| Surface Finish | Precision Ground & Polished |
| Hardness | HRC 58-62 |
| Diameter Range | Ø8 mm – Ø60 mm |
| Length Range | 40 mm – 500 mm |
| Guiding Type | Die Plate Guidance |
| Structure Type | Cross Guide Design |
| Straightness | ≤0.005 mm/100 mm |
| Surface Treatment | Hard Chrome Optional |
| Installation Type | Press Fit / Custom Mounting |
| Precision Grade | High Precision |
| Operating Condition | Continuous Stamping Operation |
| Service Life | Long-Term Industrial Use |
| Customization | Standard Stock / OEM Drawing Available |
Three Key Customization Aspects, Tailored to Your Needs
Matching different customization methods to meet various requirements.
Precision Manufacturing, Excellent Quality
Enhanced Die Assembly Balance
The cross guide structure helps distribute guiding forces evenly, improving die assembly balance and supporting stable operation during repeated stamping and forming processes.
Reliable Positioning Under Load
Designed to maintain accurate positioning when working under pressure, helping reduce tooling offset and improve consistency in demanding production environments.
Efficient Standard Part Replacement
Standardized dimensions make replacement and maintenance more convenient, helping reduce downtime when servicing stamping dies, punch dies, or mold assemblies.
Strong Adaptability For Tooling
Suitable for different die structures and production requirements, offering flexible use in standard molds, customized tooling, and precision industrial applications.
Refined Service, Shortened Delivery Time
From design review to delivery, we provide dedicated one-on-one follow-up throughout the entire process.
Consultation → Provide Drawings → Design Review & Quotation → Order Processing → Quality Inspection → On-time Delivery → After-sales Follow-up
Our Advantages
Backed by over 25 years of engineering experience, our team offers comprehensive services—from customized mold design and precision machining to full-scale production—supported by a robust quality assurance system and proactive customer service. Certified under ISO9001, ISO14001, and IATF 16949, we continually strive for excellence in quality, innovation, and customer satisfaction.
Over 100,000 units in stock, with 2-hour shipment for standard products.
Implementing a three-stage inspection system—initial material check, in-process inspection, and final inspection.
Large inventory and quick turnaround, ensuring on-time delivery with 100% product inspection.
Application Range
The preferred choice across various industries.
FAQ
What is a Cross Guide Pillar?
A Cross Guide Pillar is a precision guiding component used in stamping dies, punch dies, progressive dies, and mold assemblies to support accurate plate movement and alignment.
What is the function of a Cross Guide Pillar?
Its main function is to guide die plates during repeated operation, helping reduce movement deviation, improve positioning accuracy, and maintain stable tooling performance.
What materials are commonly used for Cross Guide Pillars?
Cross Guide Pillars are commonly manufactured from SUJ2 or GCr15 bearing steel, providing high hardness, strong wear resistance, and reliable long-term durability.
Can Cross Guide Pillars be customized?
Yes. Custom diameters, lengths, tolerances, surface treatments, and special structures can be produced according to customer drawings or specific tooling requirements.
Where are Cross Guide Pillars commonly used?
They are widely used in metal stamping dies, progressive dies, precision punch dies, automotive hardware tooling, electronic component molds, and industrial die systems.
