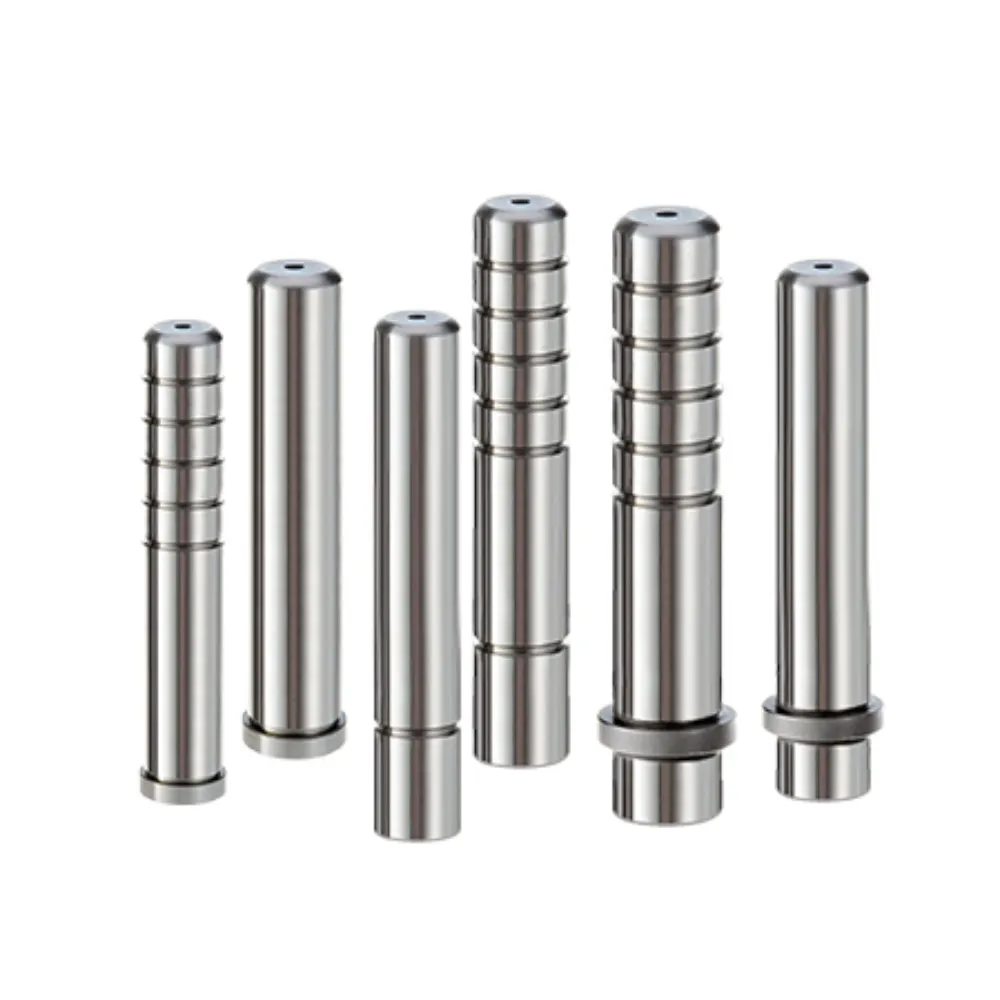

Ejector Plate Guide Pillar
The ejector plate guide pillar is a key positioning element used in mold ejection systems to maintain controlled movement of ejector components. It ensures accurate alignment between moving plates during each molding cycle, supporting stable operation in injection molding equipment. Made from heat-treated alloy steel, it provides reliable structural strength and consistent performance under repeated stress. Its precision-finished surface helps reduce friction and supports efficient operation in automated industrial production environments requiring long-term stability.
- Precise Vertical Movement Guidance System: Ensures stable ejector plate trajectory control
- High Structural Rigidity Performance: Maintains strength under continuous operational stress
- Minimized Friction Contact Interface: Reduces wear during repetitive mold cycles
- Consistent Long Term Alignment: Guarantees stable positioning accuracy over time
Product Description
Introduction
The ejector plate guide pillar is a precision-engineered mold component used to ensure accurate alignment and controlled movement of ejector and stripper plates in injection molding systems. It plays a key role in maintaining stability during mold opening and closing cycles, helping the ejector mechanism operate smoothly and consistently. This makes it an essential part of high-precision mold assemblies used in modern manufacturing environments.
Manufactured from hardened alloy steel with fine grinding processes, the ejector plate guide pillar offers excellent strength, wear resistance, and dimensional stability. Its smooth surface reduces friction between moving components, minimizing mechanical wear and improving the efficiency of mold operation. The robust structure ensures reliable performance even under high-speed and high-load production conditions, making it suitable for continuous industrial use.
The ejector plate guide pillar can be customized in diameter, length, and tolerance to meet specific mold design requirements. It is compatible with international standards such as ISO, DIN, and JIS, and can also be produced according to OEM drawings. Widely used in injection molds, automotive plastic parts, and precision industrial tooling systems, it provides stable guiding performance and long service life in demanding production applications.
Specifications
| Item | Description |
|---|---|
| Product Name | Ejector Plate Guide Pillar |
| Type | Mold Guide Post |
| Material | SUJ2 / GCr15 / 100Cr6 / SKD steel |
| Hardness | HRC 58–62 |
| Surface Treatment | Precision grinding / heat treatment |
| Straightness | ≤ 0.005 mm |
| Roundness | ≤ 0.003 mm |
| Concentricity | ≤ 0.01 mm |
| Length Range | 100 mm – 1000 mm (customizable) |
| Tolerance | ISO / DIN standard or OEM drawing |
Three Key Customization Aspects, Tailored to Your Needs
Matching different customization methods to meet various requirements.
Precision Manufacturing, Excellent Quality
Stable Ejection Alignment Control
Ensures accurate positioning of ejector plates throughout mold cycles, maintaining consistent movement accuracy and reducing misalignment risks during repeated high-speed injection molding operations.
Improved Mechanical Load Distribution
Evenly distributes operational forces across guiding surfaces, reducing localized stress concentration and enhancing structural stability under continuous mold working conditions.
Enhanced Surface Wear Protection
Precision grinding and heat treatment improve surface hardness, reducing abrasion damage and maintaining long-term durability in high-friction mold environments.
Optimized Mold Operation Efficiency
Supports smoother ejector plate movement, reducing resistance and helping shorten cycle time in automated injection molding production systems.
Refined Service, Shortened Delivery Time
From design review to delivery, we provide dedicated one-on-one follow-up throughout the entire process.
Consultation → Provide Drawings → Design Review & Quotation → Order Processing → Quality Inspection → On-time Delivery → After-sales Follow-up
Our Advantages
Backed by over 25 years of engineering experience, our team offers comprehensive services—from customized mold design and precision machining to full-scale production—supported by a robust quality assurance system and proactive customer service. Certified under ISO9001, ISO14001, and IATF 16949, we continually strive for excellence in quality, innovation, and customer satisfaction.
Over 100,000 units in stock, with 2-hour shipment for standard products.
Implementing a three-stage inspection system—initial material check, in-process inspection, and final inspection.
Large inventory and quick turnaround, ensuring on-time delivery with 100% product inspection.
Application Range
The preferred choice across various industries.
FAQ
Q1: What is an ejector plate guide pillar used for?
It is used to guide and support ejector plates in injection molds, ensuring precise and stable movement during mold opening and closing.
Q2: What materials are used for this product?
It is typically made from hardened steel such as GCr15, SUJ2, or 100Cr6, offering high strength and wear resistance.
Q3: Can it be customized?
Yes, diameter, length, tolerance, and surface treatment can be customized according to different mold design requirements.
Q4: Is it compatible with international standards?
Yes, it is compatible with ISO, DIN, and JIS standards and can match most global mold base systems.
Q5: Where is it commonly used?
It is widely used in injection molding, automotive parts production, precision molds, and industrial automation systems.
