General Guide Bushing

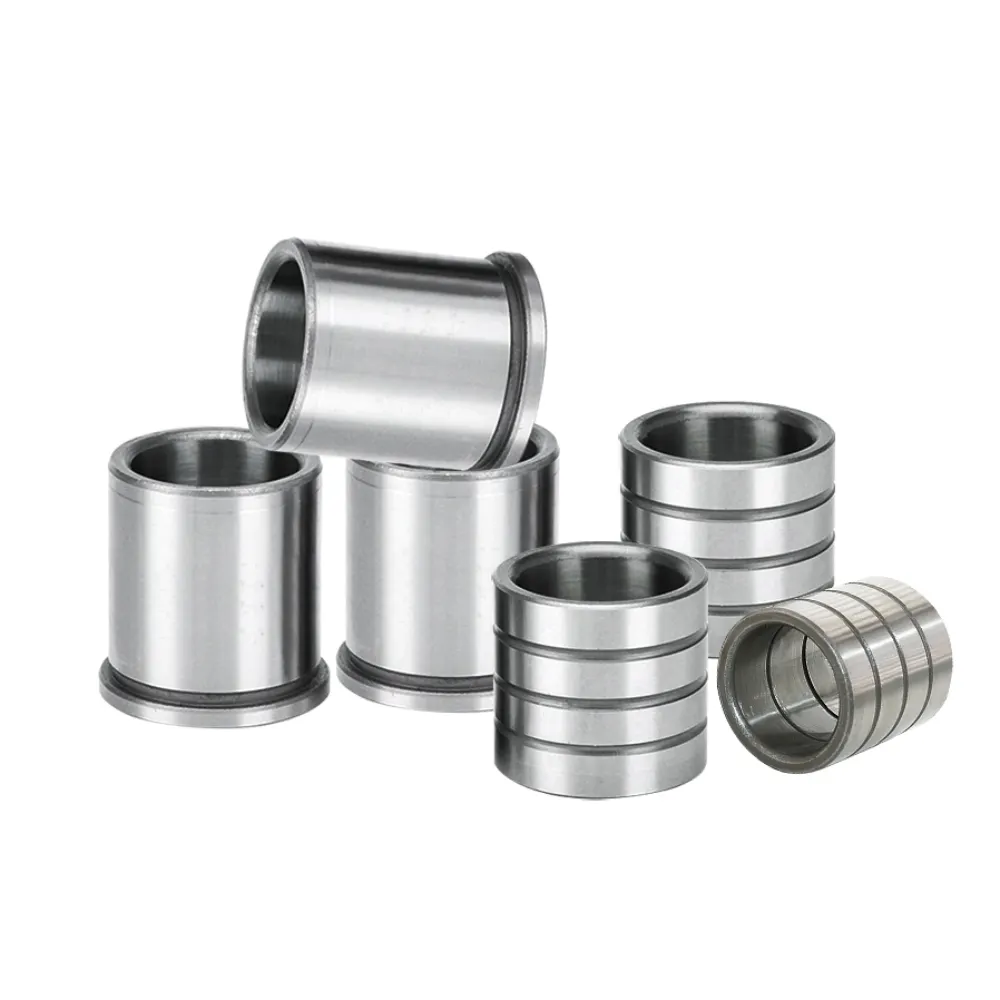

General Guide Bushing is a standardized mold guiding component designed to support accurate movement between die parts. It helps ensure consistent alignment during forming operations and improves the overall stability of mold systems. Suitable for industrial production, it offers reliable performance, easy integration, and steady operation across various stamping and injection molding applications.
- Interchangeability: Fits multiple mold systems
- Load Stability: Maintains balance under pressure
- Installation Ease: Simplifies assembly process
- Operational Consistency: Ensures steady performance
Product Description
Introduction
General Guide Bushing is a standard mold component designed to provide precise alignment and stable guiding performance in stamping dies and injection mold systems. It ensures accurate positioning between guide pillars and mold plates during repetitive opening and closing cycles, helping maintain consistent motion accuracy and improving overall production stability. Its universal design allows easy integration into a wide range of standard mold assemblies.
Manufactured from high-quality bearing steel or hardened tool steel, General Guide Bushing offers excellent wear resistance, high rigidity, and long service life. Advanced CNC machining, precision grinding, and controlled heat treatment processes ensure tight dimensional tolerances up to ±0.002 mm. The finely polished inner surface reduces friction between moving parts, enabling smooth and reliable guiding performance even under continuous high-speed and heavy-load operating conditions.
General Guide Bushing is widely used in stamping dies, injection molds, progressive die systems, and industrial automation equipment. It is suitable for both standard and interchangeable mold bases, offering flexible compatibility with various tooling systems. Its stable performance, durable structure, and high precision make it an essential component for improving efficiency, reducing maintenance needs, and ensuring long-term reliability in modern industrial manufacturing environments.
Specifications
| Item | Description |
|---|---|
| Product Name | General Guide Bushing |
| Material | Bearing Steel / Hardened Tool Steel |
| Hardness | HRC 58–62 |
| Tolerance | ±0.002 mm |
| Inner Diameter | Standard or Customized |
| Outer Diameter | Standard or Customized |
| Length | Customized |
| Surface Finish | Precision Ground / Polished |
| Lubrication Type | Oil Groove Optional |
| Manufacturing Process | CNC Machining + Grinding + Heat Treatment |
| Customization | OEM / ODM Available |
Three Key Customization Aspects, Tailored to Your Needs
Matching different customization methods to meet various requirements.
Precision Manufacturing, Excellent Quality
Easy Standard Replacement
General Guide Bushing follows universal sizing principles, allowing quick replacement across different mold systems without complex adjustments, improving maintenance efficiency and reducing downtime in production environments.
Stable Position Control
It ensures consistent alignment between mold components during repetitive operations, helping maintain precise positioning accuracy and reducing deviation in high-frequency stamping and molding cycles.
Enhanced Structural Rigidity
Manufactured with hardened steel materials, it maintains strong structural integrity under continuous load, supporting reliable performance in demanding industrial applications.
Optimized Surface Finish
Precision grinding creates a smooth internal surface that minimizes contact resistance, improving movement efficiency and supporting stable guiding performance over extended operation periods.
Refined Service, Shortened Delivery Time
From design review to delivery, we provide dedicated one-on-one follow-up throughout the entire process.
Consultation → Provide Drawings → Design Review & Quotation → Order Processing → Quality Inspection → On-time Delivery → After-sales Follow-up
Our Advantages
Backed by over 25 years of engineering experience, our team offers comprehensive services—from customized mold design and precision machining to full-scale production—supported by a robust quality assurance system and proactive customer service. Certified under ISO9001, ISO14001, and IATF 16949, we continually strive for excellence in quality, innovation, and customer satisfaction.
Over 100,000 units in stock, with 2-hour shipment for standard products.
Implementing a three-stage inspection system—initial material check, in-process inspection, and final inspection.
Large inventory and quick turnaround, ensuring on-time delivery with 100% product inspection.
Application Range
The preferred choice across various industries.
