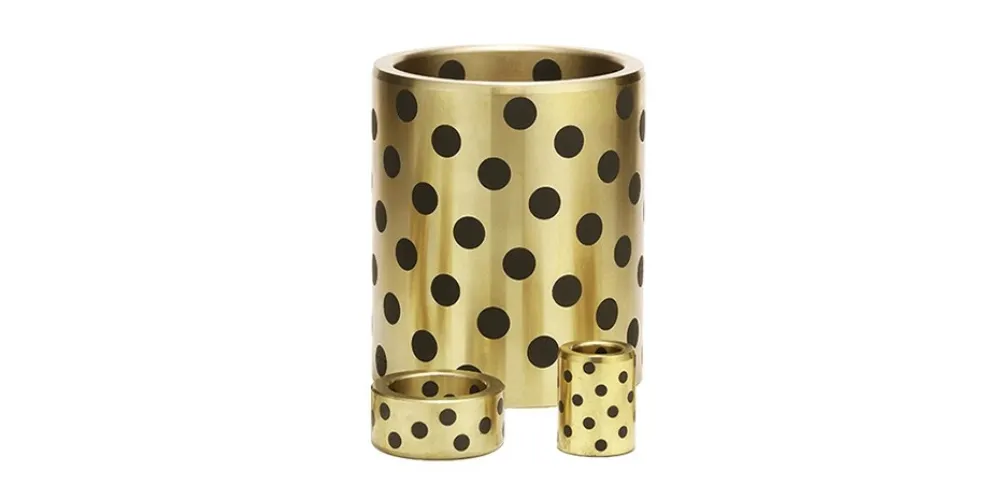

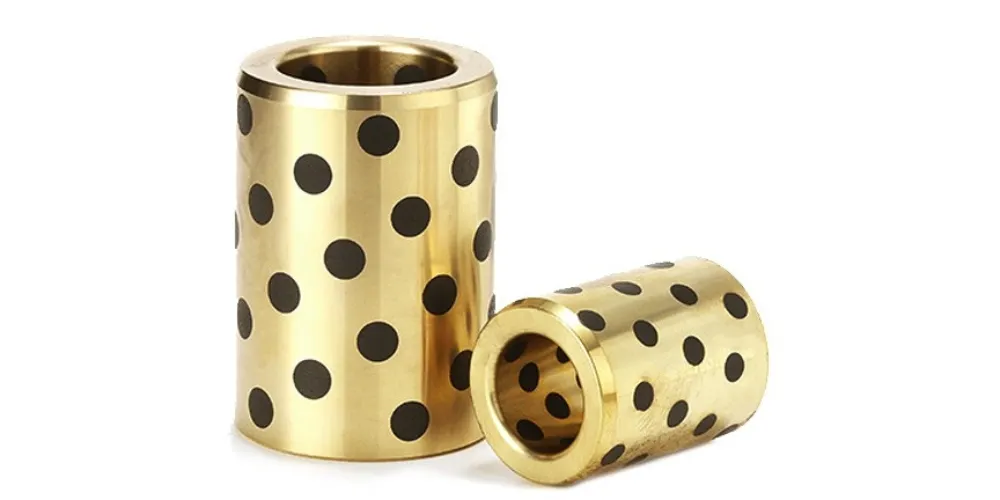

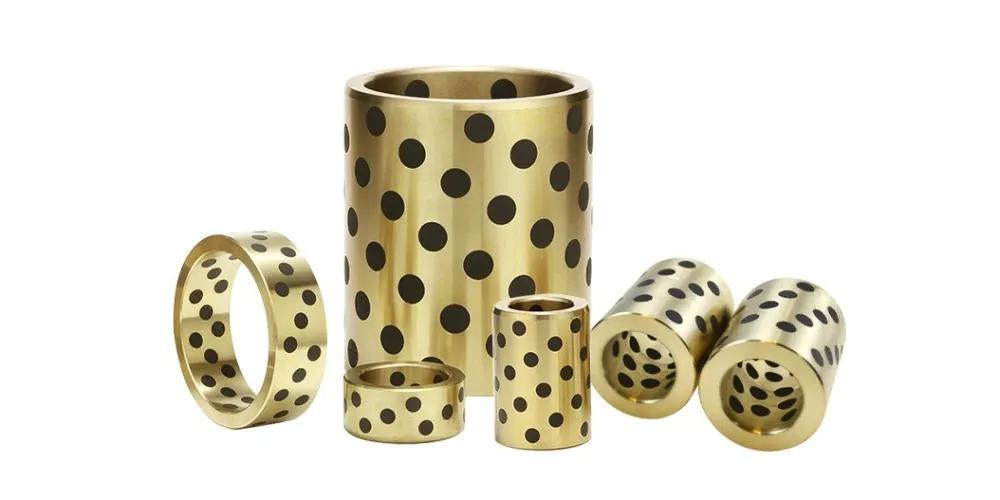

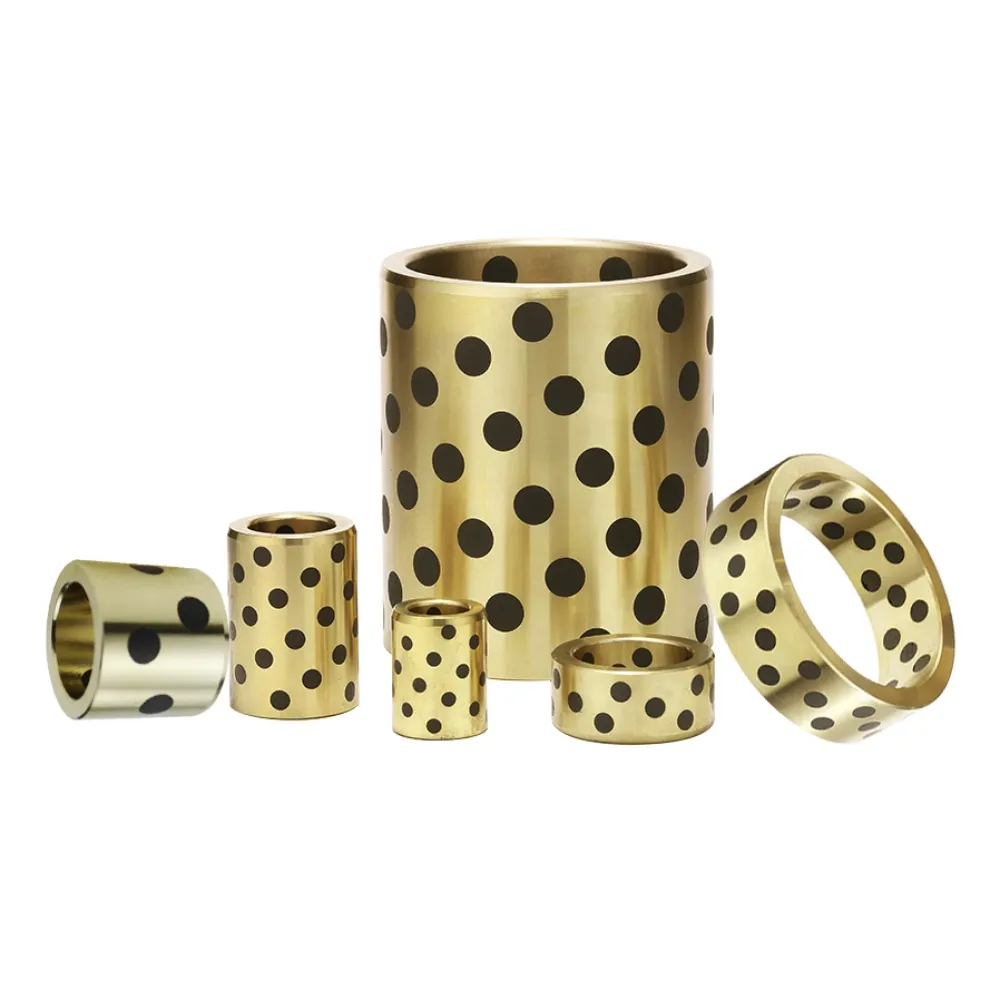

Graphite Bronze Guide Bushing
Graphite Bronze Guide Bushing is a maintenance-free guiding element designed for molds and mechanical systems. It combines bronze strength with embedded graphite lubrication to ensure smooth motion without external oil. The structure supports continuous operation, reduces friction wear, and improves stability in demanding industrial environments with long-term reliability.
- Self-Adjusting Lubrication Flow: adapts lubrication during operation cycles
- High Impact Resistance Structure: withstands sudden load shocks effectively
- Reduced Surface Adhesion Risk: prevents sticking between moving parts
- Extended Service Interval Stability: maintains performance over long periods
Product Description
Introduction
Graphite Bronze Guide Bushing is a self-lubricating precision component designed for guiding systems in molds, dies, and industrial machinery. It uses high-strength bronze as the base material, combined with evenly distributed graphite plugs that provide continuous lubrication during operation. This structure eliminates the need for external oil supply and ensures stable, low-friction movement between guide pillars and bushings, improving overall equipment efficiency.
The bushing is manufactured through precision casting, machining, and finishing processes to achieve high dimensional accuracy and reliable mechanical strength. The embedded graphite lubrication points release lubricant gradually during operation, forming a consistent lubrication film on the contact surface. This significantly reduces wear, prevents seizure under high load conditions, and extends service life even in demanding continuous production environments.
Graphite Bronze Guide Bushing is widely used in injection molds, stamping dies, die-casting systems, and automated machinery. It is especially suitable for applications where regular maintenance is difficult or lubrication conditions are limited. With compatibility for MISUMI, HASCO, DME, DIN, and ISO standards, it can also be customized according to drawings or special requirements, making it a reliable solution for high-performance industrial guiding systems.
Specifications
| Item | Description |
|---|---|
| Product Name | Graphite Bronze Guide Bushing |
| Material | CuSn8 / CuAl10Ni5Fe4 Bronze |
| Lubrication Type | Solid graphite plug self-lubrication |
| Structure | Straight type / Flanged type / Shoulder type |
| Hardness | HB 70–120 (depending on alloy) |
| Surface Finish | Precision machined + graphite inserts |
| Lubrication Method | Oil-free (dry running) |
| Working Load | High load and continuous operation suitable |
| Custom Size | Available according to drawings |
Three Key Customization Aspects, Tailored to Your Needs
Matching different customization methods to meet various requirements.
Precision Manufacturing, Excellent Quality
Dry Running Capability
Graphite inserts enable continuous operation without external lubrication, ensuring stable performance in environments where oil supply is impractical or maintenance access is limited.
Anti-Seizure Performance
Solid lubricant distribution prevents metal-to-metal contact, effectively reducing the risk of sticking or locking during heavy load and continuous motion conditions.
Improved Load Absorption
Bronze base structure provides strong mechanical support, allowing the bushing to handle high radial loads while maintaining structural integrity under repeated stress cycles.
Stable Self-Lubrication Output
Graphite particles release lubricant gradually during operation, maintaining consistent lubrication performance and reducing sudden friction changes throughout long production runs.
Refined Service, Shortened Delivery Time
From design review to delivery, we provide dedicated one-on-one follow-up throughout the entire process.
Consultation → Provide Drawings → Design Review & Quotation → Order Processing → Quality Inspection → On-time Delivery → After-sales Follow-up
Our Advantages
Backed by over 25 years of engineering experience, our team offers comprehensive services—from customized mold design and precision machining to full-scale production—supported by a robust quality assurance system and proactive customer service. Certified under ISO9001, ISO14001, and IATF 16949, we continually strive for excellence in quality, innovation, and customer satisfaction.
Over 100,000 units in stock, with 2-hour shipment for standard products.
Implementing a three-stage inspection system—initial material check, in-process inspection, and final inspection.
Large inventory and quick turnaround, ensuring on-time delivery with 100% product inspection.
Application Range
The preferred choice across various industries.
FAQ
1. What is a Graphite Bronze Guide Bushing?
It is a self-lubricating bushing made of bronze with embedded graphite plugs, used to guide moving parts in molds and machinery.
2. How does the self-lubrication work?
Graphite inserts gradually release lubrication during operation, forming a low-friction layer between the bushing and the guide pillar.
3. Does it require oil or grease maintenance?
No, it is designed for oil-free operation, reducing maintenance needs and making it suitable for hard-to-service environments.
4. Where is this product commonly used?
It is widely used in injection molds, stamping dies, die casting systems, and industrial automation equipment.
5. Can it be customized?
Yes, we offer custom sizes, structures, and materials based on drawings or specific application requirements.
