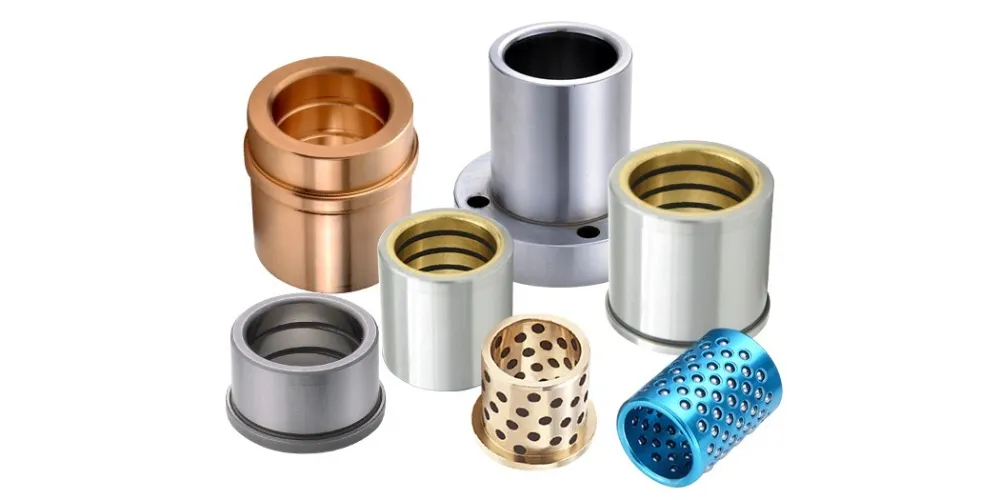

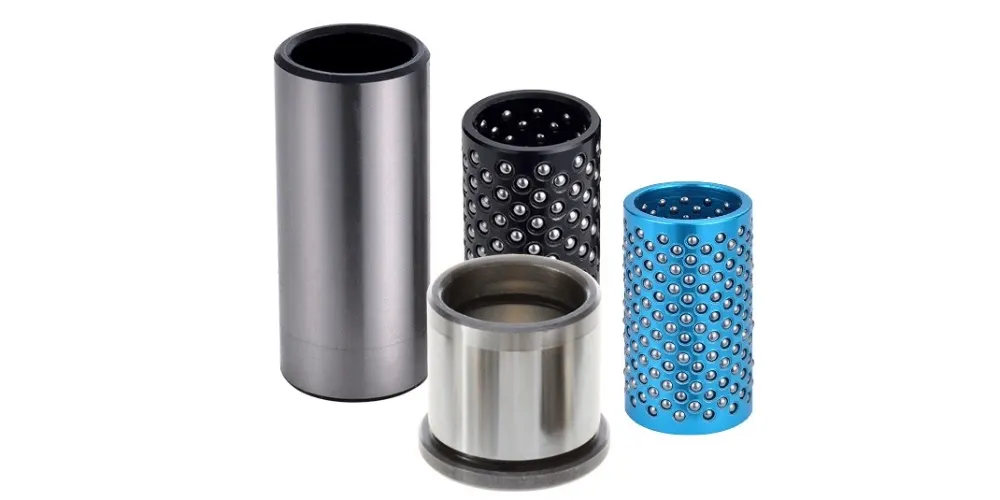

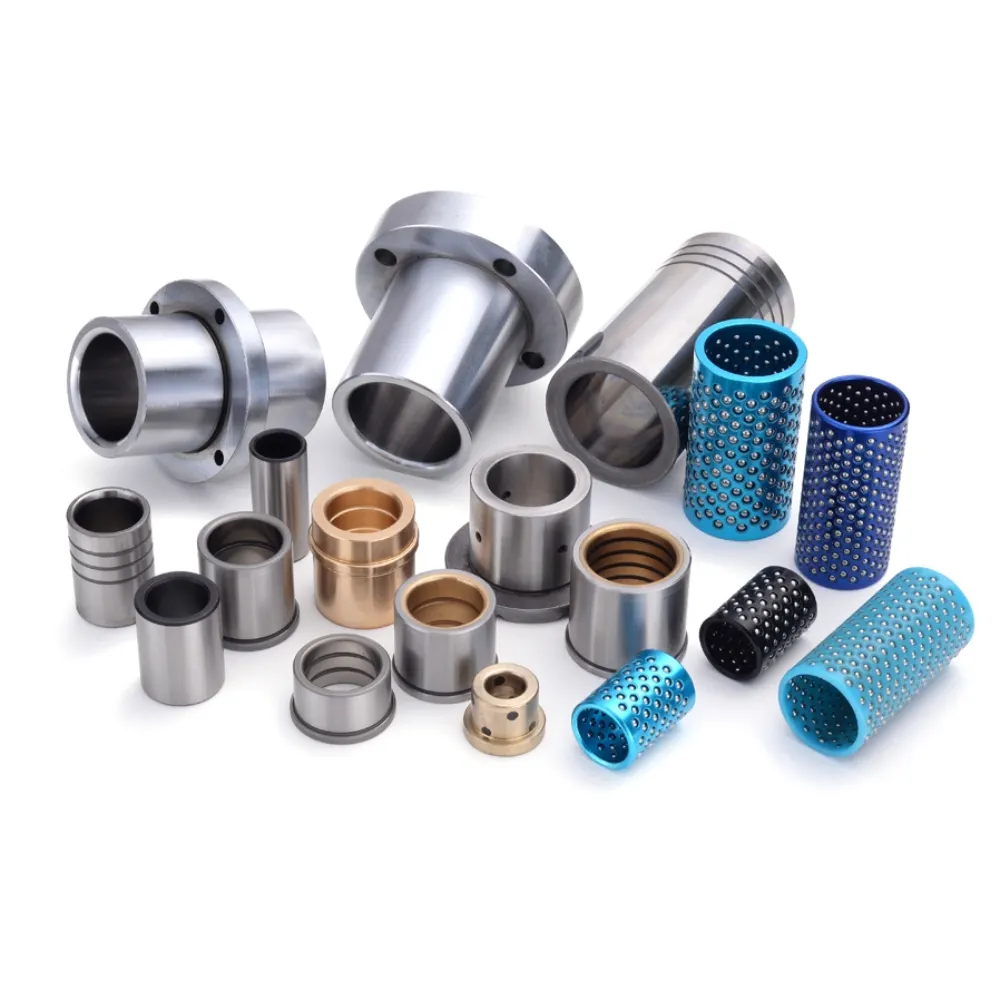

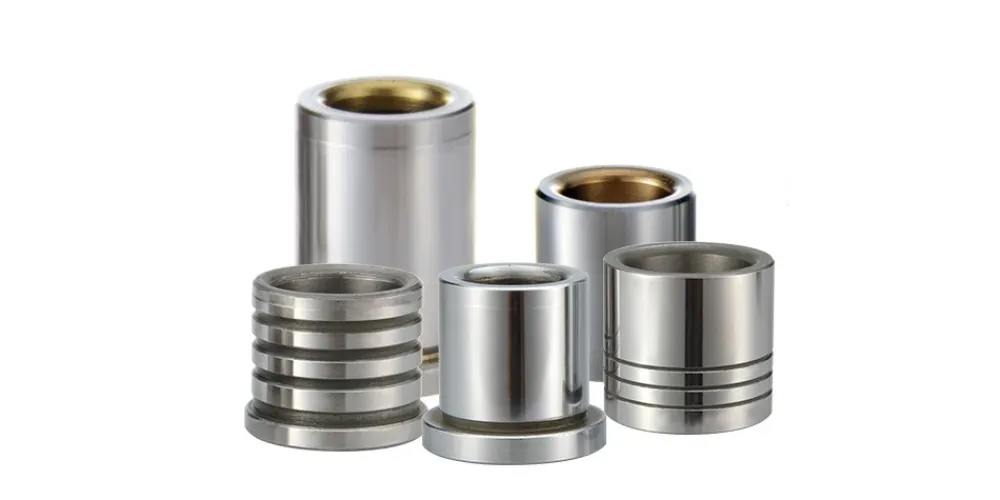

Inner Guide Bushing
Inner Guide Bushing is a guiding element installed within mold assemblies to support precise internal alignment of moving components. It ensures controlled motion between guide pillars and structural parts, helping maintain consistent operation during repetitive production cycles. With stable construction and accurate machining, it contributes to reliable mold performance and improved manufacturing consistency in industrial applications.
- Optimized Contact Stress Reduction: lowers pressure concentration during operation
- Stable Guide Path Accuracy: ensures consistent directional movement alignment
- Enhanced Component Fit Consistency: improves repeatable assembly precision
- Reduced Internal Friction Resistance: supports smoother mechanical motion cycles
Product Description
Introduction
Inner Guide Bushing is a precision component used inside mold systems to ensure accurate alignment and smooth relative movement between guide pillars and mold structures. It helps maintain stable guiding performance during repeated opening and closing cycles, reducing friction and minimizing positioning deviation. This contributes to improved machining accuracy and consistent product quality in industrial production.
The product is manufactured from high-quality materials such as bearing steel, alloy steel, or bronze, followed by heat treatment and precision grinding processes. These processes ensure excellent hardness, strong wear resistance, and stable dimensional accuracy even under continuous high-load and high-speed operating conditions. The inner surface is finely finished to provide smooth sliding contact and long service life in demanding environments.
Inner Guide Bushing is widely used in injection molds, stamping dies, die casting molds, progressive dies, and precision machinery systems. It is also applied in automation equipment and industrial tooling assemblies. Compatible with international standards such as MISUMI, HASCO, DME, DIN, and ISO, it can be customized according to drawings or special requirements. With reliable performance and stable guiding accuracy, it is an essential component for improving mold efficiency and reducing maintenance costs.
Specifications
| Item | Description |
|---|---|
| Product Name | Inner Guide Bushing |
| Material | SUJ2, GCr15, SKD11, Bronze |
| Hardness | HRC 58–62 |
| Surface Treatment | Precision grinding / Anti-rust coating |
| Structure Type | Inner type / Straight type / Flanged type |
| Tolerance | High precision machining standard |
| Lubrication | Oil groove / Self-lubricating optional |
| Size Range | Standard and custom sizes available |
| Service Life | Long cycle durability under high load |
Three Key Customization Aspects, Tailored to Your Needs
Matching different customization methods to meet various requirements.
Precision Manufacturing, Excellent Quality
Enhanced Internal Alignment Control
Provides precise positioning support within mold assemblies, ensuring stable coordination between components and reducing internal deviation during repeated mechanical cycles.
Improved Structural Fit Stability
Machined with tight tolerances to maintain consistent contact fit, minimizing looseness and improving overall assembly reliability in complex mold systems.
Reduced Internal Wear Accumulation
Optimized contact geometry decreases localized abrasion inside guiding areas, helping extend service life under continuous operation conditions.
Reliable Load Distribution Balance
Even force distribution across internal surfaces improves resistance to uneven stress, supporting stable operation under varying production loads.
Refined Service, Shortened Delivery Time
From design review to delivery, we provide dedicated one-on-one follow-up throughout the entire process.
Consultation → Provide Drawings → Design Review & Quotation → Order Processing → Quality Inspection → On-time Delivery → After-sales Follow-up
Our Advantages
Backed by over 25 years of engineering experience, our team offers comprehensive services—from customized mold design and precision machining to full-scale production—supported by a robust quality assurance system and proactive customer service. Certified under ISO9001, ISO14001, and IATF 16949, we continually strive for excellence in quality, innovation, and customer satisfaction.
Over 100,000 units in stock, with 2-hour shipment for standard products.
Implementing a three-stage inspection system—initial material check, in-process inspection, and final inspection.
Large inventory and quick turnaround, ensuring on-time delivery with 100% product inspection.
Application Range
The preferred choice across various industries.
FAQ
1. What is an Inner Guide Bushing used for?
It is used inside mold systems to guide and align moving components, ensuring precise internal positioning during operation.
2. What materials are commonly used?
Common materials include bearing steel, alloy steel, and bronze, selected for durability, hardness, and wear resistance.
3. Can it be used in high-speed production environments?
Yes, it is designed for stable performance under continuous high-speed and high-cycle manufacturing conditions.
4. Is it compatible with standard mold systems?
Yes, it supports MISUMI, HASCO, DME, DIN, and ISO standard mold bases.
5. Do you offer customization options?
Yes, we provide OEM services including custom sizes, drawings, and material requirements.
