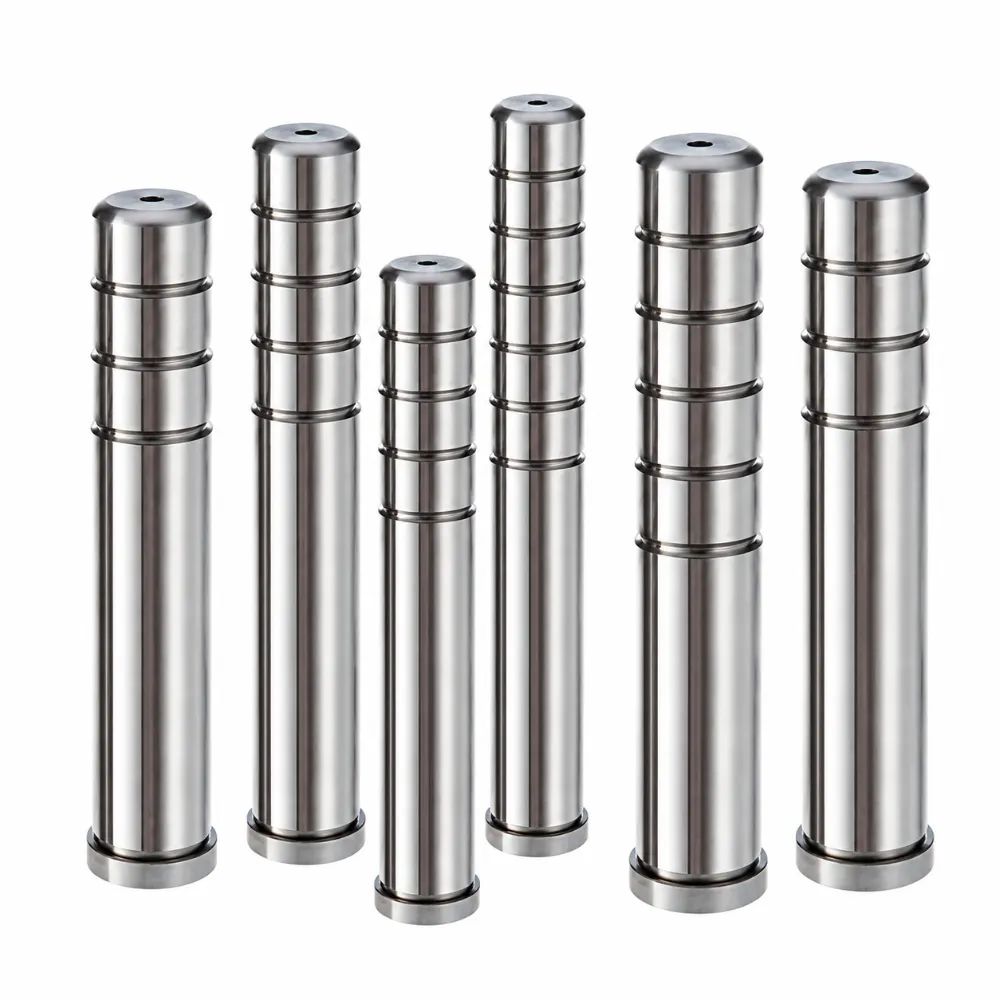

Metal Stamping Mold Guide Pillar
The metal stamping mold guide pillar is designed to support accurate die alignment in metal forming and stamping applications. It ensures controlled movement between die sections, helping maintain production precision and operational stability. Constructed from heat-treated steel, it delivers excellent durability and resistance to repeated mechanical stress. The precision-ground surface promotes smooth guiding action and reliable performance during continuous manufacturing processes. It is widely used in stamping tools requiring dependable alignment and long-term service life.
- Stable High Speed Operation Performance: Maintains accuracy during rapid stamping cycles
- Enhanced Load Distribution Capability Design: Balances force across die components evenly
- Long Service Life Durability Structure: Extends operational lifespan under heavy use
- Smooth Die Engagement Motion Control: Ensures consistent alignment during movement cycles
Product Description
Introduction
The metal stamping mold guide pillar is an essential component used in stamping dies to ensure precise alignment between upper and lower die sections. It plays a vital role in maintaining accurate movement during punching, blanking, and forming operations. By providing stable guidance throughout the stamping process, it helps improve production consistency, reduce dimensional variation, and support efficient tool performance in demanding manufacturing environments.
Manufactured from high-quality hardened alloy steel and processed through precision grinding, the metal stamping mold guide pillar offers excellent wear resistance, strength, and dimensional stability. Its smooth surface finish minimizes friction between guiding components, ensuring reliable movement during continuous operation. The robust structure is designed to withstand repetitive impact loads commonly encountered in high-speed stamping applications, helping extend tooling life and reduce maintenance requirements.
The metal stamping mold guide pillar is available in various diameters and lengths to accommodate different die set configurations. It can be produced according to ISO, DIN, JIS, or custom specifications to meet specific industrial requirements. Widely used in automotive parts production, electronic hardware manufacturing, appliance components, and precision metal forming industries, it provides dependable alignment performance and long-term operational reliability for modern stamping and tooling systems.
Specifications
| Item | Description |
|---|---|
| Product Name | Metal Stamping Mold Guide Pillar |
| Product Type | Guide Post / Guide Pillar |
| Material | SUJ2 / GCr15 / 100Cr6 |
| Hardness | HRC 58–62 |
| Surface Finish | Precision Ground |
| Surface Roughness | Ra 0.2–0.8 μm |
| Straightness | ≤ 0.005 mm |
| Roundness | ≤ 0.003 mm |
| Diameter Range | 10 mm – 80 mm |
| Length Range | 80 mm – 1200 mm |
| Tolerance | ISO / DIN Standard |
| Custom Service | Available |
Three Key Customization Aspects, Tailored to Your Needs
Matching different customization methods to meet various requirements.
Precision Manufacturing, Excellent Quality
Superior Impact Resistance Capability
Engineered to endure repetitive stamping forces, maintaining structural integrity and reliable guiding performance under demanding high-speed metal forming operations.
Precision Die Movement Control
Provides accurate guidance throughout the stamping cycle, ensuring smooth die travel and improving consistency in finished metal component production.
Reduced Tooling Maintenance Requirements
High-quality materials and precision finishing help minimize wear, lowering maintenance frequency and reducing downtime in industrial manufacturing environments.
Adaptable To Various Die Systems
Available in multiple sizes and specifications, allowing seamless integration into different stamping dies and custom metal forming tooling applications.
Refined Service, Shortened Delivery Time
From design review to delivery, we provide dedicated one-on-one follow-up throughout the entire process.
Consultation → Provide Drawings → Design Review & Quotation → Order Processing → Quality Inspection → On-time Delivery → After-sales Follow-up
Our Advantages
Backed by over 25 years of engineering experience, our team offers comprehensive services—from customized mold design and precision machining to full-scale production—supported by a robust quality assurance system and proactive customer service. Certified under ISO9001, ISO14001, and IATF 16949, we continually strive for excellence in quality, innovation, and customer satisfaction.
Over 100,000 units in stock, with 2-hour shipment for standard products.
Implementing a three-stage inspection system—initial material check, in-process inspection, and final inspection.
Large inventory and quick turnaround, ensuring on-time delivery with 100% product inspection.
Application Range
The preferred choice across various industries.
FAQ
Q1: What is a metal stamping mold guide pillar used for?
It is used to ensure precise alignment and smooth movement between upper and lower stamping dies during metal forming operations.
Q2: What materials are commonly used?
It is typically made from hardened alloy steel such as GCr15, SUJ2, or 100Cr6 for high strength and wear resistance.
Q3: Can it be customized?
Yes, diameter, length, hardness, and tolerance can be customized according to different stamping die requirements.
Q4: Is it suitable for high-speed production?
Yes, it is designed for high-speed stamping environments with stable performance under continuous impact loads.
Q5: Where is it commonly used?
It is widely used in automotive parts, electronic hardware, appliance components, and precision metal stamping industries.
