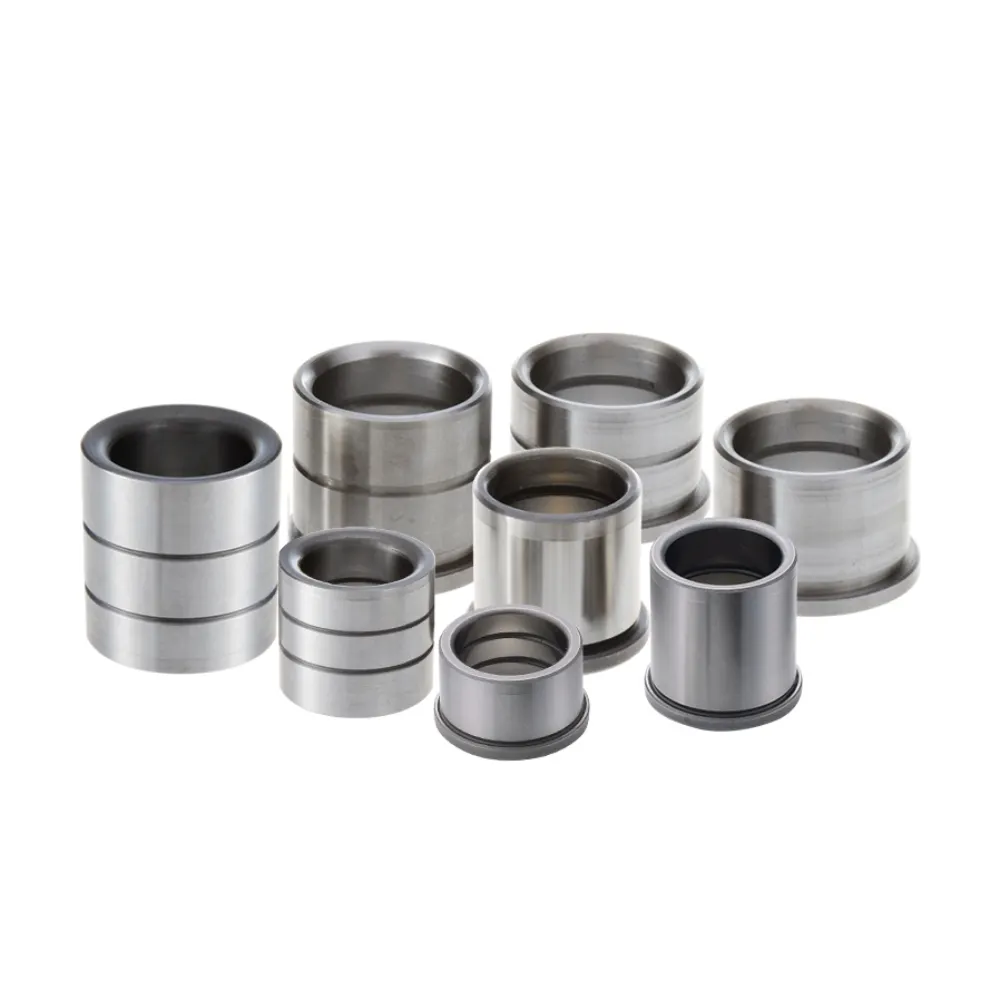

Mold Inner Guide Bushing
Mold Inner Guide Bushing is designed to support precise internal alignment within mold assemblies, ensuring controlled movement of guiding components during operation. It helps maintain smooth interaction between parts under repeated working cycles, reducing mechanical instability and improving overall production consistency. With reliable structure and stable performance characteristics, it is suitable for demanding industrial environments requiring high accuracy and long-term durability.
Product Description
Introduction
Mold Inner Guide Bushing is a precision component used within mold base systems to ensure accurate alignment and smooth movement between internal guide elements. It supports stable guiding performance during repeated mold opening and closing cycles, helping reduce friction and maintaining consistent positioning accuracy. This improves overall molding stability and ensures reliable production quality in industrial applications.
The product is manufactured from high-quality materials such as bearing steel, alloy steel, or bronze, followed by heat treatment and precision grinding processes. These manufacturing steps provide excellent hardness, strong wear resistance, and stable dimensional accuracy under continuous high-load and high-speed operating conditions. The finely finished surface ensures smooth sliding contact and long service life, even in demanding production environments.
Mold Inner Guide Bushing is widely used in injection mold bases, stamping dies, plastic mold frames, automotive mold systems, die casting molds, and industrial machinery equipment. It is suitable for internal guiding structures requiring high precision and long-term stability. Compatible with international standards such as MISUMI, HASCO, DME, DIN, and ISO, it can also be customized according to drawings or special requirements, making it a reliable solution for improving mold efficiency, reducing maintenance costs, and ensuring consistent production performance.
Specifications
| Item | Description |
|---|---|
| Product Name | Mold Inner Guide Bushing |
| Material | SUJ2, GCr15, SKD11, Bronze |
| Hardness | HRC 58–62 |
| Surface Treatment | Precision grinding / Anti-rust coating |
| Structure Type | Inner type / Straight type / Flanged type |
| Tolerance | High precision machining standard |
| Lubrication | Oil groove / Self-lubricating optional |
| Size Range | Standard and custom sizes available |
| Service Life | Long cycle durability under high load |
