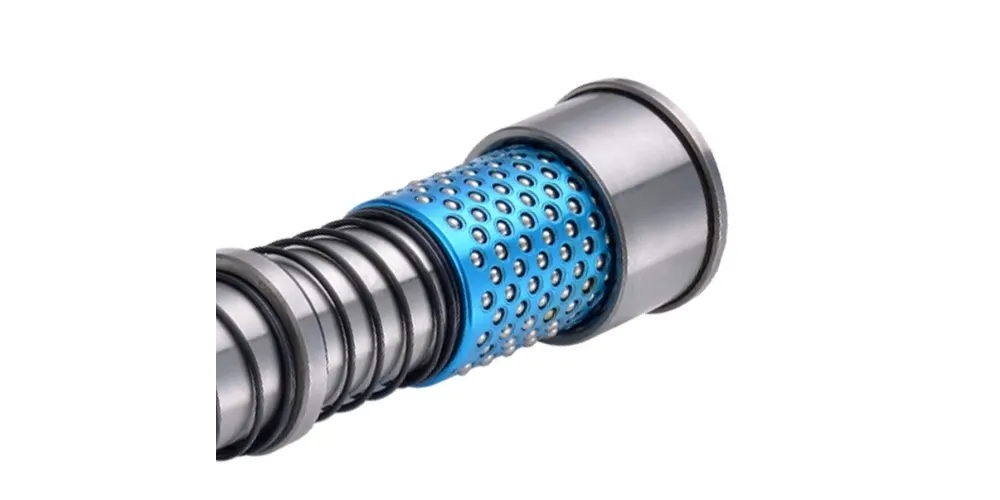

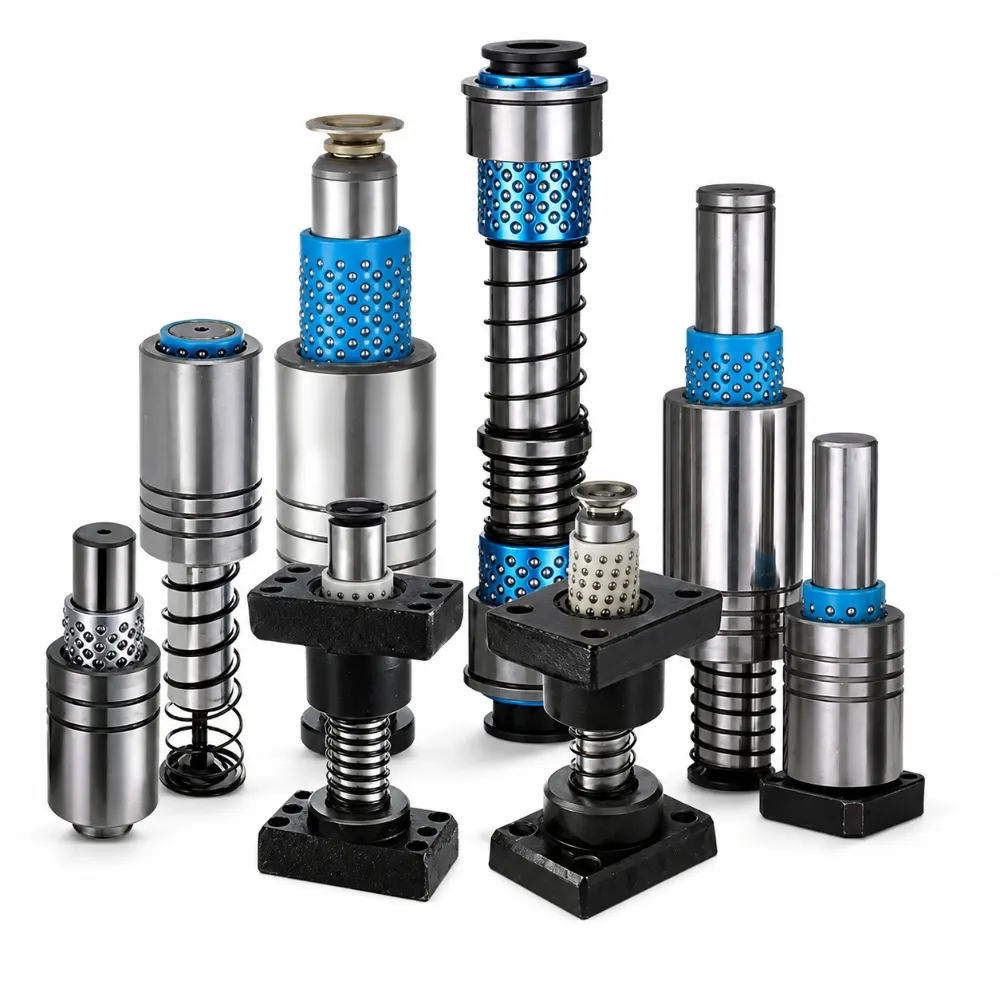

Outer Guide Post
Outer Guide Post provides dependable external guidance for die sets, molds, and stamping equipment requiring precise linear movement. Engineered with durable steel construction and advanced manufacturing processes, it delivers smooth operation and consistent positioning throughout repeated production cycles. The external mounting design enhances accessibility and system stability while supporting accurate component alignment.
- Supports Accurate External Guidance Systems: Delivers dependable alignment for demanding tooling.
- Resists Deformation During Heavy Operation: Maintains structural integrity under continuous loads.
- Facilitates Faster Equipment Maintenance Tasks: Simplifies inspection and component replacement procedures.
- Compatible With Multiple Die Configurations: Adapts easily to diverse tooling applications.
Product Description
Introduction
Outer Guide Post is an important guiding component designed for stamping dies, mold bases, die sets, and various precision tooling systems. Positioned outside the die assembly, it helps maintain accurate alignment between moving sections during operation. Reliable guidance is essential for ensuring dimensional accuracy, reducing production errors, and improving the overall quality of stamped or formed products. Its stable structure makes it suitable for both standard and high-precision manufacturing environments.
Manufactured from premium-grade bearing steel and processed through precision machining, heat treatment, and grinding operations, the Outer Guide Post offers excellent hardness, wear resistance, and mechanical strength. The smooth surface finish helps reduce friction during continuous movement, while the hardened construction enhances durability under demanding working conditions. These characteristics contribute to improved operational stability and longer service life for die and mold systems.
Outer Guide Posts are widely used in automotive manufacturing, electronics production, household appliance fabrication, aerospace tooling, industrial machinery, and metal forming applications. Available in multiple diameters, lengths, and mounting configurations, they can accommodate a wide range of tooling requirements. Custom materials, dimensions, and surface treatments are also available to support specialized projects, providing manufacturers with dependable guiding solutions for precision production processes.
Specifications
| Parameter | Specification |
|---|---|
| Product Name | Outer Guide Post |
| Material | SUJ2 / GCr15 Bearing Steel |
| Surface Finish | Precision Ground |
| Hardness | HRC 58-62 |
| Guiding Type | External Guiding System |
| Diameter Range | Ø20 mm – Ø80 mm |
| Length Range | 100 mm – 600 mm |
| Surface Treatment | Hard Chrome Plating Optional |
| Straightness | ≤0.005 mm/100 mm |
| Concentricity | High Precision |
| Installation Type | Press-Fit / Bolt Mounted |
| Operating Environment | Industrial Tooling Systems |
| Service Life | Long-Term Continuous Operation |
| Customization | OEM & ODM Available |
Three Key Customization Aspects, Tailored to Your Needs
Matching different customization methods to meet various requirements.
Precision Manufacturing, Excellent Quality
Enhanced Structural Stability
The external guiding design strengthens overall die assembly support, helping maintain consistent positioning accuracy while reducing unwanted movement during demanding manufacturing operations.
Excellent Corrosion Protection
Optional surface treatments provide additional protection against moisture, contaminants, and harsh workshop environments, helping preserve component performance over extended periods.
Efficient Assembly Integration
Designed for convenient installation and compatibility with various die set configurations, allowing manufacturers to simplify setup procedures and reduce adjustment time.
Reliable Dimensional Retention
High-quality materials and controlled heat-treatment processes help maintain critical dimensions under repeated mechanical stress, supporting long-term accuracy in production applications.
Refined Service, Shortened Delivery Time
From design review to delivery, we provide dedicated one-on-one follow-up throughout the entire process.
Consultation → Provide Drawings → Design Review & Quotation → Order Processing → Quality Inspection → On-time Delivery → After-sales Follow-up
Our Advantages
Backed by over 25 years of engineering experience, our team offers comprehensive services—from customized mold design and precision machining to full-scale production—supported by a robust quality assurance system and proactive customer service. Certified under ISO9001, ISO14001, and IATF 16949, we continually strive for excellence in quality, innovation, and customer satisfaction.
Over 100,000 units in stock, with 2-hour shipment for standard products.
Implementing a three-stage inspection system—initial material check, in-process inspection, and final inspection.
Large inventory and quick turnaround, ensuring on-time delivery with 100% product inspection.
Application Range
The preferred choice across various industries.
FAQ
What is an Outer Guide Post used for?
An Outer Guide Post is used to guide and align moving sections of die sets, molds, and stamping tools. It helps maintain positioning accuracy and supports stable operation during manufacturing processes.
What materials are commonly used for Outer Guide Posts?
Most Outer Guide Posts are manufactured from high-quality bearing steel such as SUJ2 or GCr15. These materials provide excellent hardness, wear resistance, and long-term durability.
Can Outer Guide Posts be customized?
Yes. Custom diameters, lengths, mounting styles, surface treatments, and material specifications can be produced according to customer drawings or specific application requirements.
Which industries commonly use Outer Guide Posts?
Outer Guide Posts are widely used in automotive stamping, electronics manufacturing, appliance production, aerospace tooling, metal fabrication, industrial machinery, and precision mold applications.
How do I select the correct Outer Guide Post?
Selection depends on factors such as die size, load requirements, operating speed, installation method, and tooling design. Technical specifications and application details help determine the most suitable model.
