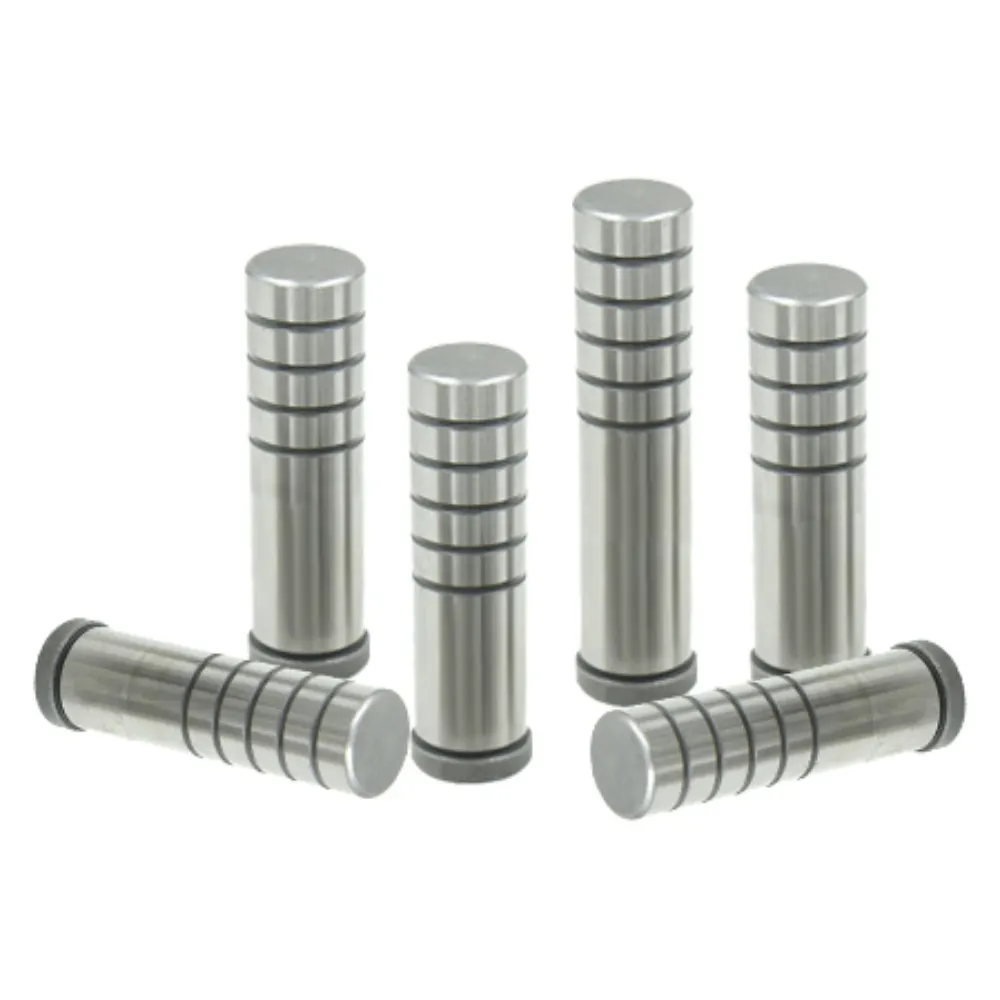

Press Fit Guide Pillar
The press fit guide pillar is a precision-aligned mold element installed through interference fitting to achieve firm positioning inside the mold base. It provides reliable guidance for moving mold sections while maintaining structural stability during continuous operation. Made from hardened alloy steel, it delivers strong mechanical strength and consistent dimensional accuracy. Its precision-machined surface supports smooth interaction with guide components, making it suitable for demanding manufacturing environments that require stable and repeatable mold performance.
- Permanent Mold Base Integration Strength: Ensures long-term fixed positioning stability
- High Installation Accuracy Control: Guarantees precise press-in alignment results
- Enhanced Load Bearing Capacity: Supports heavy-duty industrial molding operations
- Reduced Component Assembly Complexity: Simplifies mold manufacturing and maintenance
Product Description
Introduction
The press fit guide pillar is a precision mold component designed for interference fit installation within mold bases. It is securely mounted by pressing into pre-machined holes, ensuring a firm and stable connection without the need for additional fixing elements. This structure provides accurate alignment between mold plates and supports smooth guiding performance during repeated production cycles in industrial applications.
Manufactured from high-quality hardened steel, the press fit guide pillar offers excellent strength, dimensional stability, and wear resistance. Its finely ground surface ensures low friction during operation, reducing mechanical resistance and improving overall mold efficiency. The rigid installation method enhances structural integrity, making it suitable for high-load and high-speed production environments where precision is critical.
The press fit guide pillar can be customized in diameter, length, and tolerance to meet specific mold design requirements. It is compatible with international standards such as ISO, DIN, and JIS, and can also be produced according to OEM drawings. Widely used in injection molding, stamping dies, die casting molds, and automated production systems, it delivers reliable alignment performance and long service life in demanding industrial tooling applications.
Specifications
| Item | Description |
|---|---|
| Product Name | Press Fit Guide Pillar |
| Installation Type | Interference fit / Press-in |
| Material | SUJ2 / GCr15 / 100Cr6 / SKD steel |
| Hardness | HRC 58–62 |
| Surface Treatment | Precision grinding / heat treatment |
| Straightness | ≤ 0.005 mm |
| Roundness | ≤ 0.003 mm |
| Concentricity | ≤ 0.01 mm |
| Length Range | 100 mm – 1000 mm (customizable) |
| Tolerance | ISO / DIN standard or OEM drawing |
Three Key Customization Aspects, Tailored to Your Needs
Matching different customization methods to meet various requirements.
Precision Manufacturing, Excellent Quality
Secure Interference Installation
Press fit design ensures firm embedding inside mold base, preventing movement or loosening during operation and maintaining consistent alignment accuracy under repeated production stress conditions.
Simplified Assembly Structure
Eliminates need for additional fasteners or locking parts, reducing assembly complexity and improving installation efficiency during mold manufacturing and maintenance processes.
Improved Structural Rigidity
Direct press-in mounting enhances overall mold strength, providing stable support for guiding components and reducing deformation under high load working environments.
Consistent Precision Performance
Manufactured with tight dimensional control, ensuring reliable concentricity and guiding accuracy throughout long-term operation in high-speed industrial molding systems.
Refined Service, Shortened Delivery Time
From design review to delivery, we provide dedicated one-on-one follow-up throughout the entire process.
Consultation → Provide Drawings → Design Review & Quotation → Order Processing → Quality Inspection → On-time Delivery → After-sales Follow-up
Our Advantages
Backed by over 25 years of engineering experience, our team offers comprehensive services—from customized mold design and precision machining to full-scale production—supported by a robust quality assurance system and proactive customer service. Certified under ISO9001, ISO14001, and IATF 16949, we continually strive for excellence in quality, innovation, and customer satisfaction.
Over 100,000 units in stock, with 2-hour shipment for standard products.
Implementing a three-stage inspection system—initial material check, in-process inspection, and final inspection.
Large inventory and quick turnaround, ensuring on-time delivery with 100% product inspection.
Application Range
The preferred choice across various industries.
FAQ
Q1: What is a press fit guide pillar?
It is a mold guide component installed using an interference fit method, directly pressed into the mold base for stable alignment.
Q2: What materials are used for this product?
It is typically made from hardened steel such as GCr15, SUJ2, or 100Cr6 to ensure high strength and wear resistance.
Q3: How is it installed?
The guide pillar is installed by pressing it into a pre-machined hole in the mold plate without additional fasteners.
Q4: Can it be customized?
Yes, diameter, length, tolerance, and material can be customized according to specific mold design requirements.
Q5: Where is it commonly used?
It is widely used in injection molds, stamping dies, die casting systems, and precision industrial tooling applications.
