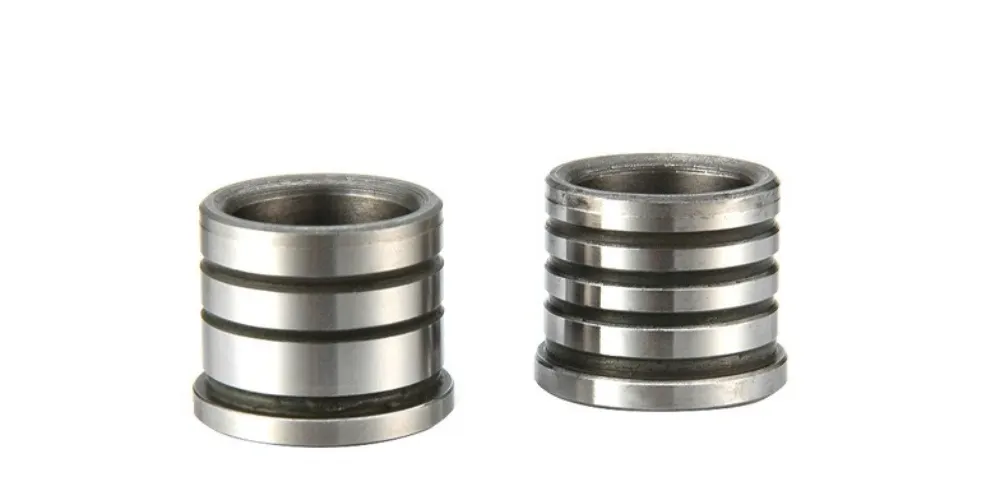

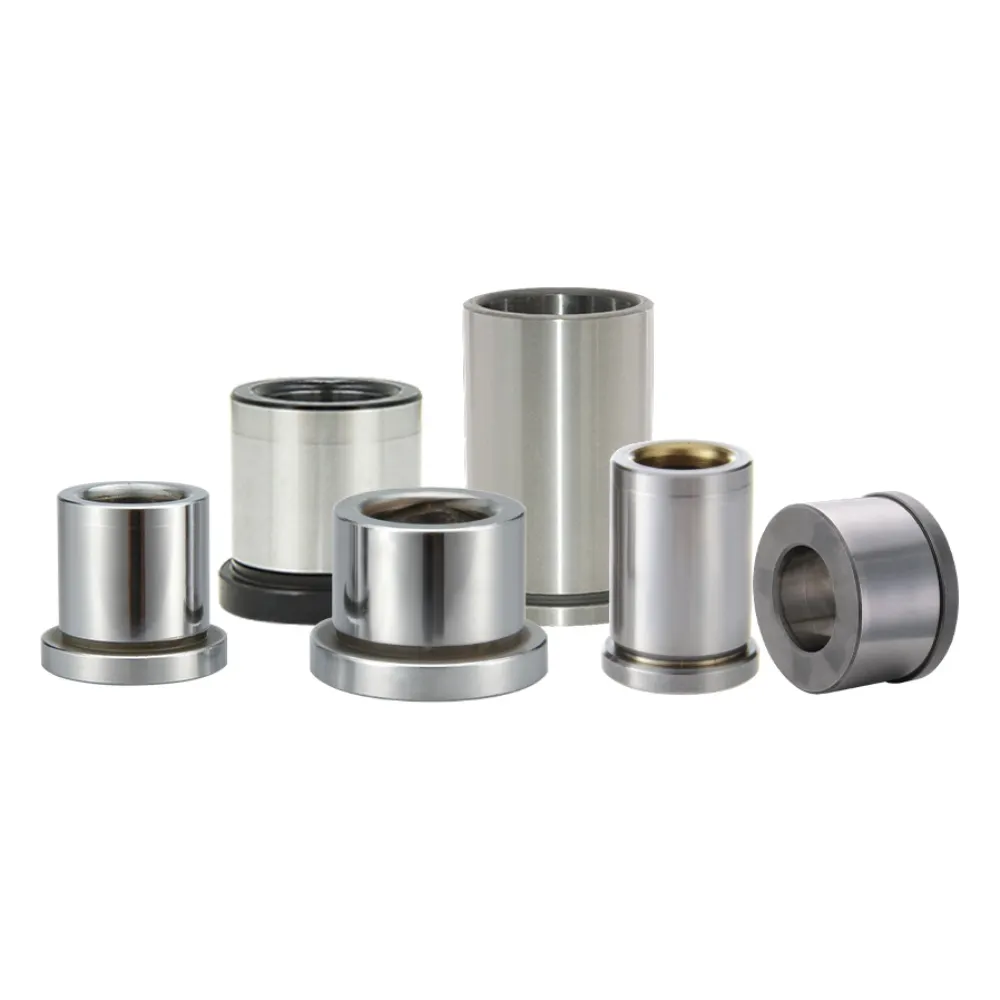

Shoulder Guide Bushing
Shoulder Guide Bushing is a critical alignment element used in precision dies and molds to support stable guiding movement between components. It helps maintain consistent positioning under load, improving tooling reliability and operational accuracy. Made from hardened steel with fine machining, it delivers long service life in demanding industrial applications.
- Improved Load Distribution: reduces stress concentration on mold components
- Fast Assembly Fit: simplifies installation into standard die systems
- Thermal Resistance Stability: maintains performance under heat exposure
- Consistent Dimensional Accuracy: ensures repeatable positioning in production
Product Description
Introduction
Shoulder Guide Bushing is a precision mold component designed to ensure accurate alignment between guide pillars and mold plates in stamping dies and injection molds. It plays a critical role in maintaining smooth movement during mold operation, reducing friction, and improving overall tooling stability. With a stepped shoulder structure, it provides strong positioning support and helps extend the service life of both the mold and guiding system.
Manufactured from high-quality bearing steel or alloy steel, the guide bushing is heat treated and precision ground to achieve high hardness, excellent wear resistance, and stable dimensional accuracy. Its inner bore is finely finished to ensure smooth sliding with the guide pillar, even under high-speed and high-load working conditions. Standard sizes are widely used in industrial tooling, while custom specifications can be produced according to drawings or application requirements.
This product is commonly used in stamping dies, progressive dies, plastic injection molds, and die-casting tools. It is also suitable for precision machinery and automated production systems that require reliable guiding performance. Available in MISUMI, HASCO, DME, and other international standards, Shoulder Guide Bushings are an essential solution for improving mold accuracy, reducing maintenance, and ensuring consistent production quality.
Specifications
| Item | Description |
|---|---|
| Product Name | Shoulder Guide Bushing |
| Alternative Name | Stepped Guide Bushing, Flanged Guide Bushing |
| Material | SUJ2, GCr15, Bearing Steel, Tool Steel |
| Hardness | HRC 58-62 |
| Surface Finish | Precision Ground |
| Structure | Shoulder Type / Flanged Type |
| Tolerance | High Precision Grinding |
| Lubrication Option | Standard or Self-Lubricating |
| Custom Service | Available |
| Application | Stamping Dies, Molds, Tooling |
Three Key Customization Aspects, Tailored to Your Needs
Matching different customization methods to meet various requirements.
Precision Manufacturing, Excellent Quality
High Alignment Stability
The shoulder structure ensures firm positioning inside die sets, reducing lateral movement and keeping guide systems accurately centered during repeated high-speed production cycles.
Enhanced Surface Durability
Special heat treatment combined with precision grinding improves surface hardness, allowing the bushing to resist wear, deformation, and long-term mechanical stress effectively.
Smooth Low-Friction Operation
Optimized inner bore finish minimizes friction between guide pillar and bushing, ensuring smoother sliding motion and reducing energy loss during continuous mold operation.
Flexible Custom Compatibility
Supports multiple international standards and non-standard customization, allowing easy integration into different mold systems while meeting specific dimensional and performance requirements.
Refined Service, Shortened Delivery Time
From design review to delivery, we provide dedicated one-on-one follow-up throughout the entire process.
Consultation → Provide Drawings → Design Review & Quotation → Order Processing → Quality Inspection → On-time Delivery → After-sales Follow-up
Our Advantages
Backed by over 25 years of engineering experience, our team offers comprehensive services—from customized mold design and precision machining to full-scale production—supported by a robust quality assurance system and proactive customer service. Certified under ISO9001, ISO14001, and IATF 16949, we continually strive for excellence in quality, innovation, and customer satisfaction.
Over 100,000 units in stock, with 2-hour shipment for standard products.
Implementing a three-stage inspection system—initial material check, in-process inspection, and final inspection.
Large inventory and quick turnaround, ensuring on-time delivery with 100% product inspection.
Application Range
The preferred choice across various industries.
FAQ
1. What is a Shoulder Guide Bushing used for?
It is used in stamping dies and molds to guide and align moving components, ensuring accurate positioning and smooth operation.
2. What materials are used for manufacturing?
Common materials include bearing steel such as GCr15 or SUJ2, which are heat treated for high hardness and wear resistance.
3. Can Shoulder Guide Bushings be customized?
Yes, we support custom sizes, drawings, and non-standard specifications to meet different mold and tooling requirements.
4. Which industries commonly use this product?
It is widely used in stamping, injection molding, die casting, and precision machinery manufacturing industries.
5. What standards are available?
We offer products based on MISUMI, HASCO, DME, DIN, and ISO standards for global compatibility.
