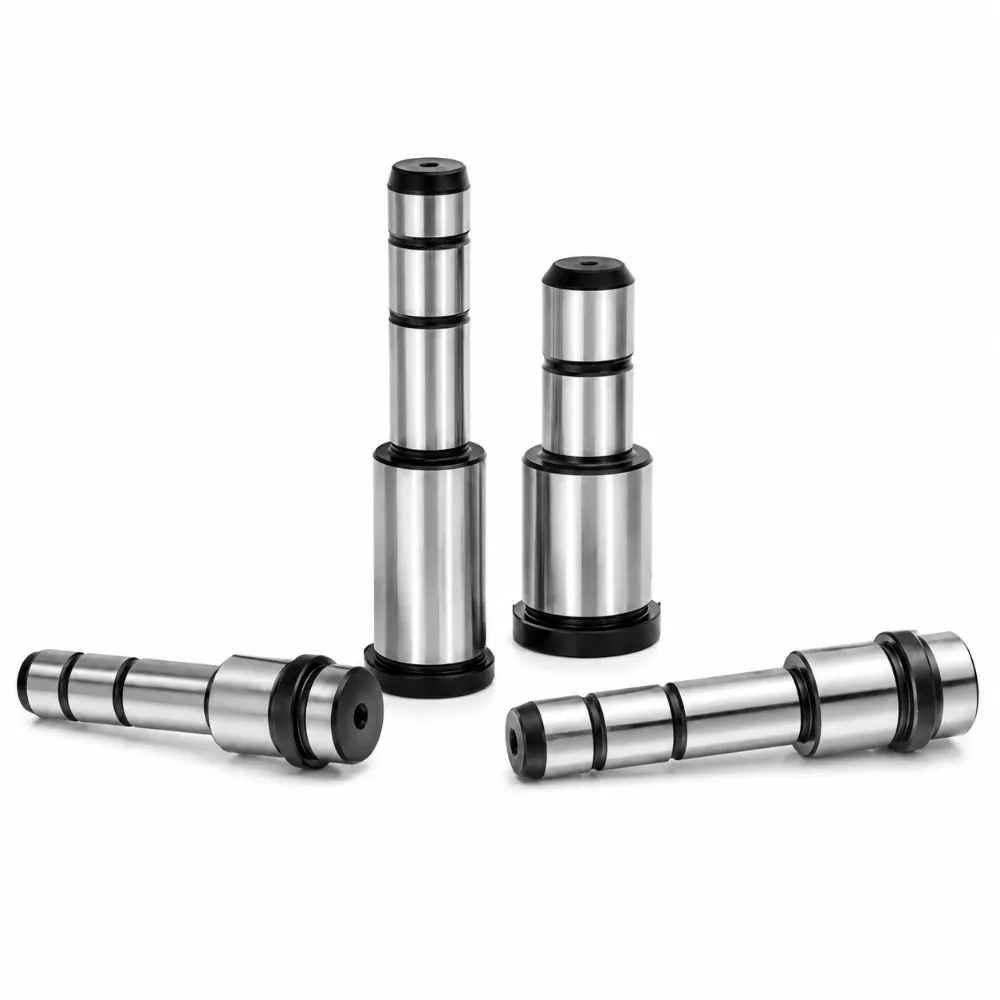

Shoulder Guide Post
Shoulder Guide Post is designed to provide precise guiding and secure mounting within mold and die assemblies. Its shoulder configuration offers additional positioning support, helping maintain accurate component alignment during operation. Manufactured with high-quality steel and advanced finishing processes, it delivers excellent strength, dimensional consistency, and operational reliability. Suitable for a variety of industrial tooling systems, this guide post supports smooth movement, dependable performance, and long-term durability in applications requiring stable guidance and accurate mechanical positioning.
- Accurate Installation Positioning Support: Helps maintain precise assembly alignment consistently.
- Strong Retention Under Working Loads: Provides dependable stability during continuous operation.
- Optimized For Mold Base Integration: Fits various tooling and mold structures.
- Reliable Performance Across Production Cycles: Ensures consistent operation over extended use.
Product Description
Introduction
Shoulder Guide Post is a precision guiding component widely used in stamping dies, mold bases, die sets, and industrial tooling systems. Featuring an integrated shoulder design, it provides secure positioning and reliable support during installation while ensuring accurate alignment between moving mold components. The shoulder structure helps simplify assembly and enhances overall stability, making it suitable for applications requiring consistent guiding accuracy and dependable operational performance.
Manufactured from premium bearing steel such as SUJ2 or GCr15, the Shoulder Guide Post undergoes precision machining, heat treatment, grinding, and polishing processes to achieve excellent hardness, dimensional precision, and wear resistance. The hardened surface improves durability under repeated operating cycles, while the precision-ground finish promotes smooth movement and reduced friction. These characteristics help maintain long-term accuracy and support stable performance in demanding production environments.
Shoulder Guide Posts are commonly used in automotive stamping dies, electronic component molds, appliance manufacturing equipment, progressive dies, precision tooling assemblies, and industrial machinery. Available in multiple diameters, lengths, and shoulder configurations, they can accommodate a wide variety of mold structures and tooling requirements. Custom manufacturing services are available to meet specific design needs, providing manufacturers with reliable guiding solutions for precision production applications.
Specifications
| Parameter | Specification |
|---|---|
| Product Name | Shoulder Guide Post |
| Material | SUJ2 / GCr15 Bearing Steel |
| Surface Finish | Precision Ground & Polished |
| Hardness | HRC 58-62 |
| Diameter Range | Ø10 mm – Ø80 mm |
| Length Range | 50 mm – 500 mm |
| Shoulder Type | Integrated Shoulder Design |
| Straightness | ≤0.005 mm/100 mm |
| Surface Treatment | Hard Chrome Optional |
| Installation Type | Shoulder Mounted |
| Precision Grade | High Precision |
| Service Life | Long-Term Industrial Use |
| Operating Condition | Continuous Production |
| Customization | OEM & ODM Available |
Three Key Customization Aspects, Tailored to Your Needs
Matching different customization methods to meet various requirements.
Precision Manufacturing, Excellent Quality
Secure Shoulder Positioning Design
The integrated shoulder section provides dependable mounting support, helping maintain installation accuracy and improving structural stability throughout long-term industrial operation.
Simplified Assembly Procedures
Designed for convenient installation within die sets and mold systems, reducing setup complexity while supporting efficient equipment integration and maintenance.
Enhanced Axial Load Support
The shoulder structure helps manage axial forces effectively, contributing to improved component retention and dependable performance under demanding conditions.
Consistent Mechanical Performance
Carefully controlled manufacturing processes ensure uniform quality and repeatable functionality, supporting reliable operation across various tooling and mold applications.
Refined Service, Shortened Delivery Time
From design review to delivery, we provide dedicated one-on-one follow-up throughout the entire process.
Consultation → Provide Drawings → Design Review & Quotation → Order Processing → Quality Inspection → On-time Delivery → After-sales Follow-up
Our Advantages
Backed by over 25 years of engineering experience, our team offers comprehensive services—from customized mold design and precision machining to full-scale production—supported by a robust quality assurance system and proactive customer service. Certified under ISO9001, ISO14001, and IATF 16949, we continually strive for excellence in quality, innovation, and customer satisfaction.
Over 100,000 units in stock, with 2-hour shipment for standard products.
Implementing a three-stage inspection system—initial material check, in-process inspection, and final inspection.
Large inventory and quick turnaround, ensuring on-time delivery with 100% product inspection.
Application Range
The preferred choice across various industries.
FAQ
What is a Shoulder Guide Post?
A Shoulder Guide Post is a precision guiding component featuring an integrated shoulder section that provides accurate positioning and secure installation in mold and die assemblies.
What are the advantages of a Shoulder Guide Post?
The shoulder design helps improve mounting stability, maintains accurate alignment, supports axial loads, and contributes to reliable guiding performance during operation.
What materials are commonly used for Shoulder Guide Posts?
Shoulder Guide Posts are typically manufactured from high-quality bearing steel such as SUJ2 or GCr15, offering excellent hardness, wear resistance, and durability.
Where are Shoulder Guide Posts used?
They are widely used in stamping dies, mold bases, progressive dies, automotive tooling, industrial machinery, electronic component molds, and precision manufacturing equipment.
Can Shoulder Guide Posts be customized?
Yes. Custom diameters, lengths, shoulder dimensions, surface treatments, tolerances, and material specifications can be produced according to customer drawings and application requirements.
