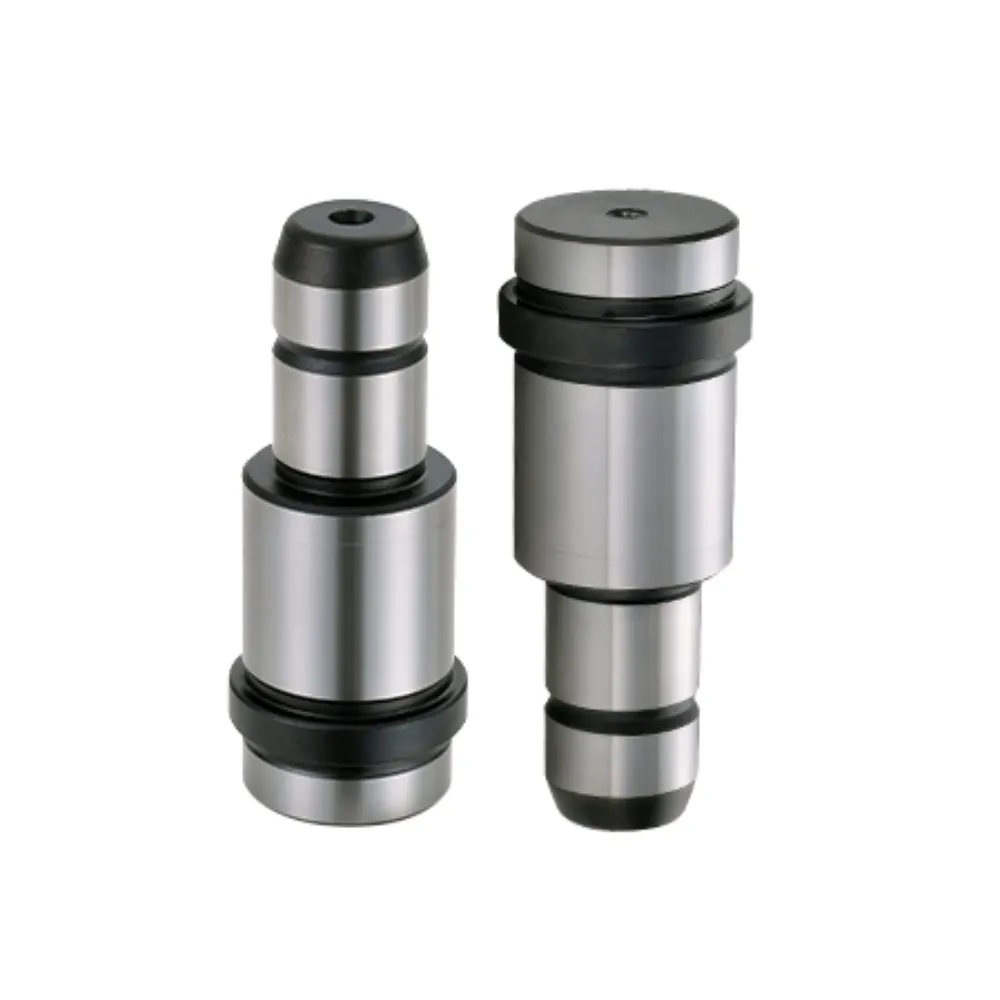

Small Guide Pillar
The small guide pillar is a compact mold alignment component designed for precision tooling systems with limited installation space. It is widely used in small injection molds and micro mold assemblies to maintain accurate positioning of moving parts. Its reduced size allows flexible integration into complex mold structures without sacrificing guiding stability. Made from hardened steel, it ensures reliable mechanical strength and consistent performance. The polished surface supports smooth movement and long-term operational reliability in precision manufacturing environments.
- Ultra Compact Structural Integration Capability: Fits tightly within micro mold assemblies
- Fine Tolerance Positioning Accuracy Control: Ensures extremely precise alignment performance
- Low Friction Micro Motion Operation: Provides smooth movement in small systems
- Consistent Long Term Reliability Performance: Maintains stable function under repeated cycles
Product Description
Introduction
The small guide pillar is a precision-engineered mold component designed for compact tooling systems where space is limited but alignment accuracy is critical. It is commonly used in miniature injection molds and precision die assemblies to ensure stable positioning between moving and fixed mold plates. Its compact design allows it to fit efficiently into small mold structures while maintaining reliable guiding performance throughout repeated production cycles.
Manufactured from high-strength hardened steel with precision grinding, the small guide pillar offers excellent wear resistance, rigidity, and dimensional stability. Its finely finished surface reduces friction between mating components, ensuring smooth and consistent movement even under continuous operation. This makes it suitable for high-precision applications that require long-term reliability and minimal maintenance.
The small guide pillar can be customized in diameter, length, and tolerance to meet specific mold design requirements. It is compatible with international standards such as ISO, DIN, and JIS, and can also be produced according to OEM specifications. Widely used in electronic components, medical devices, and small plastic part molds, it provides accurate alignment and dependable performance in modern precision manufacturing systems.
Specifications
| Item | Description |
|---|---|
| Product Name | Small Guide Pillar |
| Type | Mini / Compact Guide Post |
| Material | SUJ2 / GCr15 / 100Cr6 / SKD steel |
| Hardness | HRC 58–62 |
| Surface Treatment | Precision grinding / heat treatment |
| Straightness | ≤ 0.005 mm |
| Roundness | ≤ 0.003 mm |
| Concentricity | ≤ 0.01 mm |
| Length Range | 30 mm – 300 mm (customizable) |
| Tolerance | ISO / DIN standard or OEM drawing |
Three Key Customization Aspects, Tailored to Your Needs
Matching different customization methods to meet various requirements.
Precision Manufacturing, Excellent Quality
Compact Space Utilization Design
Optimized structure allows installation in limited mold space, supporting precise alignment functions while maintaining compact and efficient tooling system integration.
High Precision Micro Alignment
Ensures extremely accurate positioning between mold components, improving consistency and reducing deviation in miniature and precision injection molding applications.
Enhanced Surface Durability Performance
Special hardened treatment improves surface hardness, reducing wear and maintaining stable guiding function under continuous micro-scale operational conditions.
Stable Low Load Operation
Designed for precision molds with lighter loads, providing smooth guiding action and maintaining reliable performance during high-frequency production cycles.
Refined Service, Shortened Delivery Time
From design review to delivery, we provide dedicated one-on-one follow-up throughout the entire process.
Consultation → Provide Drawings → Design Review & Quotation → Order Processing → Quality Inspection → On-time Delivery → After-sales Follow-up
Our Advantages
Backed by over 25 years of engineering experience, our team offers comprehensive services—from customized mold design and precision machining to full-scale production—supported by a robust quality assurance system and proactive customer service. Certified under ISO9001, ISO14001, and IATF 16949, we continually strive for excellence in quality, innovation, and customer satisfaction.
Over 100,000 units in stock, with 2-hour shipment for standard products.
Implementing a three-stage inspection system—initial material check, in-process inspection, and final inspection.
Large inventory and quick turnaround, ensuring on-time delivery with 100% product inspection.
Application Range
The preferred choice across various industries.
FAQ
Q1: What is a small guide pillar used for?
It is used in compact and precision molds to ensure accurate alignment between mold components in limited space.
Q2: What materials are commonly used?
It is typically made from hardened steel such as GCr15, SUJ2, or 100Cr6 for strength and wear resistance.
Q3: Can the size be customized?
Yes, diameter, length, and tolerance can be customized according to different mold design requirements.
Q4: Is it suitable for high-load applications?
It is mainly designed for light to medium load precision molds rather than heavy-duty industrial systems.
Q5: Where is it commonly used?
It is widely used in electronic parts, medical devices, and small plastic precision injection molds.
