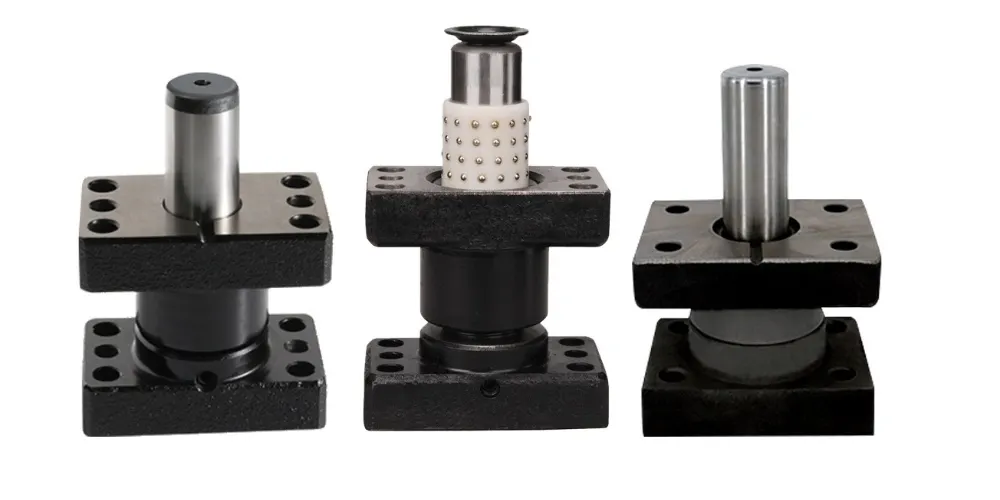

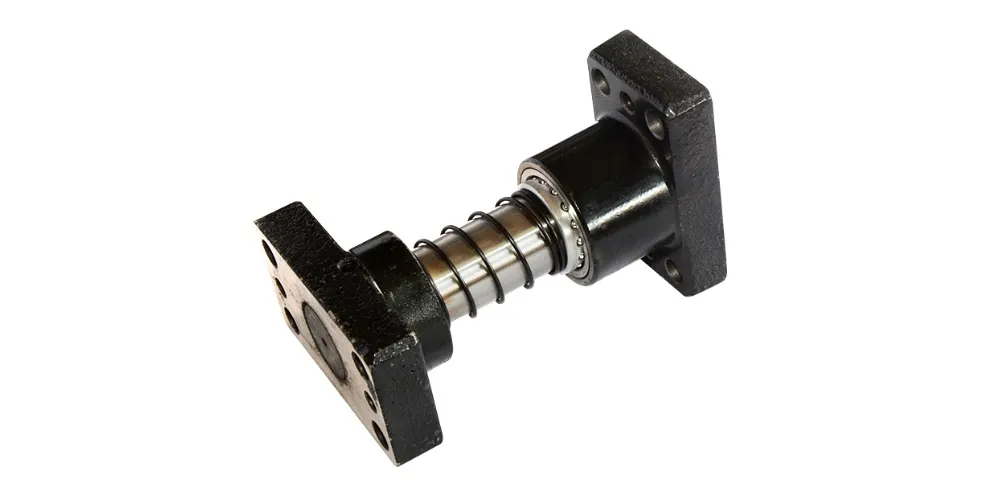

Automotive Mold Guide Pillar
Automotive Mold Guide Pillar is engineered for precise guidance in vehicle mold and die systems requiring strong alignment stability. Built from hardened bearing steel and finished through precision grinding, it delivers reliable strength, smooth operation, and resistance to continuous wear. This component helps support accurate mold movement during stamping, forming, or injection molding processes. It is suitable for automotive body parts, plastic interior components, hardware tooling, and custom mold assemblies requiring long-term performance.
- Heavy Mold Load Support: Handles demanding automotive tooling pressure reliably.
- Stable Vehicle Part Forming: Helps maintain accurate production results.
- Smooth Long Cycle Operation: Reduces friction during repeated mold movement.
- Flexible OEM Mold Matching: Fits custom automotive tooling specifications.
Product Description
Introduction
Automotive Mold Guide Pillar is a precision guiding component designed for automotive molds, stamping dies, injection molds, and heavy-duty tooling systems. It helps maintain accurate alignment between mold plates or die sections during repeated opening, closing, pressing, and forming operations. In automotive manufacturing, stable guidance is essential for ensuring consistent part dimensions, reducing tooling deviation, and supporting reliable production of metal and plastic vehicle components.
Manufactured from high-quality bearing steel such as SUJ2 or GCr15, the Automotive Mold Guide Pillar is processed through precision machining, heat treatment, grinding, and polishing. These processes help achieve high hardness, smooth surface finish, strong wear resistance, and excellent dimensional stability. The guide pillar works with guide bushings to provide smooth movement, reduce friction, and improve long-term mold accuracy under demanding production conditions.
Automotive Mold Guide Pillars are widely used in automotive stamping dies, plastic injection molds, body panel tooling, interior trim molds, metal forming dies, and precision mold bases. Standard specifications are available for common mold structures, while custom diameters, lengths, tolerances, and surface treatments can be produced according to customer drawings. This makes it suitable for both standard automotive mold systems and specialized OEM tooling projects.
Specifications
| Parameter | Specification |
|---|---|
| Product Name | Automotive Mold Guide Pillar |
| Material | SUJ2 / GCr15 Bearing Steel |
| Surface Finish | Precision Ground & Polished |
| Hardness | HRC 58-62 |
| Diameter Range | Ø16 mm – Ø120 mm |
| Length Range | 80 mm – 1200 mm |
| Guiding Type | Mold / Die Plate Guidance |
| Structure Type | Standard / Custom Guide Pillar |
| Straightness | ≤0.005 mm/100 mm |
| Surface Treatment | Hard Chrome Optional |
| Installation Type | Press Fit / Custom Mounting |
| Precision Grade | High Precision |
| Operating Condition | Heavy-Duty Automotive Tooling |
| Service Life | Long-Term Industrial Use |
| Customization | Standard Stock / OEM Drawing Available |
Three Key Customization Aspects, Tailored to Your Needs
Matching different customization methods to meet various requirements.
Precision Manufacturing, Excellent Quality
High Load Bearing Capacity
Designed for automotive tooling conditions, it supports heavy mold plates and repeated forming pressure while maintaining dependable guiding performance during production.
Improved Vehicle Part Accuracy
Stable guidance helps reduce mold offset, supporting more consistent dimensions for automotive metal parts, plastic components, and precision vehicle assemblies.
Durable Surface Performance
Precision finishing and hardened material help resist scratches, friction damage, and long-term wear in demanding automotive mold operating environments.
Suitable For OEM Tooling Projects
Available in custom sizes, tolerances, and mounting styles, making it suitable for automotive mold manufacturers and specialized tooling development projects.
Refined Service, Shortened Delivery Time
From design review to delivery, we provide dedicated one-on-one follow-up throughout the entire process.
Consultation → Provide Drawings → Design Review & Quotation → Order Processing → Quality Inspection → On-time Delivery → After-sales Follow-up
Our Advantages
Backed by over 25 years of engineering experience, our team offers comprehensive services—from customized mold design and precision machining to full-scale production—supported by a robust quality assurance system and proactive customer service. Certified under ISO9001, ISO14001, and IATF 16949, we continually strive for excellence in quality, innovation, and customer satisfaction.
Over 100,000 units in stock, with 2-hour shipment for standard products.
Implementing a three-stage inspection system—initial material check, in-process inspection, and final inspection.
Large inventory and quick turnaround, ensuring on-time delivery with 100% product inspection.
Application Range
The preferred choice across various industries.
FAQ
What is an Automotive Mold Guide Pillar?
An Automotive Mold Guide Pillar is a precision guiding component used in automotive molds, stamping dies, injection molds, and tooling systems to maintain accurate mold alignment.
What materials are commonly used for Automotive Mold Guide Pillars?
Automotive Mold Guide Pillars are usually made from SUJ2 or GCr15 bearing steel, offering high hardness, wear resistance, and stable long-term performance.
Where are Automotive Mold Guide Pillars commonly used?
They are widely used in automotive stamping dies, body panel tooling, plastic injection molds, interior trim molds, hardware molds, and precision mold bases.
Can Automotive Mold Guide Pillars be customized?
Yes. Custom diameters, lengths, tolerances, mounting styles, surface treatments, and non-standard structures can be produced according to customer drawings.
What are the benefits of using Automotive Mold Guide Pillars?
They help improve mold positioning accuracy, support heavy-duty tooling loads, reduce wear between moving parts, and maintain stable performance during long production cycles.
