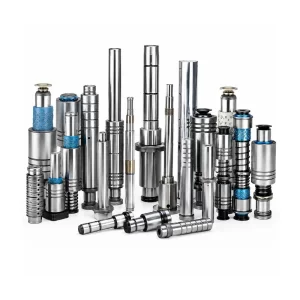

Punch Press Guide Pillar
- Accurate Guiding: Maintains precise tooling movement during operation
- Strong Structure: Provides reliable support under heavy pressure
- Balanced Loading: Helps distribute force across working components
- Flexible Application: Suitable for multiple press tooling systems
Product Description
Introduction
Punch Press Guide Pillar is a high-precision guiding component designed for punch presses, stamping dies, and industrial press tooling systems. It plays a crucial role in maintaining accurate alignment between moving die sections, ensuring smooth operation and improving the overall precision of metal forming processes. By reducing positional deviation during repetitive cycles, the guide pillar helps achieve consistent product quality and enhanced production efficiency.
Manufactured from premium-grade bearing steel and alloy steel materials such as SUJ2 and SKD11, the punch press guide pillar is processed through precision grinding and advanced heat treatment technology. These manufacturing processes provide superior hardness, dimensional stability, and excellent wear resistance. The polished surface minimizes friction during operation, reducing component wear and extending tooling lifespan even under demanding working conditions.
Designed for high-speed and heavy-duty industrial applications, the punch press guide pillar offers reliable performance in continuous production environments. It is widely used in sheet metal processing, automotive manufacturing, precision electronic component production, and industrial press systems. Available in a variety of sizes and specifications, the product supports OEM and custom manufacturing services based on customer drawings. Its durable construction, precision machining, and compatibility with international mold standards make it an ideal solution for manufacturers seeking improved operational reliability, reduced maintenance costs, and long-term tooling performance.
Specifications
| Item | Specification |
|---|---|
| Product Name | Punch Press Guide Pillar |
| Material | SUJ2 / SKD11 / SCM440 |
| Hardness | HRC 58–62 |
| Surface Treatment | Polishing / Hard Chrome Plating |
| Precision Grade | Precision Ground |
| Surface Roughness | Ra 0.2 – Ra 0.8 |
| Diameter Range | 5mm – 80mm |
| Length Range | 20mm – 800mm |
| Straightness | ≤0.01mm/100mm |
| Tolerance | Custom Available |
| Working Application | Punch Press & Stamping Systems |
| Custom Service | OEM & ODM Supported |
Three Key Customization Aspects, Tailored to Your Needs
Matching different customization methods to meet various requirements.
Precision Manufacturing, Excellent Quality
Optimized Press Accuracy
Ensures accurate guidance throughout punch press operations, helping maintain precise die engagement and improving dimensional consistency in manufactured metal components.
Robust Structural Design
Built with a reinforced structure that provides dependable support under demanding operating conditions, ensuring stability during intensive industrial production activities.
Efficient Force Transmission
Promotes balanced force distribution between tooling components, reducing unnecessary stress and contributing to smoother machine performance during continuous operation.
Adaptable Industrial Use
Suitable for various punch press configurations and tooling systems, offering flexible integration for manufacturers with diverse production requirements and equipment setups.
Refined Service, Shortened Delivery Time
From design review to delivery, we provide dedicated one-on-one follow-up throughout the entire process.
Consultation → Provide Drawings → Design Review & Quotation → Order Processing → Quality Inspection → On-time Delivery → After-sales Follow-up
Our Advantages
Backed by over 25 years of engineering experience, our team offers comprehensive services—from customized mold design and precision machining to full-scale production—supported by a robust quality assurance system and proactive customer service. Certified under ISO9001, ISO14001, and IATF 16949, we continually strive for excellence in quality, innovation, and customer satisfaction.
Over 100,000 units in stock, with 2-hour shipment for standard products.
Implementing a three-stage inspection system—initial material check, in-process inspection, and final inspection.
Large inventory and quick turnaround, ensuring on-time delivery with 100% product inspection.
Application Range
The preferred choice across various industries.
FAQ
Q1: What is a punch press guide pillar used for?
It is used to guide and align tooling components in punch press systems, ensuring accurate movement and stable operation during metal forming processes.
Q2: What materials are commonly used for punch press guide pillars?
They are typically made from SUJ2, SKD11, SCM440, or other hardened alloy steels to provide excellent strength, wear resistance, and durability.
Q3: Can punch press guide pillars be manufactured to custom sizes?
Yes. Custom diameters, lengths, tolerances, materials, and surface treatments are available based on customer drawings and application requirements.
Q4: What surface treatments can be applied?
Common surface treatments include precision polishing, hard chrome plating, and anti-corrosion coatings to improve wear resistance and operational life.
Q5: Which industries use punch press guide pillars?
They are widely used in sheet metal processing, automotive manufacturing, electronics production, industrial stamping, precision tooling, and press machine applications.
