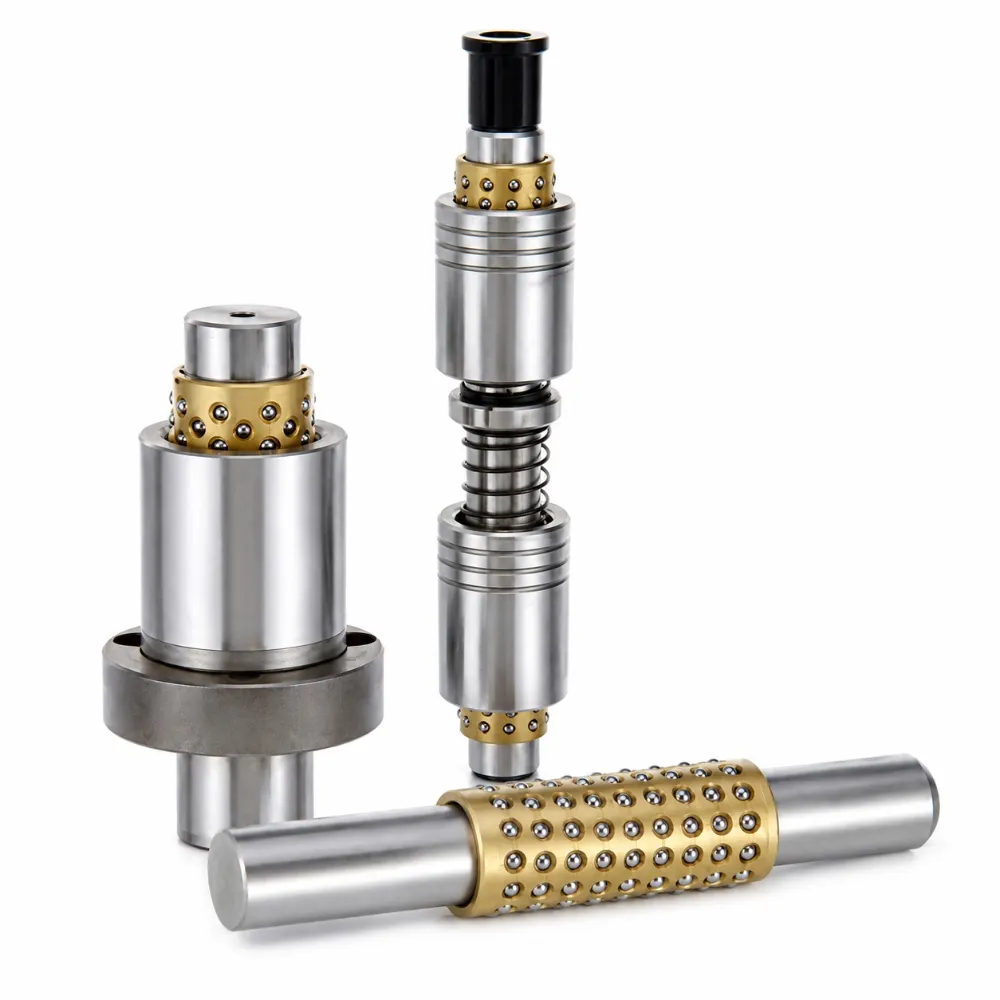

Bronze Bushing Guide Post
Bronze Bushing Guide Post combines a precision-machined guide pillar with a durable bronze bushing to create a dependable guiding solution for molds and die systems. The assembly is designed to deliver smooth linear movement, stable positioning, and reduced surface wear during repeated operation. Its optimized material combination enhances operational efficiency while supporting consistent performance in demanding industrial environments. Suitable for both standard and custom tooling applications, it provides reliable guidance for long-term production requirements.
- Smooth Linear Motion Control: Ensures stable guidance throughout repeated cycles.
- Durable Bronze Bushing Structure: Enhances reliability under continuous operating conditions.
- Reduced Wear Between Components: Helps extend service life of tooling.
- Suitable For Heavy Duty Applications: Supports demanding industrial mold systems.
Product Description
Introduction
Bronze Bushing Guide Post is a precision guiding assembly designed for stamping dies, mold bases, injection molds, and industrial tooling systems. Combining a hardened steel guide post with a high-quality bronze bushing, this assembly provides accurate linear guidance and stable movement between critical mold components. It helps maintain precise alignment during operation, reducing mechanical deviation and supporting consistent production quality across a wide range of manufacturing applications.
The guide post is manufactured from premium bearing steel and undergoes precision grinding and heat treatment to achieve excellent hardness and dimensional accuracy. The bronze bushing offers superior anti-friction properties and smooth sliding performance, helping reduce wear between moving components. This combination creates a reliable guiding system capable of operating efficiently under continuous production conditions while minimizing maintenance requirements and extending tooling service life.
Bronze Bushing Guide Posts are widely used in automotive molds, electronic component tooling, household appliance manufacturing, metal stamping dies, plastic injection molds, and precision industrial equipment. Available in multiple sizes and configurations, they can accommodate different load requirements and mold structures. Custom dimensions, materials, and surface treatments are available to meet specific OEM and industrial applications, providing long-term reliability and dependable performance in demanding production environments.
Specifications
| Parameter | Specification |
|---|---|
| Product Name | Bronze Bushing Guide Post |
| Guide Post Material | SUJ2 / GCr15 Bearing Steel |
| Bushing Material | High-Strength Bronze |
| Surface Finish | Precision Ground |
| Hardness | HRC 58-62 |
| Diameter Range | Ø16 mm – Ø80 mm |
| Length Range | 80 mm – 600 mm |
| Guiding Type | Bronze Bushing Guidance |
| Surface Treatment | Hard Chrome Optional |
| Straightness | ≤0.005 mm/100 mm |
| Installation Type | Press Fit |
| Precision Grade | High Precision |
| Service Life | Long-Term Industrial Use |
| Customization | OEM & ODM Available |
Three Key Customization Aspects, Tailored to Your Needs
Matching different customization methods to meet various requirements.
Precision Manufacturing, Excellent Quality
Self-Lubricating Sliding Performance
The bronze bushing structure promotes smooth sliding contact, helping reduce lubrication dependence while supporting reliable operation in continuous manufacturing environments.
Effective Vibration Absorption
Bronze material helps absorb operational vibration and minor impact forces, contributing to smoother equipment movement and improved tooling stability during production.
Balanced Load Distribution
Designed to distribute operating loads evenly across guiding surfaces, helping reduce localized stress concentrations and supporting long-term component reliability.
Excellent Anti-Seizure Capability
The combination of hardened steel and bronze materials minimizes the risk of surface sticking, ensuring dependable movement under varying operating conditions.
Refined Service, Shortened Delivery Time
From design review to delivery, we provide dedicated one-on-one follow-up throughout the entire process.
Consultation → Provide Drawings → Design Review & Quotation → Order Processing → Quality Inspection → On-time Delivery → After-sales Follow-up
Our Advantages
Backed by over 25 years of engineering experience, our team offers comprehensive services—from customized mold design and precision machining to full-scale production—supported by a robust quality assurance system and proactive customer service. Certified under ISO9001, ISO14001, and IATF 16949, we continually strive for excellence in quality, innovation, and customer satisfaction.
Over 100,000 units in stock, with 2-hour shipment for standard products.
Implementing a three-stage inspection system—initial material check, in-process inspection, and final inspection.
Large inventory and quick turnaround, ensuring on-time delivery with 100% product inspection.
Application Range
The preferred choice across various industries.
FAQ
What is a Bronze Bushing Guide Post?
A Bronze Bushing Guide Post is a guiding assembly that combines a hardened steel guide post with a bronze bushing. It is used to provide accurate alignment and smooth movement in molds and die systems.
What are the advantages of a bronze bushing?
Bronze bushings offer low friction, good wear resistance, smooth sliding performance, and excellent load-carrying capability. They help improve guiding accuracy and extend component service life.
Where is a Bronze Bushing Guide Post commonly used?
It is widely used in stamping dies, injection molds, mold bases, progressive dies, industrial tooling systems, automotive molds, and precision manufacturing equipment.
Can Bronze Bushing Guide Posts be customized?
Yes. Custom diameters, lengths, bushing materials, surface treatments, and mounting configurations can be manufactured according to customer drawings and application requirements.
How does a Bronze Bushing Guide Post improve tooling performance?
It helps maintain precise alignment, reduces friction between moving parts, minimizes component wear, supports smooth operation, and improves the overall reliability of mold and die assemblies.
