Bronze Graphite Guide Bushing
Bronze Graphite Guide Bushing is a durable guiding element used in molds and machinery systems to support stable motion without external lubrication. Its structure integrates bronze strength with graphite lubrication points, allowing smooth contact performance during continuous operation. The design improves guiding precision, reduces mechanical resistance, and ensures reliable function in demanding industrial environments with high load and long service cycles.
- Constant Lubricant Regeneration Effect: renews lubrication during continuous operation
- Shock Load Resistance Performance: absorbs sudden mechanical impact effectively
- Stable Dimensional Retention Ability: keeps geometry unchanged under stress
- Low Maintenance Operation Requirement: reduces need for frequent servicing
Product Description
Introduction

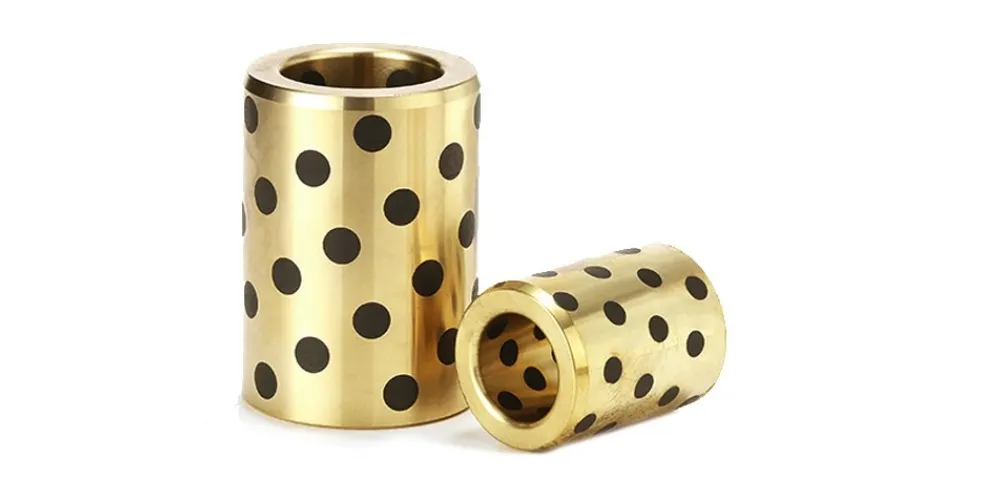

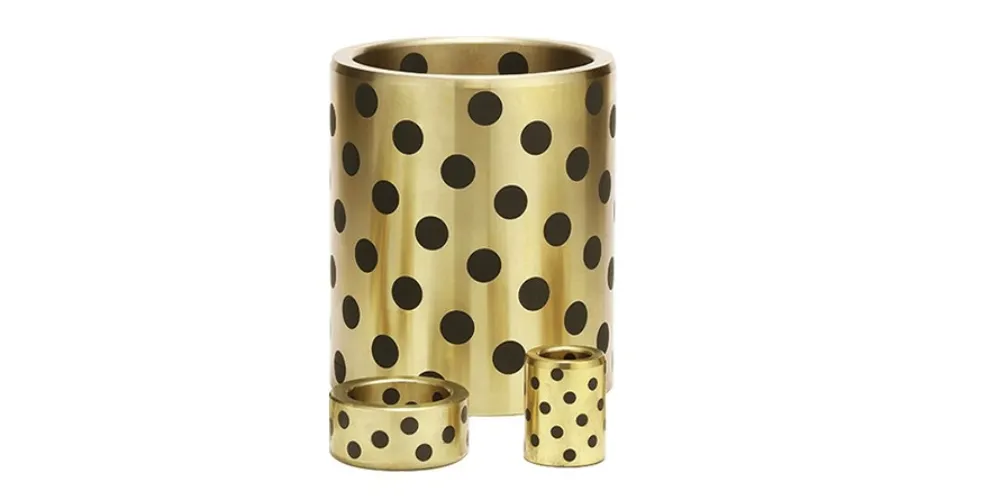

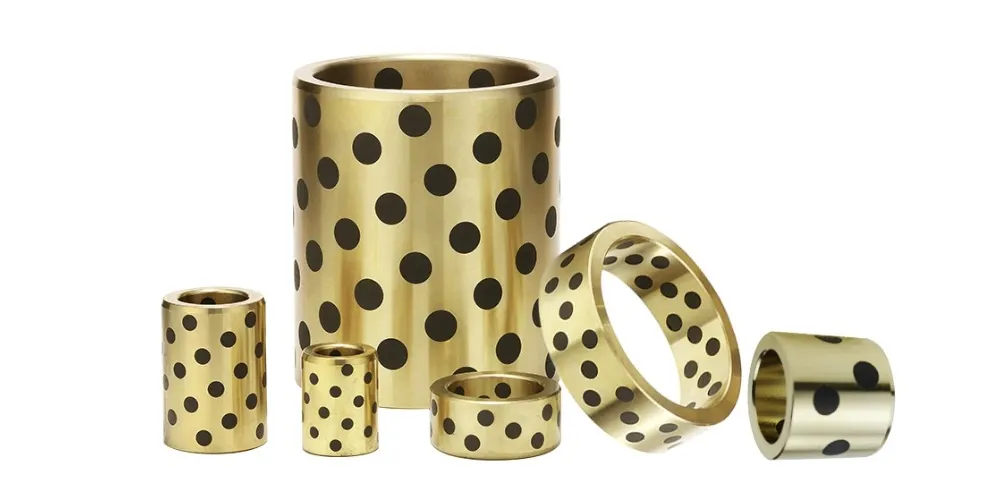

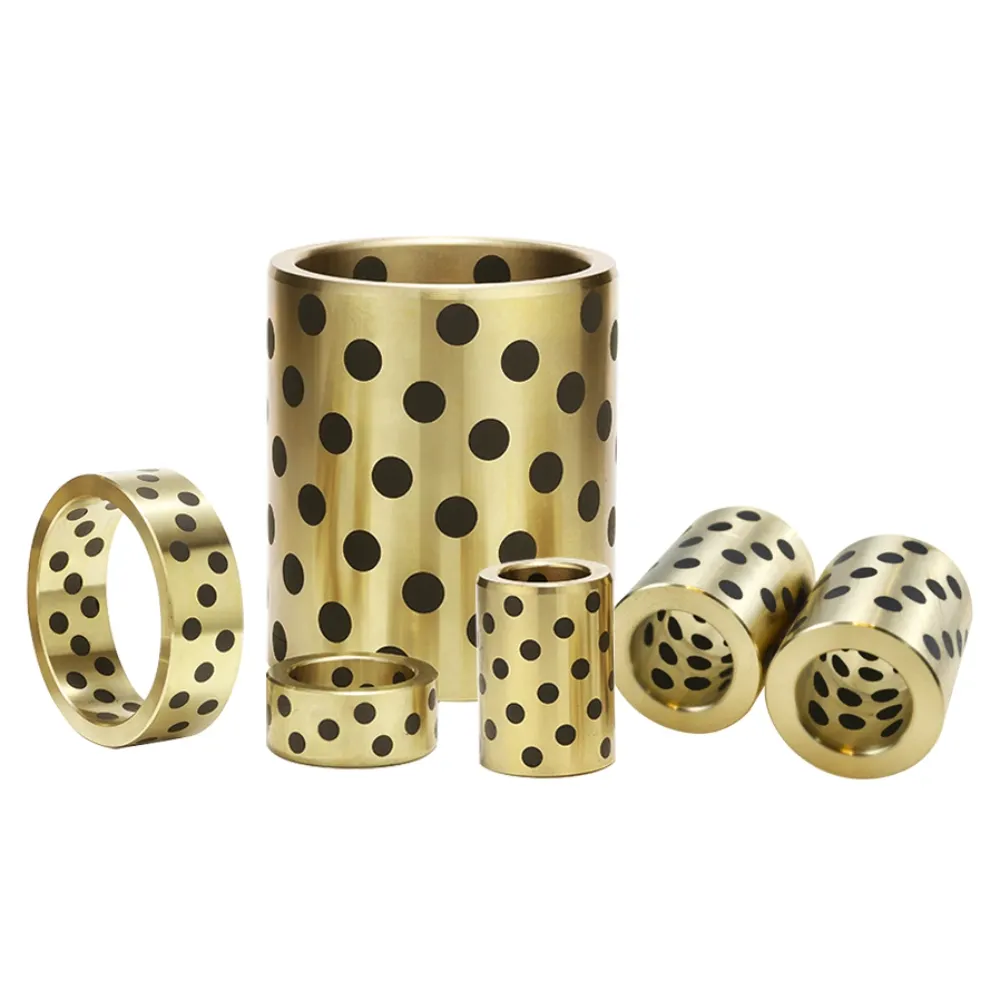

Bronze Graphite Guide Bushing is a precision self-lubricating component designed for guiding systems in molds, dies, and industrial machinery. It is manufactured from high-strength bronze material combined with embedded graphite plugs, which provide continuous internal lubrication during operation. This structure ensures smooth sliding between guide pillars and bushings while maintaining accurate alignment and stable performance under long-term working conditions.
The bushing is produced through advanced casting, machining, and precision finishing processes to achieve excellent mechanical strength and dimensional accuracy. The graphite inserts act as a solid lubricant, gradually releasing lubrication during motion to reduce friction and prevent direct metal contact. This helps minimize wear, avoid seizure, and maintain consistent performance even under high load and continuous production environments.
Bronze Graphite Guide Bushing is widely used in injection molds, stamping dies, die casting systems, and various industrial automation equipment. It is especially suitable for applications where external lubrication is difficult or maintenance access is limited. Compatible with international standards such as MISUMI, HASCO, DME, DIN, and ISO, it can also be customized according to drawings or specific requirements, making it a reliable solution for high-performance and maintenance-free guiding applications.
Specifications
| Item | Description |
|---|---|
| Product Name | Bronze Graphite Guide Bushing |
| Material | CuSn8 / CuAl10Ni5Fe4 Bronze |
| Lubrication Type | Solid graphite plug self-lubrication |
| Structure Type | Straight / Flanged / Shoulder |
| Hardness | HB 70–120 (depending on alloy type) |
| Surface Finish | Precision machined with graphite inserts |
| Working Condition | Dry running, no external lubrication required |
| Load Capacity | High load and continuous operation suitable |
| Custom Size | Available according to drawings |
Three Key Customization Aspects, Tailored to Your Needs
Matching different customization methods to meet various requirements.
Precision Manufacturing, Excellent Quality
Enhanced Self-Lubrication Efficiency
Graphite inserts continuously release lubricant during motion, ensuring stable lubrication film formation and reducing dependency on external oil supply systems.
High Structural Load Stability
Bronze matrix provides strong mechanical support, allowing reliable performance under heavy radial pressure and repeated impact conditions in industrial applications.
Reduced Friction Fluctuation
Uniform lubricant distribution minimizes sudden changes in resistance, ensuring smoother guiding movement and improving motion consistency during continuous operation cycles.
Improved Surface Protection
Internal lubrication layer prevents direct metal contact, effectively reducing surface damage and maintaining dimensional accuracy over long-term usage.
Refined Service, Shortened Delivery Time
From design review to delivery, we provide dedicated one-on-one follow-up throughout the entire process.
Consultation → Provide Drawings → Design Review & Quotation → Order Processing → Quality Inspection → On-time Delivery → After-sales Follow-up
Our Advantages
Backed by over 25 years of engineering experience, our team offers comprehensive services—from customized mold design and precision machining to full-scale production—supported by a robust quality assurance system and proactive customer service. Certified under ISO9001, ISO14001, and IATF 16949, we continually strive for excellence in quality, innovation, and customer satisfaction.
Over 100,000 units in stock, with 2-hour shipment for standard products.
Implementing a three-stage inspection system—initial material check, in-process inspection, and final inspection.
Large inventory and quick turnaround, ensuring on-time delivery with 100% product inspection.
Application Range
The preferred choice across various industries.
FAQ
1. What is a Bronze Graphite Guide Bushing?
It is a self-lubricating guide component made of bronze with embedded graphite plugs, used for smooth motion in molds and machinery.
2. How does the lubrication system work?
Graphite inserts release lubrication gradually during operation, forming a continuous low-friction layer on the contact surface.
3. Does it require external oil or grease?
No, it is designed for oil-free operation, reducing maintenance and ensuring reliable performance in dry running conditions.
4. Where is it commonly used?
It is widely applied in injection molds, stamping dies, die casting molds, and industrial automation equipment.
5. Can it be customized?
Yes, we provide custom sizes, structures, and materials based on drawings or specific application requirements.
