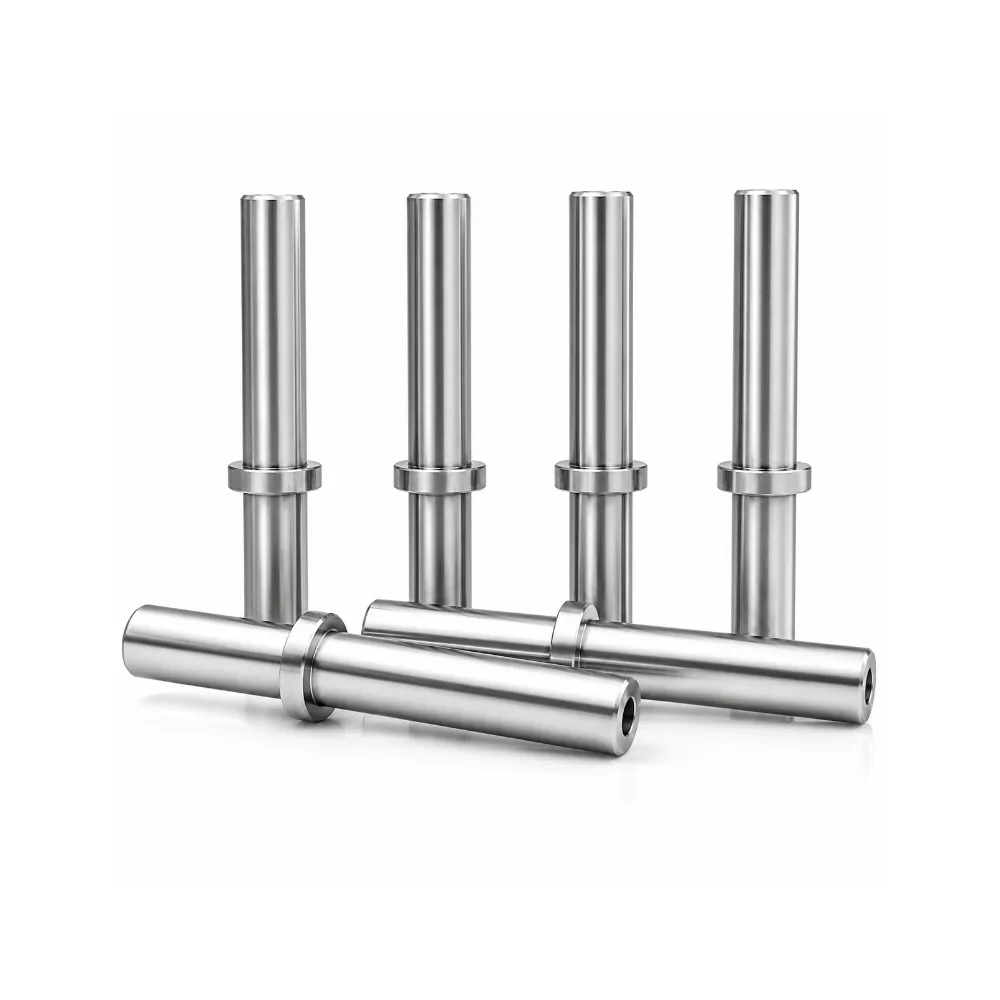

Cross Inner Guide Post
Cross Inner Guide Post is designed for precise internal positioning in stamping dies, punch dies, and compact tooling assemblies. Its cross inner structure helps guide die components smoothly while maintaining stable movement during repeated production cycles. Made from hardened bearing steel and finished through precision grinding, it offers reliable strength, wear resistance, and dimensional consistency.
- Saves Space In Compact Dies: Fits tight internal tooling structures easily.
- Guides Plates With Better Control: Improves movement accuracy during die operation.
- Handles Repeated Stamping Impact: Maintains stability under continuous production loads.
- Supports Custom Mold Component Designs: Matches different tooling requirements flexibly.
Product Description
Introduction
Cross Inner Guide Post is a precision guiding component used in stamping dies, progressive dies, punch dies, and mold guiding systems. It is designed to provide accurate internal guidance for die plates and moving mold components, helping maintain stable alignment during repeated production cycles. The cross-style inner structure supports reliable positioning, reduces movement deviation, and improves overall tooling accuracy in precision manufacturing applications.
Manufactured from high-quality bearing steel such as SUJ2 or GCr15, the Cross Inner Guide Post is processed through CNC machining, heat treatment, precision grinding, and polishing. These processes help achieve high hardness, smooth surface finish, excellent dimensional accuracy, and strong wear resistance. The product page highlights that this type of guide post is available in standard specifications, with inventory supply and non-standard customization by drawing.
Cross Inner Guide Posts are widely used in metal stamping dies, precision punch tooling, automotive hardware molds, electronic component dies, industrial forming tools, and customized mold assemblies. They are suitable for applications requiring compact internal guidance, stable plate movement, and long-term tooling reliability. Standard sizes can support common die structures, while OEM and custom dimensions are available for specialized production needs.
Specifications
| Parameter | Specification |
|---|---|
| Product Name | Cross Inner Guide Post |
| Material | SUJ2 / GCr15 Bearing Steel |
| Surface Finish | Precision Ground & Polished |
| Hardness | HRC 58-62 |
| Diameter Range | Ø6 mm – Ø50 mm |
| Length Range | 30 mm – 400 mm |
| Guiding Type | Internal Die Guidance |
| Structure Type | Cross Inner Guide Design |
| Straightness | ≤0.005 mm/100 mm |
| Surface Treatment | Hard Chrome Optional |
| Installation Type | Press Fit / Custom Mounting |
| Precision Grade | High Precision |
| Operating Condition | Continuous Stamping Operation |
| Service Life | Long-Term Industrial Use |
| Customization | Standard Stock / OEM Drawing Available |
Three Key Customization Aspects, Tailored to Your Needs
Matching different customization methods to meet various requirements.
Precision Manufacturing, Excellent Quality
Compact Internal Guidance Design
Designed for limited die space, it provides stable internal guidance while helping maintain efficient mold structure layout and reliable component movement.
Improved Plate Movement Accuracy
Supports controlled movement between die plates, helping reduce offset, improve repeatability, and maintain consistent positioning during stamping operations.
Suitable For Precision Punch Dies
Works effectively in precision punch die assemblies where accurate internal guiding, compact installation, and stable long-term performance are required.
Flexible Non-Standard Customization
Available for custom drawings and special specifications, allowing manufacturers to match different die structures, dimensions, and production requirements.
Refined Service, Shortened Delivery Time
From design review to delivery, we provide dedicated one-on-one follow-up throughout the entire process.
Consultation → Provide Drawings → Design Review & Quotation → Order Processing → Quality Inspection → On-time Delivery → After-sales Follow-up
Our Advantages
Backed by over 25 years of engineering experience, our team offers comprehensive services—from customized mold design and precision machining to full-scale production—supported by a robust quality assurance system and proactive customer service. Certified under ISO9001, ISO14001, and IATF 16949, we continually strive for excellence in quality, innovation, and customer satisfaction.
Over 100,000 units in stock, with 2-hour shipment for standard products.
Implementing a three-stage inspection system—initial material check, in-process inspection, and final inspection.
Large inventory and quick turnaround, ensuring on-time delivery with 100% product inspection.
Application Range
The preferred choice across various industries.
FAQ
What is a Cross Inner Guide Post?
A Cross Inner Guide Post is a precision guiding component used inside stamping dies, punch dies, and compact mold assemblies to guide moving plates and maintain accurate positioning.
What is the function of a Cross Inner Guide Post?
Its main function is to provide stable internal guidance, reduce plate movement deviation, improve die alignment accuracy, and support smooth operation during repeated stamping cycles.
What materials are commonly used for Cross Inner Guide Posts?
Cross Inner Guide Posts are commonly manufactured from SUJ2 or GCr15 bearing steel, offering high hardness, strong wear resistance, and reliable long-term performance.
Can Cross Inner Guide Posts be customized?
Yes. Custom diameters, lengths, tolerances, surface treatments, and special structures can be produced according to customer drawings or specific tooling requirements.
Where are Cross Inner Guide Posts commonly used?
They are widely used in metal stamping dies, progressive dies, precision punch dies, automotive hardware molds, electronic component tooling, and custom industrial mold assemblies.
