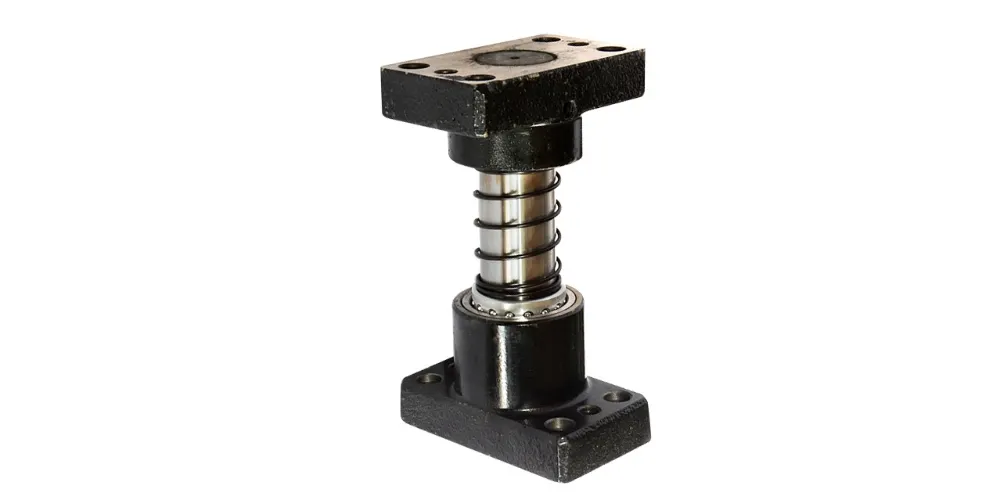

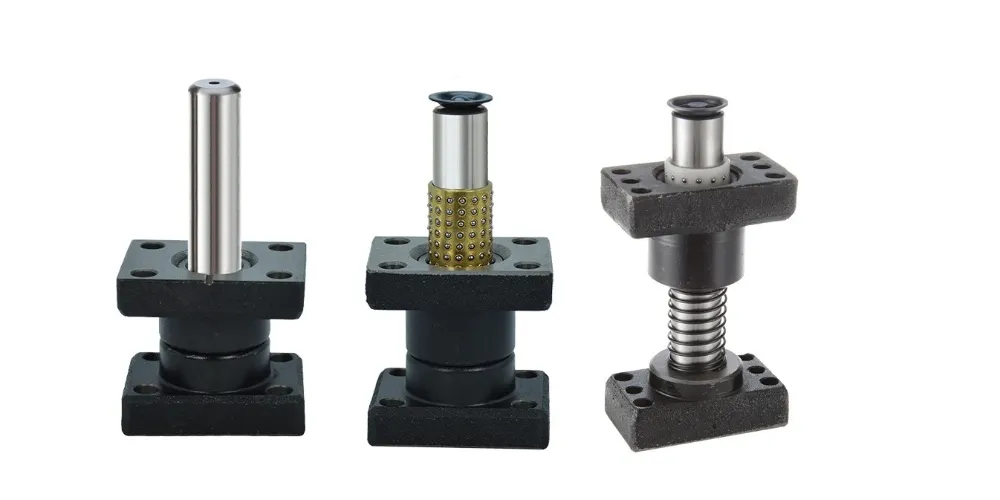

Stamping Guide Pillar
Stamping Guide Pillar is an essential component for die-guiding systems used in metal forming and precision manufacturing processes. It provides controlled movement and accurate alignment between tooling sections, helping maintain product consistency throughout production. Made from high-quality hardened steel and finished with precision machining techniques, it delivers excellent durability and dimensional accuracy. Its robust design supports demanding industrial applications, making it suitable for high-volume stamping operations that require dependable performance and long-term operational stability.
- Cycle Stability: Maintains accuracy through repeated stamping operations
- Long Endurance: Resists fatigue during extended production runs
- Easy Integration: Fits precision dies with minimal adjustment
- Smooth Movement: Reduces resistance for efficient mold action
Product Description
Introduction
Stamping Guide Pillar is a critical guiding component used in stamping dies and precision tooling systems to ensure accurate alignment between upper and lower die sections. By maintaining consistent positioning throughout the stamping process, it helps improve production accuracy, reduce component wear, and extend the service life of mold assemblies. It is widely applied in automotive, electronics, appliance, and metal fabrication industries where precision and reliability are essential.
Manufactured from premium-grade bearing steel or alloy steel materials such as SUJ2 and SKD11, the stamping guide pillar undergoes precision grinding and advanced heat treatment processes. These manufacturing methods provide exceptional hardness, dimensional stability, and wear resistance. The smooth surface finish minimizes friction during operation, enabling precise movement and reducing maintenance requirements in high-cycle production environments.
Designed to perform under demanding industrial conditions, the stamping guide pillar offers reliable guiding performance even under heavy loads and continuous operation. It can be supplied in various diameters, lengths, and tolerance grades to meet different die-set requirements. Compatible with international mold standards, the product is suitable for new tooling projects as well as replacement applications. Custom manufacturing services are available according to customer drawings, specifications, and special performance requirements, making it an ideal solution for precision stamping systems requiring long-term operational stability and high manufacturing efficiency.
Specifications
| Item | Specification |
|---|---|
| Product Name | Stamping Guide Pillar |
| Material | SUJ2 / SKD11 / SCM440 |
| Hardness | HRC 58–62 |
| Surface Treatment | Polishing / Hard Chrome Plating |
| Precision Grade | Precision Ground |
| Surface Roughness | Ra 0.2 – Ra 0.8 |
| Diameter Range | 5mm – 80mm |
| Length Range | 20mm – 800mm |
| Straightness | ≤0.01mm/100mm |
| Tolerance | Custom Available |
| Load Capacity | Heavy-Duty Industrial Use |
| Custom Service | OEM & ODM Supported |
Three Key Customization Aspects, Tailored to Your Needs
Matching different customization methods to meet various requirements.
Precision Manufacturing, Excellent Quality
High-Speed Production Support
Engineered for rapid stamping operations, the guide pillar maintains stable guidance accuracy during continuous cycles, helping improve productivity and reduce manufacturing interruptions.
Superior Fatigue Strength
Built to endure repetitive mechanical stress, it offers excellent fatigue resistance, ensuring dependable performance and structural reliability throughout extended production periods.
Precision Die Compatibility
Manufactured to strict dimensional standards, the guide pillar integrates seamlessly with precision die systems, supporting accurate assembly and consistent operational results.
Reduced Operational Friction
Optimized surface processing minimizes contact resistance between moving components, promoting smoother motion and enhancing overall efficiency in demanding tooling applications.
Refined Service, Shortened Delivery Time
From design review to delivery, we provide dedicated one-on-one follow-up throughout the entire process.
Consultation → Provide Drawings → Design Review & Quotation → Order Processing → Quality Inspection → On-time Delivery → After-sales Follow-up
Our Advantages
Backed by over 25 years of engineering experience, our team offers comprehensive services—from customized mold design and precision machining to full-scale production—supported by a robust quality assurance system and proactive customer service. Certified under ISO9001, ISO14001, and IATF 16949, we continually strive for excellence in quality, innovation, and customer satisfaction.
Over 100,000 units in stock, with 2-hour shipment for standard products.
Implementing a three-stage inspection system—initial material check, in-process inspection, and final inspection.
Large inventory and quick turnaround, ensuring on-time delivery with 100% product inspection.
Application Range
The preferred choice across various industries.
FAQ
Q1: What is a stamping guide pillar used for?
A stamping guide pillar is used to guide and align upper and lower die sections during metal stamping operations, ensuring accurate movement and consistent production quality.
Q2: What materials are commonly used for stamping guide pillars?
They are typically manufactured from high-quality materials such as SUJ2, SKD11, and SCM440, which provide excellent hardness, wear resistance, and durability.
Q3: Can stamping guide pillars be customized?
Yes. Custom diameters, lengths, tolerances, materials, and surface treatments are available according to customer drawings and tooling requirements.
Q4: What surface treatments are available?
Common options include precision polishing, hard chrome plating, and anti-corrosion treatments to improve wear resistance and extend service life.
Q5: Which industries use stamping guide pillars?
They are widely used in automotive manufacturing, electronics production, metal stamping plants, appliance manufacturing, and industrial tooling applications.
