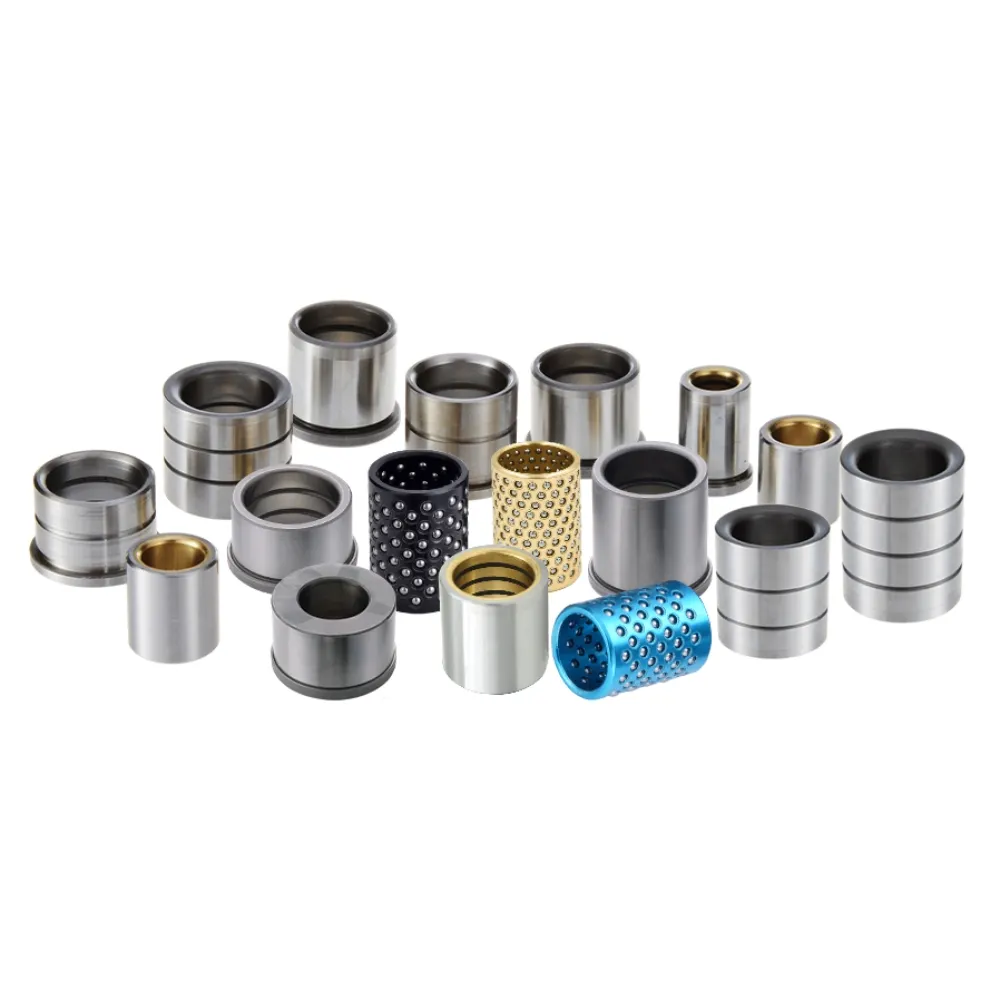

External Guide Bushing
External Guide Bushing is a mold component used in external guiding systems to support accurate positioning and controlled movement of mold assemblies. It helps stabilize the interaction between guide pillars and mold structures, ensuring smooth operation during repeated production cycles. With durable construction and precise machining, it contributes to reliable performance and improved efficiency in industrial molding applications.
Product Description
Introduction
External Guide Bushing is a precision component installed on the outer guiding system of mold bases to ensure accurate alignment between guide pillars and mold plates. It supports smooth and stable movement during repeated mold operations, reducing friction and minimizing positional deviation. This helps maintain consistent machining accuracy and improves overall reliability in industrial molding processes.
The product is manufactured from high-quality materials such as bearing steel, alloy steel, or bronze, followed by heat treatment and precision grinding. These processes provide excellent hardness, strong wear resistance, and stable dimensional accuracy under continuous high-load and high-speed operating conditions. The finely finished inner surface ensures smooth sliding contact and long service life in demanding production environments.
External Guide Bushing is widely used in injection mold bases, stamping die sets, plastic mold frames, automotive mold systems, and industrial automation equipment. It is also applied in die casting molds and heavy-duty tooling systems. Compatible with international standards such as MISUMI, HASCO, DME, DIN, and ISO, it can be customized according to drawings or specific requirements. With reliable performance and stable guiding accuracy, it is an essential component for improving mold efficiency, reducing maintenance costs, and ensuring consistent production quality.
Specifications
| Item | Description |
|---|---|
| Product Name | External Guide Bushing |
| Material | SUJ2, GCr15, SKD11, Bronze |
| Hardness | HRC 58–62 |
| Surface Treatment | Precision grinding / Anti-rust coating |
| Structure Type | External type / Straight type / Flanged type |
| Tolerance | High precision machining standard |
| Lubrication | Oil groove / Self-lubricating optional |
| Size Range | Standard and custom sizes available |
| Service Life | Long cycle durability under high load |
Three Key Customization Aspects, Tailored to Your Needs
Matching different customization methods to meet various requirements.
Precision Manufacturing, Excellent Quality
Improved External Load Support
Outer positioning structure enhances load distribution across guiding surfaces, improving stability and reducing stress concentration during continuous mold operation cycles.
Enhanced Installation Accessibility
External mounting design allows easier assembly and replacement, reducing maintenance time and improving overall service efficiency in production environments.
Stable Directional Guidance Control
Maintains precise movement alignment between mold components, ensuring consistent guiding accuracy even under high-speed and repetitive working conditions.
Reduced Mechanical Wear Interaction
Optimized contact interface minimizes abrasion between mating surfaces, helping extend service life and maintain long-term operational reliability.
Refined Service, Shortened Delivery Time
From design review to delivery, we provide dedicated one-on-one follow-up throughout the entire process.
Consultation → Provide Drawings → Design Review & Quotation → Order Processing → Quality Inspection → On-time Delivery → After-sales Follow-up
Our Advantages
Backed by over 25 years of engineering experience, our team offers comprehensive services—from customized mold design and precision machining to full-scale production—supported by a robust quality assurance system and proactive customer service. Certified under ISO9001, ISO14001, and IATF 16949, we continually strive for excellence in quality, innovation, and customer satisfaction.
Over 100,000 units in stock, with 2-hour shipment for standard products.
Implementing a three-stage inspection system—initial material check, in-process inspection, and final inspection.
Large inventory and quick turnaround, ensuring on-time delivery with 100% product inspection.
Application Range
The preferred choice across various industries.
FAQ
1. What is an External Guide Bushing used for?
It is used in mold systems to support external alignment and smooth guiding of mold components during operation.
2. What materials are commonly used?
Common materials include bearing steel, alloy steel, and bronze, selected for strength, hardness, and wear resistance.
3. Can it be used in high-speed production?
Yes, it is designed for stable performance in high-cycle and high-speed industrial molding environments.
4. Is it compatible with standard mold systems?
Yes, it supports MISUMI, HASCO, DME, DIN, and ISO standard mold bases.
5. Do you offer custom production?
Yes, we provide OEM customization including non-standard sizes, drawings, and material options.
