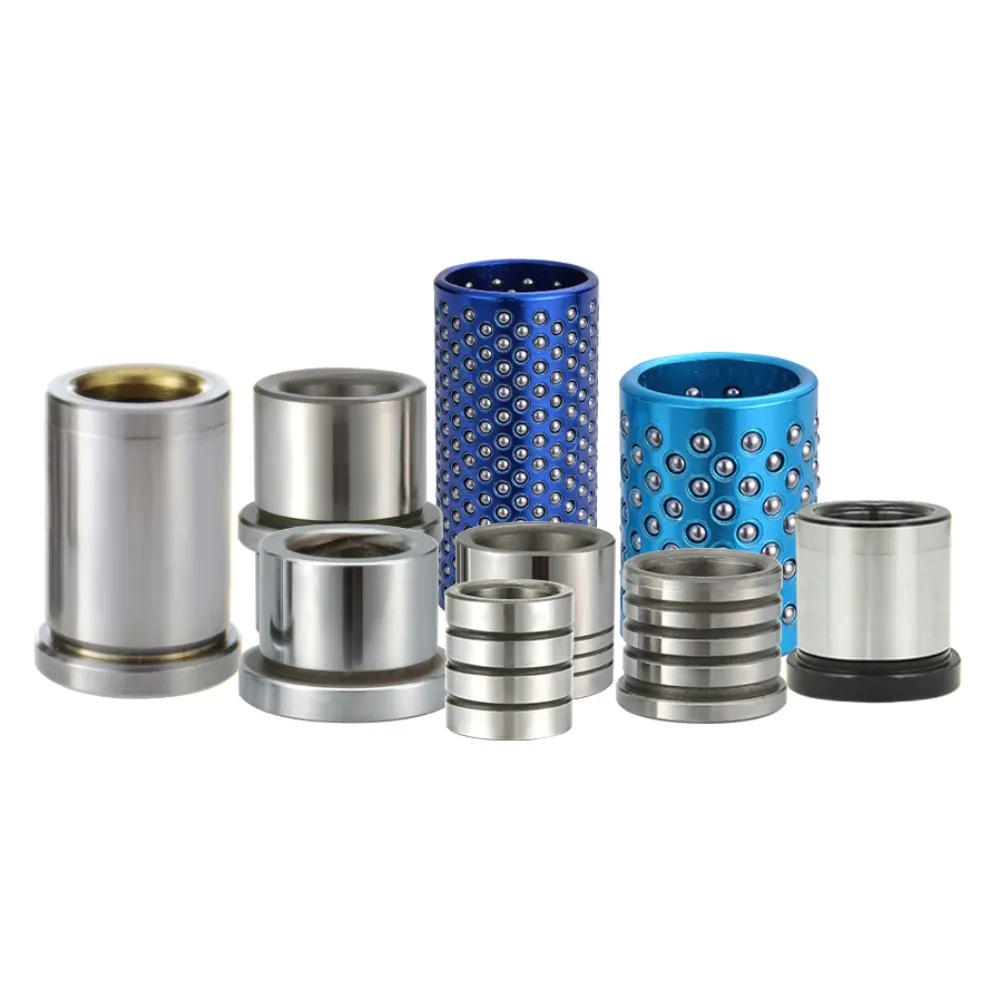

Guide Bushing for Mold
Guide Bushing for Mold is designed to provide precise alignment support within mold assemblies, ensuring controlled movement between guiding components during operation. It helps maintain smooth interaction under repeated mechanical cycles, reducing instability and improving positional consistency. With reliable structural design and stable performance characteristics, it is widely applied in industrial molding systems that require accurate guidance and long-term operational dependability.
Product Description
Introduction
Guide Bushing for Mold is a precision component used in mold base assemblies to ensure accurate alignment between guide pillars and mold plates. It provides stable guiding support during repeated opening and closing cycles of molds, helping maintain consistent positioning accuracy. This reduces mechanical deviation and improves overall operational stability in industrial molding processes.
The product is manufactured from high-quality materials such as bearing steel, alloy steel, or bronze, and processed through heat treatment and precision grinding. These manufacturing steps ensure high hardness, excellent wear resistance, and stable dimensional accuracy even under continuous high-speed and high-load working conditions. The finely finished inner surface allows smooth sliding contact, reducing friction and supporting long-term reliable operation in demanding environments.
Guide Bushing for Mold is widely used in injection mold bases, stamping dies, plastic mold frames, automotive mold systems, die casting molds, and industrial machinery equipment. It is suitable for applications requiring precise guiding and stable repetitive motion. Compatible with international standards such as MISUMI, HASCO, DME, DIN, and ISO, it can also be customized according to drawings or specific requirements. This makes it a reliable solution for improving mold efficiency, extending service life, and ensuring consistent production quality in modern manufacturing industries.
Specifications
| Item | Description |
|---|---|
| Product Name | Guide Bushing for Mold |
| Material | SUJ2, GCr15, SKD11, Bronze |
| Hardness | HRC 58–62 |
| Surface Treatment | Precision grinding / Anti-rust coating |
| Structure Type | Straight / Flanged / Shoulder type |
| Tolerance | High precision machining standard |
| Lubrication | Oil groove / Self-lubricating optional |
| Size Range | Standard and custom sizes available |
| Service Life | Long cycle durability under high load |
