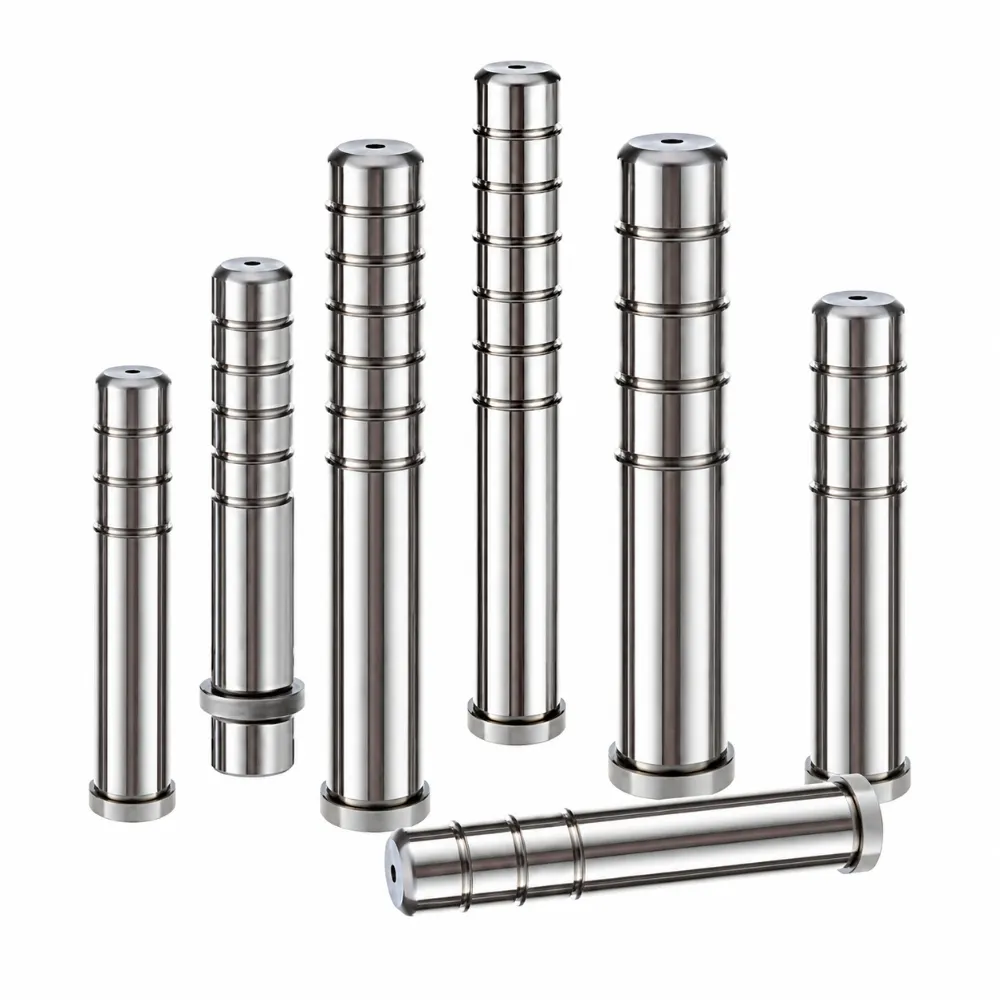

Metal Stamping Die Guide Post
Metal Stamping Die Guide Posts are designed to provide dependable guidance and structural support for precision die assemblies. Manufactured from premium-grade steel and processed with advanced machining technology, they deliver smooth operation and excellent resistance to deformation during repeated production cycles. These components help improve die stability, increase production consistency, and protect critical tooling parts from premature damage. Suitable for a wide range of metal forming and stamping applications, they offer reliable performance in both standard and customized tooling systems.
- Optimized Surface Hardness Performance: Improves durability against continuous friction effectively.
- Stable Operation Under High Speeds: Maintains smooth guidance during rapid stamping.
- Precision Ground For Consistency: Ensures uniform movement across production cycles.
- Adaptable To Diverse Tooling Systems: Supports multiple industrial die configurations reliably.
Product Description
Introduction
Metal Stamping Die Guide Post is an essential component used in stamping dies, progressive dies, and precision tooling systems. It is designed to ensure accurate alignment between the upper and lower die sections during production, helping to improve stamping accuracy and maintain consistent product quality. Manufactured from high-quality bearing steel, the guide post offers excellent dimensional stability, smooth movement, and reliable performance in demanding industrial environments.
Through precision grinding, heat treatment, and surface finishing processes, the guide post achieves outstanding hardness, wear resistance, and durability. Its robust construction helps reduce friction and component wear, extending the service life of both the die set and related tooling components. The precision-guided movement also minimizes alignment errors, reducing downtime and improving overall manufacturing efficiency.
Metal Stamping Die Guide Posts are widely used in automotive parts manufacturing, electronics production, home appliance components, aerospace applications, metal fabrication, and industrial equipment industries. Available in various diameters, lengths, and installation styles, these guide posts can meet different tooling requirements and industry standards. Custom sizes, materials, and surface treatments are also available to support OEM and ODM projects, providing reliable solutions for precision stamping and forming applications worldwide.
Specifications
| Parameter | Specification |
|---|---|
| Product Name | Metal Stamping Die Guide Post |
| Material | SUJ2 / GCr15 Bearing Steel |
| Surface Finish | Precision Ground & Polished |
| Hardness | HRC 58-62 |
| Tolerance | ±0.005 mm |
| Straightness | ≤0.003 mm/100 mm |
| Diameter Range | Ø10 mm – Ø80 mm |
| Length Range | 50 mm – 500 mm |
| Surface Treatment | Hard Chrome Plating (Optional) |
| Guiding Type | Plain Bearing / Ball Bearing |
| Installation Type | Press-Fit / Shoulder Type |
| Lubrication | Oil Groove Optional |
| Standard | DIN, JIS, MISUMI Standard |
| Service Life | Long-Term Industrial Use |
| Customization | OEM & ODM Available |
