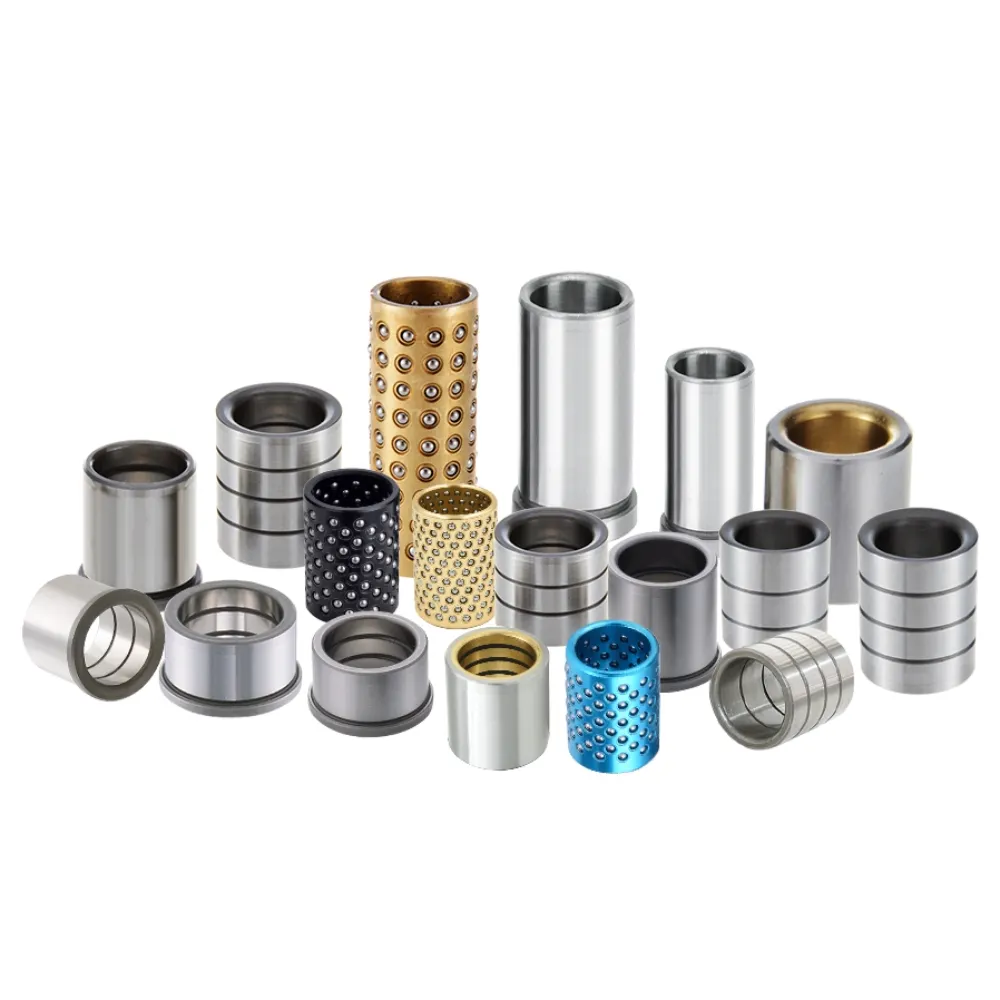

Mold Frame Guide Bushing
Mold Frame Guide Bushing is designed for use in mold frame structures to support precise alignment and controlled movement of guiding components. It helps ensure stable interaction between parts during continuous operation, maintaining smooth performance under repeated mechanical cycles. With durable construction and consistent functionality, it contributes to reliable mold operation and improved manufacturing efficiency in industrial production environments.
Product Description
Introduction
Mold Frame Guide Bushing is a precision component used in mold frame assemblies to ensure accurate alignment between guide pillars and mold structures. It provides stable guiding performance during repeated mold opening and closing cycles, helping maintain consistent positioning accuracy. This reduces mechanical deviation and improves overall operational stability in industrial molding systems.
The product is manufactured from high-quality materials such as bearing steel, alloy steel, or bronze, and processed through heat treatment and precision grinding. These manufacturing processes ensure high hardness, excellent wear resistance, and stable dimensional accuracy under continuous high-load and high-speed working conditions. The finely finished inner surface allows smooth sliding contact, reducing friction and supporting long-term reliable performance in demanding production environments.
Mold Frame Guide Bushing is widely used in mold frame systems, injection mold bases, stamping dies, plastic mold assemblies, die casting molds, automotive mold components, and industrial machinery equipment. It is suitable for applications requiring precise alignment and stable repetitive motion. Compatible with international standards such as MISUMI, HASCO, DME, DIN, and ISO, it can also be customized according to drawings or specific requirements. This makes it a reliable solution for improving mold efficiency, extending service life, and ensuring consistent production quality in modern manufacturing industries.
Specifications
| Item | Description |
|---|---|
| Product Name | Mold Frame Guide Bushing |
| Material | SUJ2, GCr15, SKD11, Bronze |
| Hardness | HRC 58–62 |
| Surface Treatment | Precision grinding / Anti-rust coating |
| Structure Type | Straight / Flanged / Shoulder type |
| Tolerance | High precision machining standard |
| Lubrication | Oil groove / Self-lubricating optional |
| Size Range | Standard and custom sizes available |
| Service Life | Long cycle durability under high load |
Three Key Customization Aspects, Tailored to Your Needs
Matching different customization methods to meet various requirements.
Precision Manufacturing, Excellent Quality
Improved Frame Structural Alignment
Enhances overall mold frame positioning accuracy, ensuring stable coordination between structural components during repetitive mechanical operation cycles.
Enhanced Load Bearing Distribution Efficiency
Optimized geometry distributes operational forces evenly across contact areas, improving durability and reducing localized stress accumulation in mold systems.
Reduced Friction Contact Degradation
Precision finishing minimizes uneven surface interaction, helping lower wear rates and maintain smooth guiding performance over extended use.
Stable Repetitive Motion Control
Ensures consistent guiding behavior during continuous cycling, supporting reliable movement accuracy in high-frequency industrial production environments.
Refined Service, Shortened Delivery Time
From design review to delivery, we provide dedicated one-on-one follow-up throughout the entire process.
Consultation → Provide Drawings → Design Review & Quotation → Order Processing → Quality Inspection → On-time Delivery → After-sales Follow-up
Our Advantages
Backed by over 25 years of engineering experience, our team offers comprehensive services—from customized mold design and precision machining to full-scale production—supported by a robust quality assurance system and proactive customer service. Certified under ISO9001, ISO14001, and IATF 16949, we continually strive for excellence in quality, innovation, and customer satisfaction.
Over 100,000 units in stock, with 2-hour shipment for standard products.
Implementing a three-stage inspection system—initial material check, in-process inspection, and final inspection.
Large inventory and quick turnaround, ensuring on-time delivery with 100% product inspection.
Application Range
The preferred choice across various industries.
FAQ
1. What is a Mold Frame Guide Bushing used for?
It is used in mold frame systems to ensure precise alignment and smooth guiding of moving mold components.
2. What materials are commonly used?
Common materials include bearing steel, alloy steel, and bronze, selected for strength, wear resistance, and stability.
3. Can it work in high-cycle production environments?
Yes, it is designed for stable performance under continuous and high-frequency industrial molding operations.
4. Is it compatible with standard mold systems?
Yes, it supports international standards such as MISUMI, HASCO, DME, DIN, and ISO.
5. Can it be customized?
Yes, OEM customization is available, including dimensions, drawings, and material requirements.
