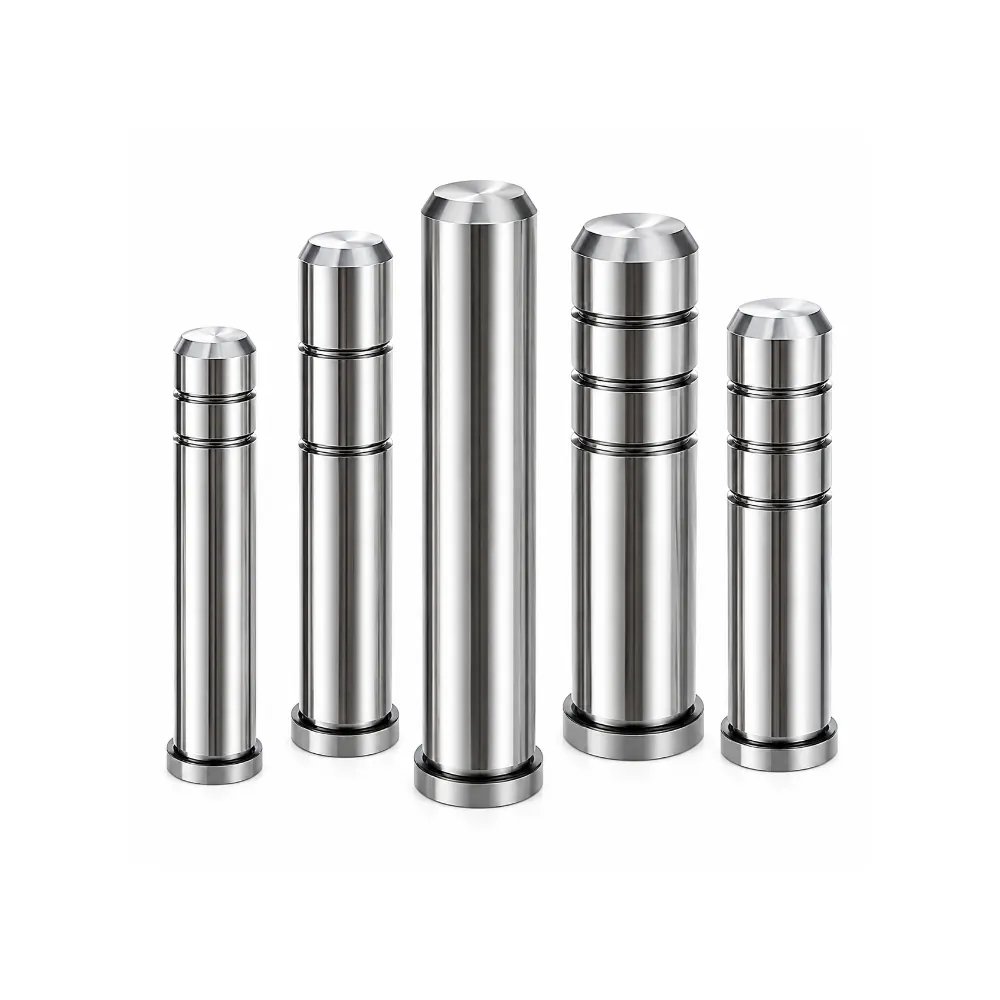

Plastic Mold Angular Guide Pillar
Plastic Mold Angular Guide Pillar is engineered for molding systems that require controlled angular movement and accurate mechanical guidance. Its precision-machined design helps direct moving mold components while maintaining stable positioning throughout production cycles. Manufactured from high-grade hardened steel, it offers excellent strength, wear resistance, and dimensional consistency.
- Maintains Accurate Angular Component Movement: Ensures controlled guidance during mold operation.
- Designed For Advanced Mold Mechanisms: Supports sophisticated slide and action systems.
- Provides Consistent Mechanical Positioning Stability: Helps maintain reliable alignment throughout use.
- Suitable For Continuous Production Environments: Delivers dependable performance during extended operation.
Product Description
Introduction
Plastic Mold Angular Guide Pillar is a precision mold component designed to provide controlled guidance and accurate positioning for angled movement mechanisms in plastic injection molds. It plays an important role in supporting slide systems, side-action assemblies, and complex mold structures that require guided angular motion. By ensuring precise alignment during mold operation, it helps improve molding accuracy, reduce component wear, and maintain consistent production quality.
Manufactured from premium bearing steel such as SUJ2 or GCr15, the Plastic Mold Angular Guide Pillar undergoes precision machining, heat treatment, grinding, and polishing processes to achieve outstanding hardness, dimensional stability, and wear resistance. The precision-finished surface promotes smooth interaction with mating components, reducing friction while supporting accurate movement control. Its hardened construction ensures reliable performance and long service life under continuous industrial operating conditions.
Plastic Mold Angular Guide Pillars are widely used in automotive plastic molds, consumer electronics housings, medical device components, packaging products, household appliances, and precision engineering applications. Available in various diameters, lengths, and angle configurations, they can be integrated into different mold designs and slide mechanisms. Custom manufacturing services are available to meet OEM requirements, providing dependable guidance solutions for advanced injection molding systems and high-volume production environments.
Specifications
| Parameter | Specification |
|---|---|
| Product Name | Plastic Mold Angular Guide Pillar |
| Material | SUJ2 / GCr15 Bearing Steel |
| Surface Finish | Precision Ground & Polished |
| Hardness | HRC 58-62 |
| Diameter Range | Ø12 mm – Ø80 mm |
| Length Range | 80 mm – 800 mm |
| Angle Configuration | Custom Available |
| Straightness | ≤0.005 mm/100 mm |
| Surface Treatment | Hard Chrome Optional |
| Installation Type | Mold Mounted |
| Precision Grade | High Precision |
| Operating Condition | Continuous Production |
| Service Life | Long-Term Industrial Use |
| Customization | OEM & ODM Available |
Three Key Customization Aspects, Tailored to Your Needs
Matching different customization methods to meet various requirements.
Precision Manufacturing, Excellent Quality
Precise Angular Guidance Control
Provides accurate directional guidance for angled mold movements, helping maintain stable positioning and improving operational precision in advanced tooling systems.
Supports Complex Side-Action Mechanisms
Designed for molds incorporating sliders and side-action assemblies, ensuring coordinated movement and dependable functionality during demanding production processes.
Enhanced Structural Stability
The robust construction helps maintain consistent guiding performance under varying operational loads while supporting long-term mechanical reliability.
Improved Mold Mechanism Efficiency
Optimized design contributes to smoother component interaction, helping increase overall mold efficiency and supporting uninterrupted manufacturing operations.
Refined Service, Shortened Delivery Time
From design review to delivery, we provide dedicated one-on-one follow-up throughout the entire process.
Consultation → Provide Drawings → Design Review & Quotation → Order Processing → Quality Inspection → On-time Delivery → After-sales Follow-up
Our Advantages
Backed by over 25 years of engineering experience, our team offers comprehensive services—from customized mold design and precision machining to full-scale production—supported by a robust quality assurance system and proactive customer service. Certified under ISO9001, ISO14001, and IATF 16949, we continually strive for excellence in quality, innovation, and customer satisfaction.
Over 100,000 units in stock, with 2-hour shipment for standard products.
Implementing a three-stage inspection system—initial material check, in-process inspection, and final inspection.
Large inventory and quick turnaround, ensuring on-time delivery with 100% product inspection.
Application Range
The preferred choice across various industries.
FAQ
What is a Plastic Mold Angular Guide Pillar?
A Plastic Mold Angular Guide Pillar is a precision mold component used to guide and support angular movement in slide-core systems and side-action mold mechanisms.
What is the function of an Angular Guide Pillar?
Its primary function is to provide accurate guidance and positioning for moving mold components, ensuring smooth and controlled angular motion during mold operation.
What materials are commonly used for Plastic Mold Angular Guide Pillars?
Plastic Mold Angular Guide Pillars are typically manufactured from high-quality bearing steel such as SUJ2 or GCr15, offering excellent hardness, wear resistance, and durability.
Can Plastic Mold Angular Guide Pillars be customized?
Yes. Custom diameters, lengths, angle configurations, surface treatments, and tolerance specifications can be manufactured according to customer drawings and mold requirements.
Where are Plastic Mold Angular Guide Pillars commonly used?
They are widely used in automotive molds, consumer electronics molds, medical device molds, packaging molds, household appliance molds, and other precision injection molding applications.
