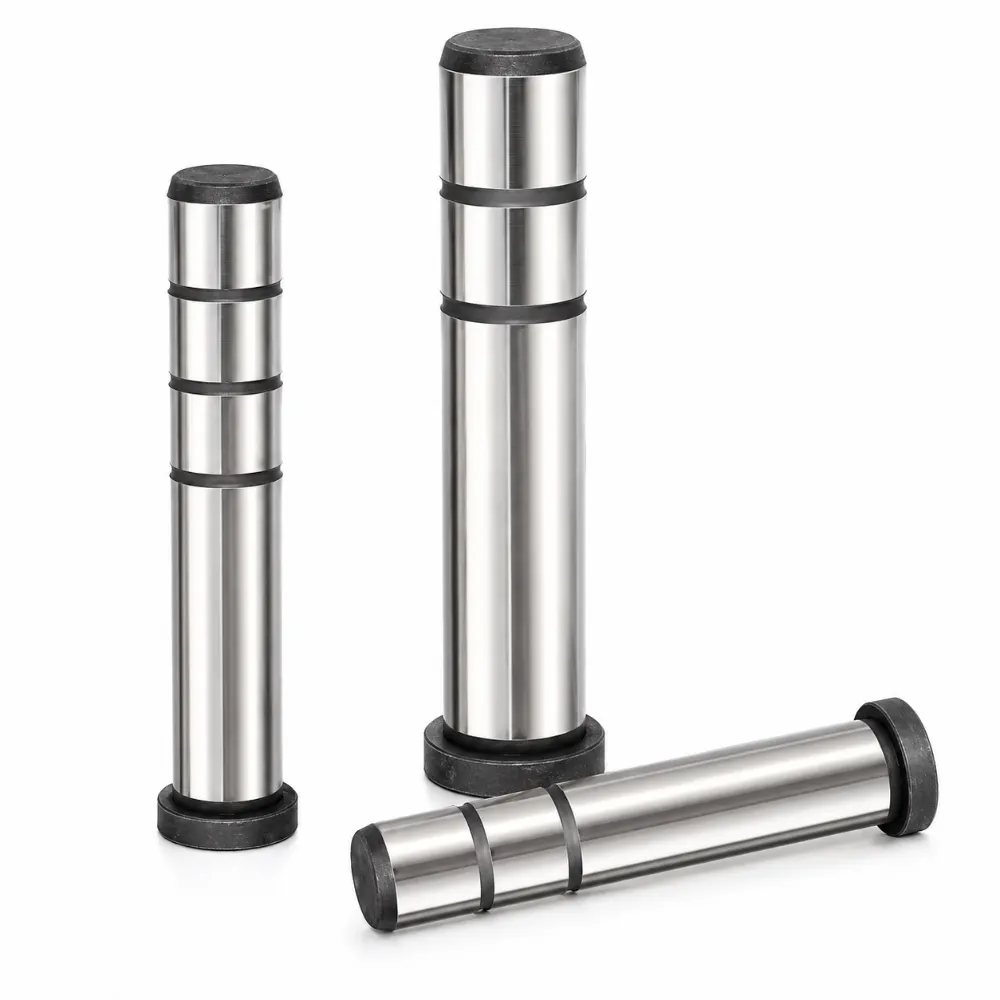

Plastic Mold Guide Post
Plastic Mold Guide Post is developed to provide dependable guidance and positioning for injection mold assemblies. Its precision-engineered structure supports accurate mold alignment while maintaining smooth operation throughout repeated opening and closing cycles. Manufactured using premium steel materials and advanced finishing techniques, it delivers excellent durability and dimensional stability.
- Accurate Mold Half Alignment: Ensures consistent positioning during molding cycles.
- Stable Operation In Repeated Use: Maintains reliable performance over extended production.
- High Durability Against Continuous Wear: Supports long service life in molds.
- Suitable For Precision Injection Applications: Meets demanding requirements of mold systems.
Product Description
Introduction
Plastic Mold Guide Post is a precision guiding component designed for injection molds, mold bases, and plastic molding systems. It plays a critical role in maintaining accurate alignment between mold halves during opening and closing operations. Proper guidance helps ensure smooth mold movement, reduces mechanical wear, and improves the dimensional consistency of molded products. Its precision design makes it an essential component in modern plastic injection molding applications.
Manufactured from premium bearing steel such as SUJ2 or GCr15, the Plastic Mold Guide Post undergoes advanced heat treatment, precision grinding, and polishing processes to achieve excellent hardness, surface quality, and dimensional accuracy. The hardened surface provides outstanding wear resistance, while the precision-ground finish helps minimize friction and ensure smooth movement throughout repeated molding cycles. These characteristics contribute to longer mold service life and improved production efficiency.
Plastic Mold Guide Posts are widely used in automotive plastic parts, consumer electronics, medical device housings, packaging products, household appliances, and industrial plastic components. Available in various diameters, lengths, and installation configurations, they can accommodate different mold structures and manufacturing requirements. Custom dimensions, materials, and surface treatments are also available, providing reliable guiding solutions for high-precision molding operations and long-term industrial production.
Specifications
| Parameter | Specification |
|---|---|
| Product Name | Plastic Mold Guide Post |
| Material | SUJ2 / GCr15 Bearing Steel |
| Surface Finish | Precision Ground & Polished |
| Hardness | HRC 58-62 |
| Diameter Range | Ø12 mm – Ø80 mm |
| Length Range | 60 mm – 600 mm |
| Straightness | ≤0.005 mm/100 mm |
| Surface Treatment | Hard Chrome Optional |
| Guiding Type | Mold Alignment Guidance |
| Installation Type | Press Fit |
| Precision Grade | High Precision |
| Operating Condition | Continuous Mold Operation |
| Service Life | Long-Term Industrial Use |
| Customization | OEM & ODM Available |
Three Key Customization Aspects, Tailored to Your Needs
Matching different customization methods to meet various requirements.
Precision Manufacturing, Excellent Quality
Improved Mold Closing Accuracy
Helps ensure precise matching of mold halves during every production cycle, supporting better part quality and reducing dimensional variation effectively.
Enhanced Product Consistency
Accurate guiding performance contributes to repeatable molding results, helping manufacturers maintain stable production standards across large-volume manufacturing operations.
Supports Multi-Cavity Mold Systems
Designed to perform reliably in complex multi-cavity mold structures where consistent alignment and dependable movement are critical requirements.
Minimizes Mold Component Stress
Promotes balanced movement throughout the mold assembly, helping reduce unnecessary stress on related components and improving overall system longevity.
Refined Service, Shortened Delivery Time
From design review to delivery, we provide dedicated one-on-one follow-up throughout the entire process.
Consultation → Provide Drawings → Design Review & Quotation → Order Processing → Quality Inspection → On-time Delivery → After-sales Follow-up
Our Advantages
Backed by over 25 years of engineering experience, our team offers comprehensive services—from customized mold design and precision machining to full-scale production—supported by a robust quality assurance system and proactive customer service. Certified under ISO9001, ISO14001, and IATF 16949, we continually strive for excellence in quality, innovation, and customer satisfaction.
Over 100,000 units in stock, with 2-hour shipment for standard products.
Implementing a three-stage inspection system—initial material check, in-process inspection, and final inspection.
Large inventory and quick turnaround, ensuring on-time delivery with 100% product inspection.
Application Range
The preferred choice across various industries.
FAQ
What is a Plastic Mold Guide Post?
A Plastic Mold Guide Post is a precision guiding component used in injection molds to ensure accurate alignment between mold halves during opening and closing operations.
What materials are commonly used for Plastic Mold Guide Posts?
Plastic Mold Guide Posts are typically manufactured from high-quality bearing steel such as SUJ2 or GCr15, providing excellent hardness, wear resistance, and durability.
Where are Plastic Mold Guide Posts used?
They are widely used in automotive plastic parts, consumer electronics, medical devices, household appliances, packaging products, and industrial injection molding applications.
Can Plastic Mold Guide Posts be customized?
Yes. Custom diameters, lengths, tolerances, surface treatments, and material specifications can be produced according to customer drawings and mold requirements.
What are the benefits of using a Plastic Mold Guide Post?
It helps improve mold alignment accuracy, ensures smooth mold movement, reduces component wear, enhances production consistency, and extends the service life of injection molds.
