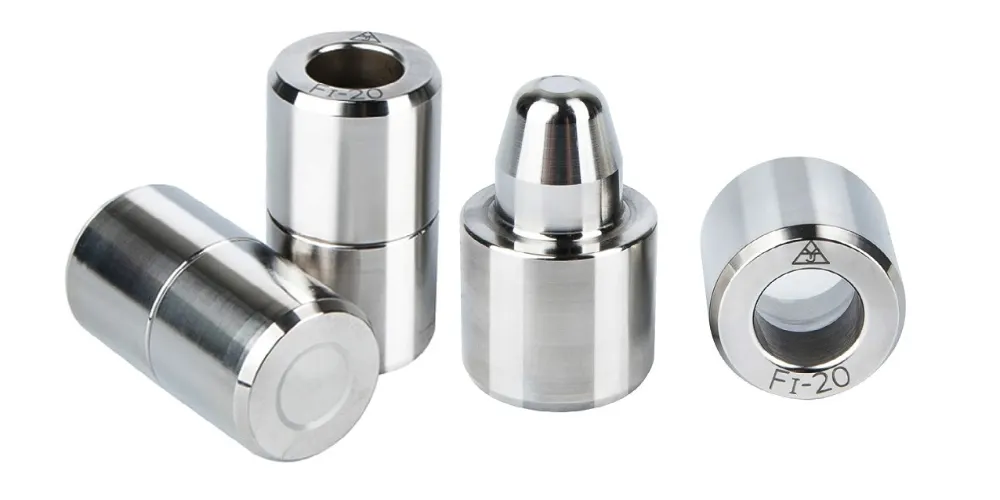

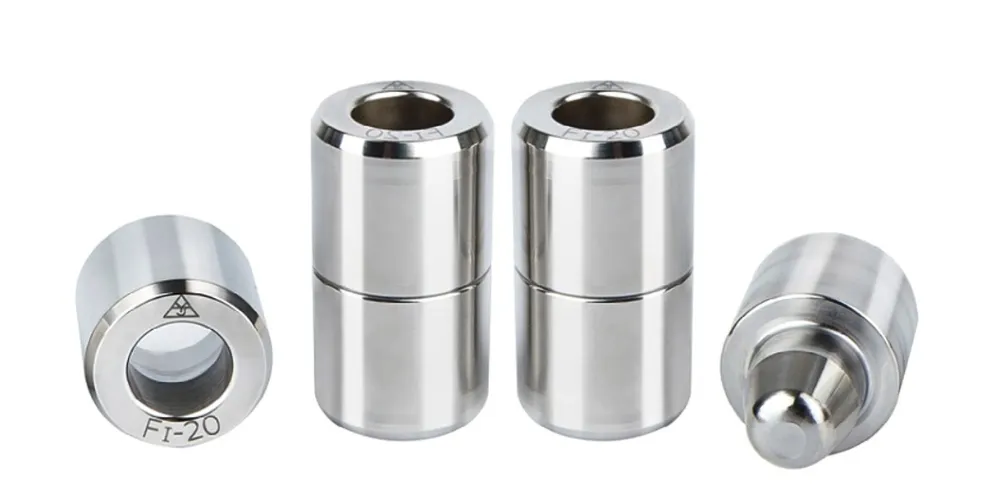

Rubber Mold Guide Pillar
The rubber mold guide pillar is used in molding systems to maintain accurate positioning and controlled movement between mold components. It supports stable operation in rubber processing applications such as compression and injection molding, where consistent alignment is essential. Built from heat-treated steel, it offers reliable mechanical strength and resistance to deformation. Its precision-machined surface helps reduce contact resistance, ensuring smooth guiding action and dependable performance in continuous industrial rubber production environments.
- Stable High Pressure Performance Control: Maintains reliable function under load
- Optimized Mold Movement Synchronization: Ensures smooth coordinated operation cycles
- Long Term Structural Integrity: Prevents deformation during continuous use
- Efficient Assembly Installation Design: Simplifies mold setup and replacement
Product Description
Introduction
The rubber mold guide pillar is a precision component used in rubber molding systems to ensure accurate alignment between mold plates. It is commonly applied in compression, injection, and transfer rubber molding processes where stable guiding performance is required under high temperature and pressure conditions. Its function is to maintain consistent mold positioning and smooth movement during repeated production cycles.
Manufactured from hardened alloy steel with precision grinding, the rubber mold guide pillar provides excellent wear resistance, strength, and dimensional stability. The finely finished surface reduces friction between contacting parts, helping improve mold efficiency and reduce mechanical wear. This ensures reliable performance even in demanding rubber processing environments with continuous operation.
The rubber mold guide pillar can be customized in diameter, length, and tolerance to meet different mold design requirements. It is compatible with international standards such as ISO, DIN, and JIS, and can also be produced according to OEM specifications. Widely used in automotive rubber parts, sealing products, industrial gaskets, and precision elastomer molds, it delivers stable alignment and long service life in modern rubber manufacturing systems.
Specifications
| Item | Description |
|---|---|
| Product Name | Rubber Mold Guide Pillar |
| Type | Mold Guide Post |
| Material | SUJ2 / GCr15 / 100Cr6 / SKD steel |
| Hardness | HRC 58–62 |
| Surface Treatment | Precision grinding / heat treatment |
| Straightness | ≤ 0.005 mm |
| Roundness | ≤ 0.003 mm |
| Concentricity | ≤ 0.01 mm |
| Length Range | 100 mm – 1000 mm (customizable) |
| Tolerance | ISO / DIN standard or OEM drawing |
Three Key Customization Aspects, Tailored to Your Needs
Matching different customization methods to meet various requirements.
Precision Manufacturing, Excellent Quality
Excellent Thermal Resistance Stability
Maintains structural integrity under high temperature rubber molding conditions, ensuring stable guiding performance without deformation during continuous heating and cooling cycles.
Enhanced Compression Load Capacity
Designed to withstand high pressure during rubber compression processes, providing strong support and preventing misalignment under heavy mold closing forces.
Improved Chemical Corrosion Resistance
Resists damage from rubber additives and processing chemicals, maintaining surface quality and extending service life in aggressive molding environments.
Consistent Mold Alignment Accuracy
Ensures precise positioning between mold halves, reducing deviation and improving consistency in rubber product quality during repeated production cycles.
Refined Service, Shortened Delivery Time
From design review to delivery, we provide dedicated one-on-one follow-up throughout the entire process.
Consultation → Provide Drawings → Design Review & Quotation → Order Processing → Quality Inspection → On-time Delivery → After-sales Follow-up
Our Advantages
Backed by over 25 years of engineering experience, our team offers comprehensive services—from customized mold design and precision machining to full-scale production—supported by a robust quality assurance system and proactive customer service. Certified under ISO9001, ISO14001, and IATF 16949, we continually strive for excellence in quality, innovation, and customer satisfaction.
Over 100,000 units in stock, with 2-hour shipment for standard products.
Implementing a three-stage inspection system—initial material check, in-process inspection, and final inspection.
Large inventory and quick turnaround, ensuring on-time delivery with 100% product inspection.
Application Range
The preferred choice across various industries.
FAQ
Q1: What is a rubber mold guide pillar used for?
It is used to ensure precise alignment and smooth movement between mold components in rubber molding processes.
Q2: What materials are commonly used?
It is typically made from hardened steel such as GCr15, SUJ2, or 100Cr6, offering high strength and wear resistance.
Q3: Can it be customized?
Yes, diameter, length, tolerance, and surface treatment can be customized according to specific mold requirements.
Q4: Is it suitable for high-temperature environments?
Yes, it is designed to perform reliably under high temperature and pressure conditions in rubber molding applications.
Q5: Where is it commonly used?
It is widely used in automotive rubber parts, sealing components, gaskets, and industrial rubber product manufacturing.
