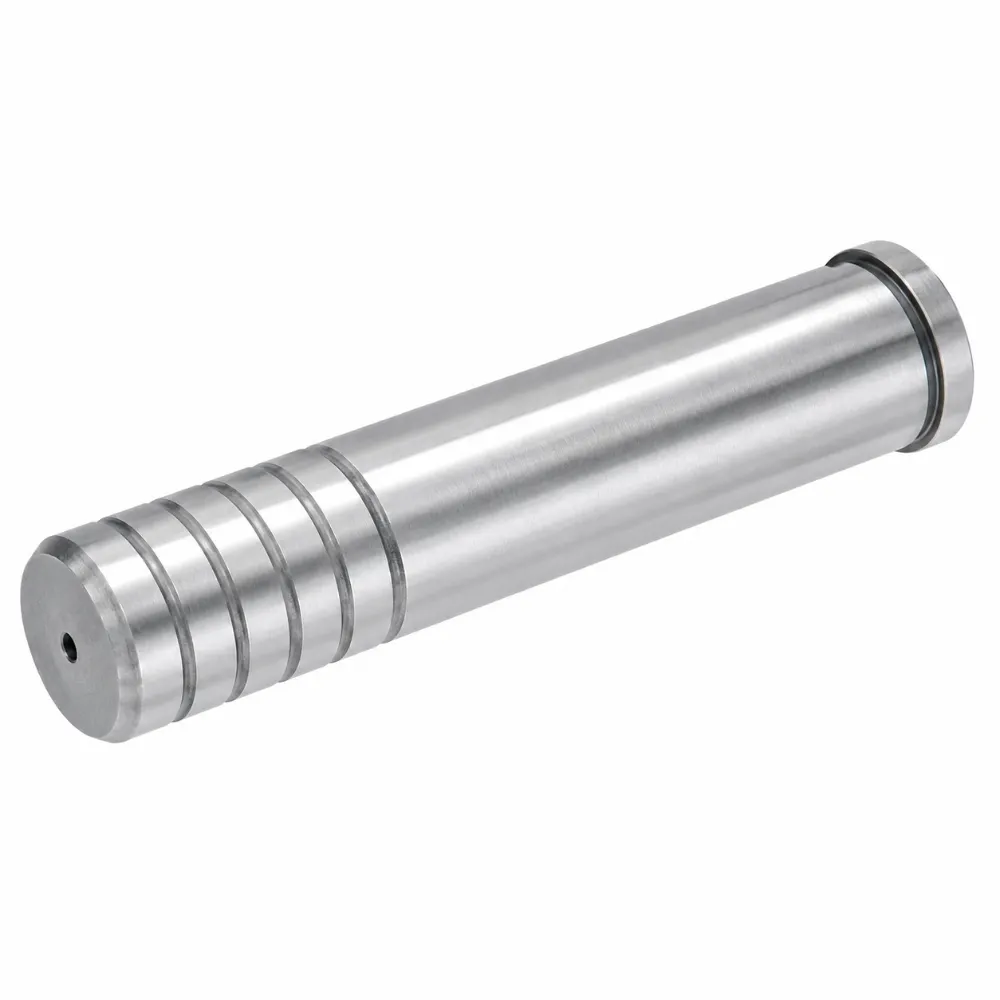

Stripper Guide Pin
Stripper Guide Pin is developed for precision guiding applications in stamping tools and die assemblies. Its durable construction enables accurate positioning of stripper plate components while supporting smooth and controlled movement during production. Manufactured with strict quality standards, the guide pin delivers reliable mechanical performance and excellent resistance to long-term operational stress.
- Enhances Precision During Plate Movement: Supports controlled motion throughout stamping cycles.
- Maintains Accuracy Under Repeated Impact: Delivers dependable performance during continuous operation.
- Optimized For Progressive Die Applications: Suitable for demanding precision tooling systems.
- Supports Efficient High Volume Production: Helps improve productivity and process consistency.
Product Description
Introduction
Stripper Guide Pin is an essential component used in stamping dies, progressive dies, and precision tooling systems where accurate stripper plate movement is required. It helps guide and support the stripper plate throughout the stamping cycle, ensuring smooth operation and maintaining proper alignment between critical die components. Reliable guidance contributes to improved product consistency, reduced operational errors, and enhanced production efficiency in demanding manufacturing environments.
Manufactured from premium bearing steel and processed through precision machining, heat treatment, and grinding technologies, the Stripper Guide Pin offers outstanding dimensional accuracy and long-lasting durability. The hardened surface helps resist wear caused by repeated movement, while the precision-ground finish promotes smooth operation and minimizes friction. These characteristics allow the component to perform reliably during continuous production while helping protect surrounding tooling parts from excessive wear.
Stripper Guide Pins are widely applied in automotive component manufacturing, electronic stamping, household appliance production, hardware processing, and industrial metal forming operations. Available in various diameters, lengths, and tolerance grades, they can be integrated into a wide range of die designs and tooling systems. Custom manufacturing options are also available to meet specific project requirements, providing dependable guiding solutions for precision stamping applications across multiple industries.
Specifications
| Parameter | Specification |
|---|---|
| Product Name | Stripper Guide Pin |
| Material | SUJ2 / GCr15 |
| Hardness | HRC 58-62 |
| Surface Finish | Precision Ground |
| Diameter Range | Ø6-Ø25 mm |
| Length Range | 20-250 mm |
| Straightness | ≤0.003 mm/100 mm |
| Surface Treatment | Optional Hard Chrome |
| Installation Method | Press Fit |
| Precision Grade | High Precision |
| Custom Service | OEM & ODM |
