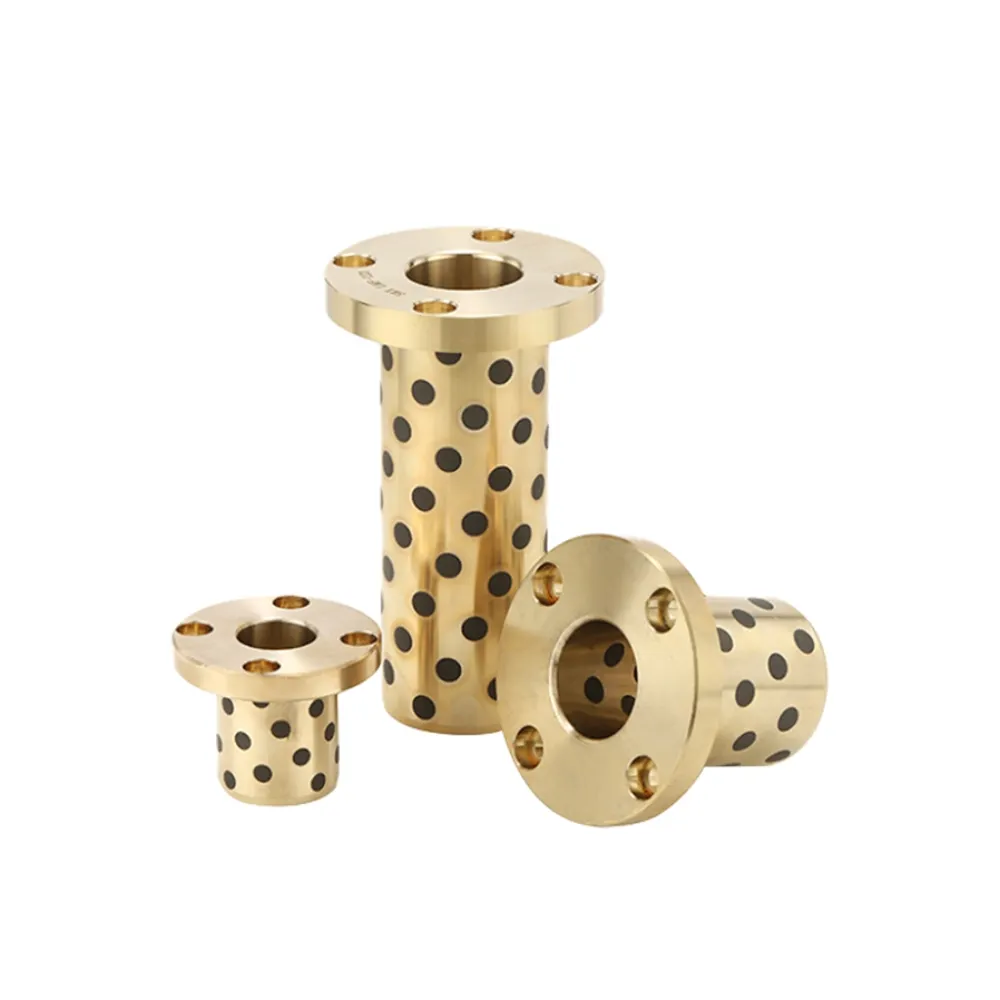

Graphite Guide Bushing
Graphite Guide Bushing is a maintenance-free sliding component designed for stable motion control in mechanical systems. It uses solid lubricant technology to support smooth guidance without external oil supply. Built for industrial applications, it delivers consistent alignment, reliable operation under load, and efficient performance in continuous production environments where durability and stability are essential.
- Self-Contained Lubrication: Eliminates external oil requirements
- Thermal Endurance: Maintains function at high heat
- Structural Integrity: Resists deformation under load
- Extended Operation: Supports long continuous running
Product Description
Introduction
Graphite Guide Bushing is a self-lubricating guiding component designed to deliver stable sliding performance and precise alignment in mold systems and industrial machinery. It uses embedded graphite lubrication technology to enable oil-free operation, reducing friction between moving parts and ensuring smooth motion during continuous working cycles. This makes it highly suitable for applications that require reliable performance and minimal maintenance.
Manufactured from high-quality bronze or copper alloy materials with solid graphite inserts, Graphite Guide Bushing offers excellent wear resistance, strong load-bearing capability, and stable operation under harsh working conditions. The graphite lubrication is evenly distributed within the structure, providing continuous lubrication during operation. Advanced casting, CNC machining, and precision finishing processes ensure accurate dimensions, smooth surfaces, and long-term structural stability even in demanding environments.
Graphite Guide Bushing is widely used in stamping dies, injection molds, heavy machinery, automation systems, and high-temperature industrial equipment. It is suitable for both standard and customized designs, offering flexible options in size, structure, and installation requirements. Its combination of oil-free performance, durability, and high precision makes it an ideal solution for improving operational efficiency, reducing maintenance costs, and ensuring long service life in modern industrial production systems.
Specifications
| Item | Description |
|---|---|
| Product Name | Graphite Guide Bushing |
| Material | Bronze / Copper Alloy + Graphite Inserts |
| Type | Self-Lubricating / Oil-Free |
| Lubrication | Solid Graphite Lubrication |
| Hardness | HB 60–120 (varies by alloy) |
| Tolerance | ±0.01 mm / Precision Grade Available |
| Inner Diameter | Standard or Customized |
| Outer Diameter | Standard or Customized |
| Length | Customized |
| Surface Finish | Precision Machined / Polished |
| Manufacturing Process | Casting + CNC Machining + Graphite Insertion |
| Customization | OEM / ODM Available |
Three Key Customization Aspects, Tailored to Your Needs
Matching different customization methods to meet various requirements.
Precision Manufacturing, Excellent Quality
Oil-Free Operation Capability
Graphite Guide Bushing works without external lubrication, relying on embedded graphite to support continuous sliding motion, making it suitable for environments where oiling is difficult or undesirable.
High Temperature Adaptability
The graphite lubrication structure maintains stable performance under elevated temperatures, ensuring consistent guiding behavior in heat-intensive industrial processes and reducing thermal-related performance degradation.
Stable Wear Performance
The composite bronze and graphite structure reduces surface abrasion during motion, helping maintain consistent dimensional stability and extending component service life in repeated mechanical cycles.
Reliable Dry Running
It supports long-term dry operation without performance loss, ensuring smooth movement in systems requiring uninterrupted functionality and minimal maintenance intervention.
Refined Service, Shortened Delivery Time
From design review to delivery, we provide dedicated one-on-one follow-up throughout the entire process.
Consultation → Provide Drawings → Design Review & Quotation → Order Processing → Quality Inspection → On-time Delivery → After-sales Follow-up
Our Advantages
Backed by over 25 years of engineering experience, our team offers comprehensive services—from customized mold design and precision machining to full-scale production—supported by a robust quality assurance system and proactive customer service. Certified under ISO9001, ISO14001, and IATF 16949, we continually strive for excellence in quality, innovation, and customer satisfaction.
Over 100,000 units in stock, with 2-hour shipment for standard products.
Implementing a three-stage inspection system—initial material check, in-process inspection, and final inspection.
Large inventory and quick turnaround, ensuring on-time delivery with 100% product inspection.
Application Range
The preferred choice across various industries.
FAQ
1. What is a Graphite Guide Bushing used for?
It is used in mold systems and machinery to provide oil-free sliding guidance and stable alignment between moving parts.
2. How does a Graphite Guide Bushing work?
It uses embedded graphite as a solid lubricant, allowing smooth motion without external oiling.
3. What materials are used in Graphite Guide Bushing?
It is typically made from bronze or copper alloy with graphite inserts for self-lubrication.
4. Where is Graphite Guide Bushing commonly applied?
It is widely used in stamping dies, injection molds, heavy machinery, and high-temperature equipment.
5. Does Graphite Guide Bushing require maintenance?
It requires very little maintenance because the graphite provides continuous self-lubrication during operation.
