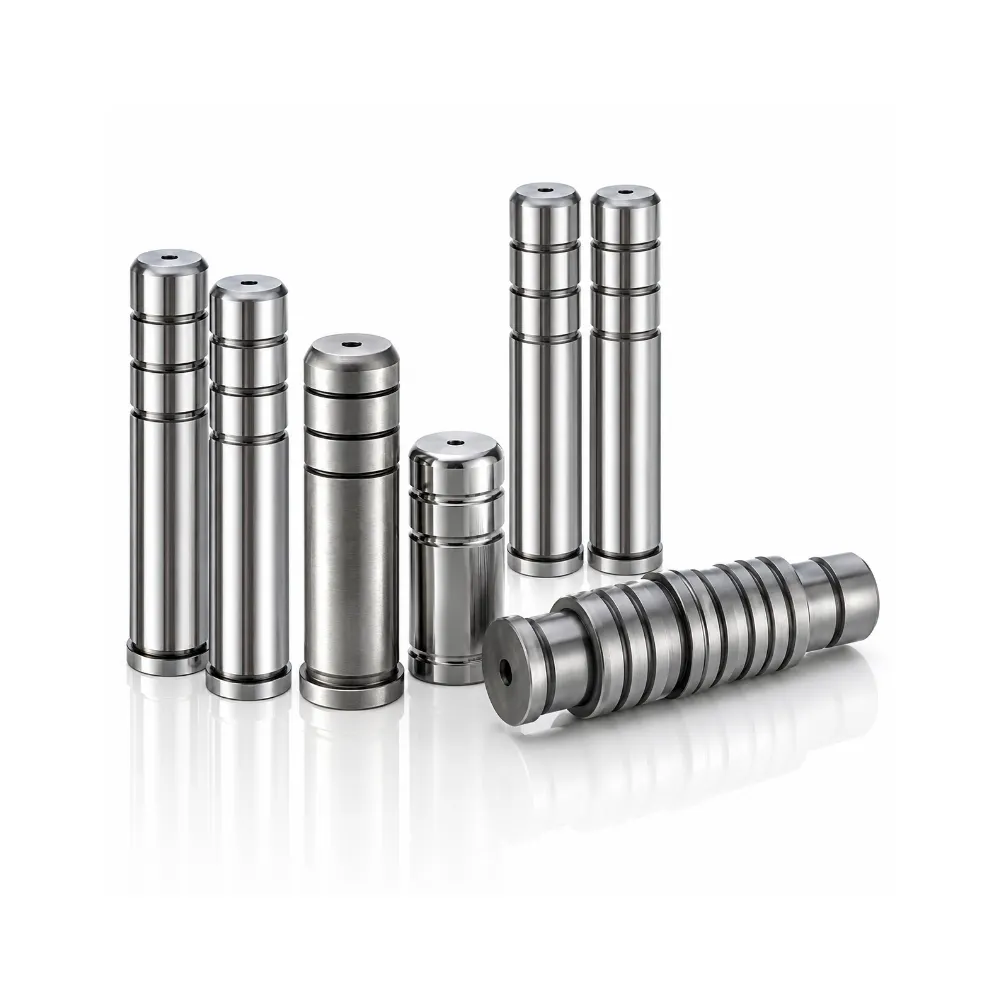

Precision Mold Guide Post
Precision Mold Guide Post is designed for tooling applications where exceptional alignment accuracy and stable guidance are required. Featuring a carefully controlled manufacturing process, it provides excellent dimensional consistency and smooth operational performance. The hardened steel construction enhances resistance to wear and mechanical stress, making it suitable for demanding production environments.
- Ensures Exceptional Alignment Accuracy: Maintains precise positioning in critical applications.
- Supports Tight Manufacturing Tolerance Requirements: Helps achieve consistent dimensional production results.
- Delivers Smooth Guidance Performance: Promotes stable movement during repeated operation.
- Suitable For Advanced Precision Tooling: Meets demanding industrial accuracy requirements.
Product Description
Introduction
Precision Mold Guide Post is a high-accuracy guiding component designed for injection molds, stamping dies, mold bases, and precision tooling systems. It plays a critical role in maintaining exact alignment between moving and stationary mold sections during operation. Accurate guidance helps minimize positioning errors, reduce component wear, and improve the consistency of finished products. Its precision-engineered design makes it an essential element in modern mold manufacturing and high-performance production environments.
Manufactured from premium-grade bearing steel such as SUJ2 or GCr15, the Precision Mold Guide Post undergoes advanced heat treatment, precision grinding, and polishing processes to achieve exceptional hardness, dimensional stability, and surface quality. The precision-ground surface ensures smooth interaction with guide bushings while reducing friction during repeated operating cycles. Its hardened construction provides outstanding wear resistance and long-term durability, supporting reliable performance in demanding industrial applications.
Precision Mold Guide Posts are widely used in automotive molds, consumer electronics tooling, medical device manufacturing, packaging systems, household appliance production, and industrial machinery. Available in multiple diameters, lengths, and tolerance grades, they can meet the requirements of various mold structures and production systems. OEM and custom manufacturing services are available to provide tailored solutions for customers seeking superior guiding accuracy and dependable operational performance.
Specifications
| Parameter | Specification |
|---|---|
| Product Name | Precision Mold Guide Post |
| Material | SUJ2 / GCr15 Bearing Steel |
| Surface Finish | Precision Ground & Polished |
| Hardness | HRC 58-62 |
| Diameter Range | Ø10 mm – Ø100 mm |
| Length Range | 50 mm – 1000 mm |
| Straightness | ≤0.003 mm/100 mm |
| Surface Treatment | Hard Chrome Optional |
| Guiding Type | Precision Linear Guidance |
| Installation Type | Press Fit |
| Precision Grade | Ultra High Precision |
| Operating Condition | Continuous Production |
| Service Life | Long-Term Industrial Use |
| Customization | OEM & ODM Available |
Three Key Customization Aspects, Tailored to Your Needs
Matching different customization methods to meet various requirements.
Precision Manufacturing, Excellent Quality
Superior Guiding Precision
Engineered to deliver exceptional alignment accuracy, helping maintain tight manufacturing tolerances and supporting high-quality production requirements across industries.
Optimized For Precision Tooling
Ideal for molds and tooling systems requiring advanced positioning performance, ensuring dependable operation in precision manufacturing applications.
Consistent Performance Under Repetition
Maintains guiding effectiveness throughout extensive production cycles, supporting stable operation and reducing variability in manufacturing processes.
High Accuracy Surface Engineering
Produced with advanced grinding and finishing techniques, providing excellent surface quality that contributes to smooth movement and reliable guidance.
Refined Service, Shortened Delivery Time
From design review to delivery, we provide dedicated one-on-one follow-up throughout the entire process.
Consultation → Provide Drawings → Design Review & Quotation → Order Processing → Quality Inspection → On-time Delivery → After-sales Follow-up
Our Advantages
Backed by over 25 years of engineering experience, our team offers comprehensive services—from customized mold design and precision machining to full-scale production—supported by a robust quality assurance system and proactive customer service. Certified under ISO9001, ISO14001, and IATF 16949, we continually strive for excellence in quality, innovation, and customer satisfaction.
Over 100,000 units in stock, with 2-hour shipment for standard products.
Implementing a three-stage inspection system—initial material check, in-process inspection, and final inspection.
Large inventory and quick turnaround, ensuring on-time delivery with 100% product inspection.
Application Range
The preferred choice across various industries.
FAQ
What is a Precision Mold Guide Post?
A Precision Mold Guide Post is a high-accuracy guiding component used in molds and dies to ensure precise alignment and smooth movement during production operations.
What materials are used for Precision Mold Guide Posts?
Precision Mold Guide Posts are commonly manufactured from premium bearing steel such as SUJ2 or GCr15, offering excellent hardness, wear resistance, and durability.
Where are Precision Mold Guide Posts applied?
They are widely used in injection molds, stamping dies, automotive tooling, medical device manufacturing, consumer electronics production, and other precision industrial applications.
Can Precision Mold Guide Posts be customized?
Yes. Custom diameters, lengths, tolerances, surface treatments, and material specifications can be produced according to customer drawings and technical requirements.
What are the benefits of using a Precision Mold Guide Post?
It helps improve alignment accuracy, reduce component wear, ensure smooth operation, maintain production consistency, and extend the service life of molds and tooling systems.
